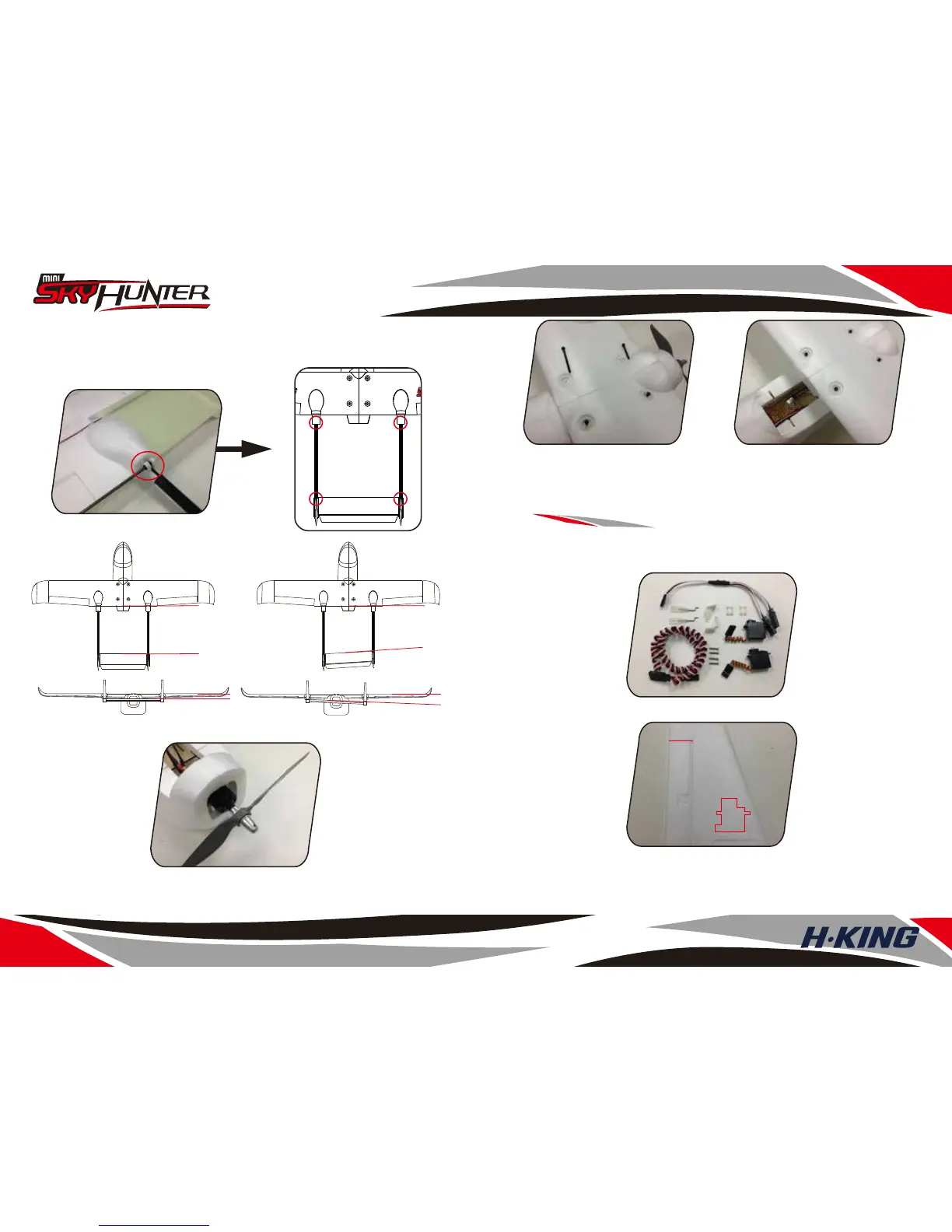

14) Attach wing to fuselage using M3 screws, using the shorter screws in the
aft mounting holes. If you plan to mount your receiver under the wing, we
suggest doing this now.
12) Tighten the four tail boom clamps. Check to make sure tail boom lengths
are the same, and that the horizontal stabilier is parallel to the wing. Use blue
thread lock to secure.
13) Attach propeller and prop adapter to motor. Propeller should have molded
lettering facing forward. Tighten propeller fully.
Correct - Wing/Tail Parallel Incorrect - Wing/Tail Not Parallel
To add functional rudders you will need 2 x 5g servos, servo extension,
Y-harness, and control hardware.
1) Start by cutting along molded servo cutout lines. Check your servo size
relative to this cutout as your servo may be smaller than template. Cut top of
rudder line to allow rudder to flex.
Optional
7
