Table4-11 QSFP+ to SFP+ cables available for the QSFP+ ports
QSFP+ to SFP+ cable Max transmission distance
LSWM1QSTK3 1 m (3.28 ft)
LSWM1QSTK4 3 m (9.84 ft)
LSWM1QSTK5 5 m (16.40 ft)
Table4-12 QSFP+ fiber cables available for the QSFP+ ports
QSFP+ to SFP+ cable Max transmission distance
QSFP-40G-D-AOC-3M 3 m (9.84 ft)
QSFP-40G-D-AOC-7M 7 m (22.97 ft)
QSFP-40G-D-AOC-10M 10 m (32.81 ft)
QSFP-40G-D-AOC-20M 20 m (65.62 ft)

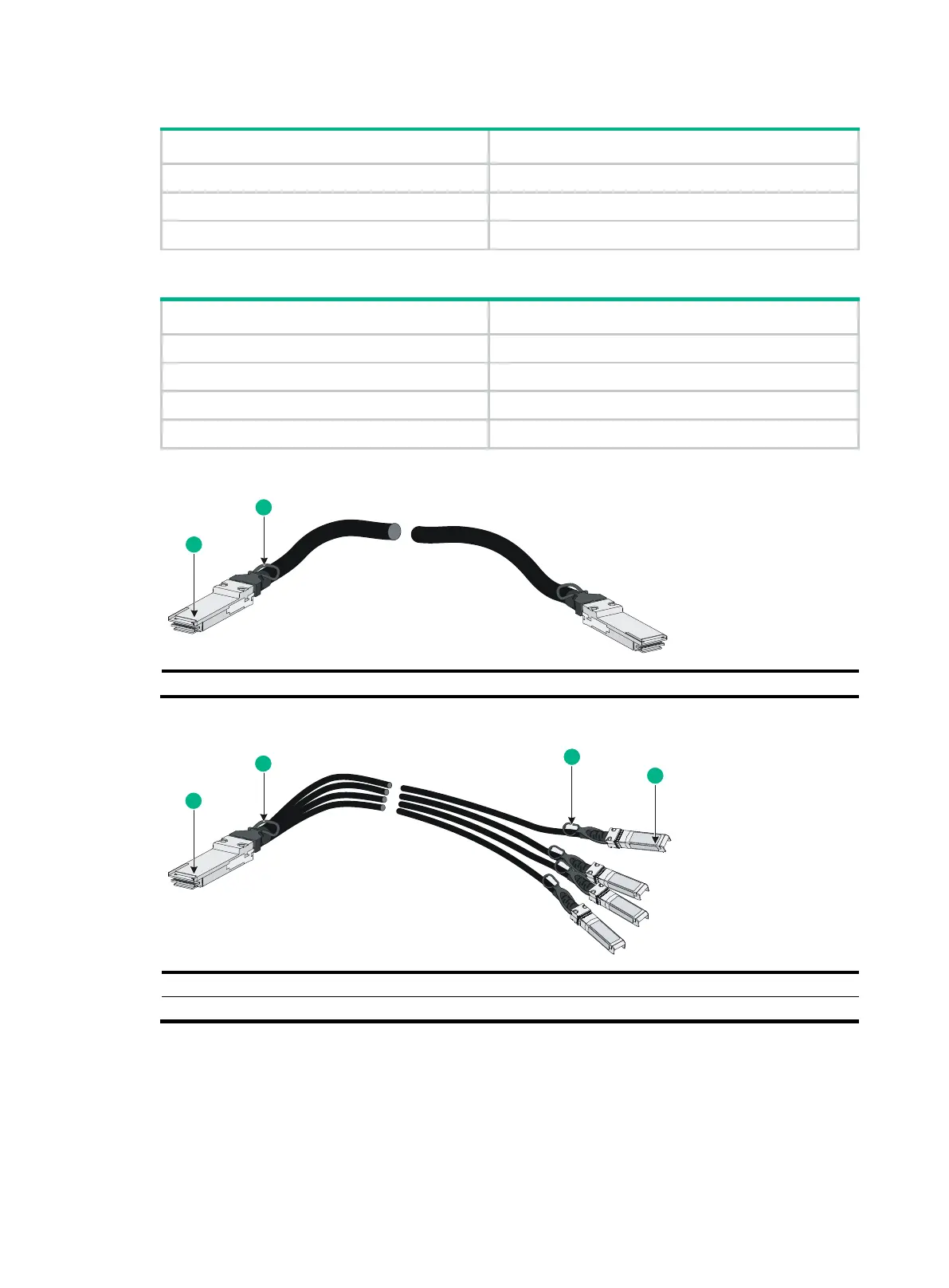

Figure4-3 40G QSFP+ cable
(1) QSFP+ module
(2) Pull latch
Figure4-4 40G QSFP+ to SFP+ cable
(1) QSFP+ module
(2) QSFP+ module side pull latch
(3) SFP+ module side pull latch
(4) SFP+ module
