H3C S6850-56HF Installation, Quick Start

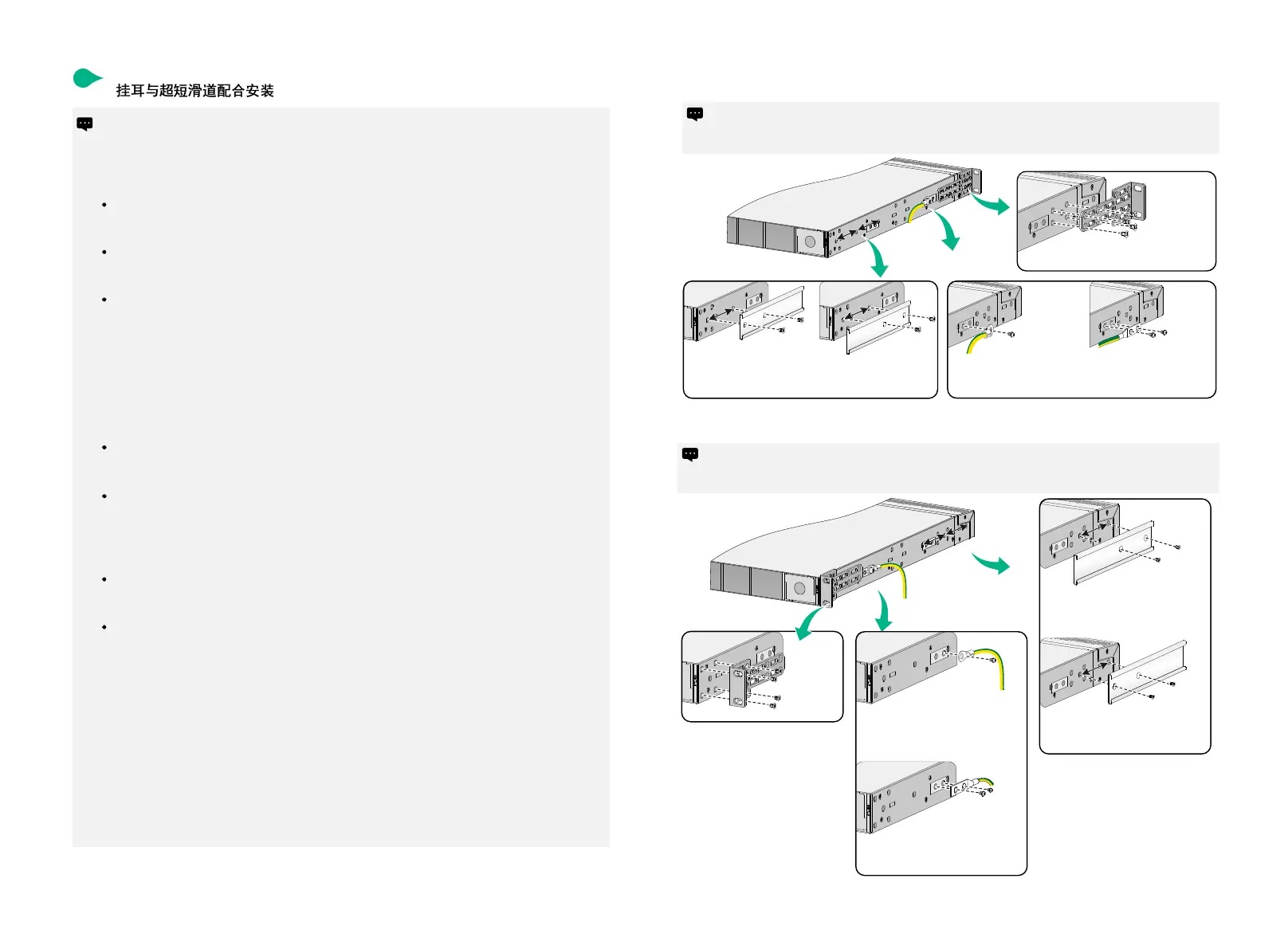

Mounting brackets installed near the power module side
挂耳安装在靠近电源侧
Install the chassis rails at c or d. The chassis rails can be installed reaching out of the chassis or not
reaching out of the chassis.
挂耳安装在靠近电源侧时，滑道导轨可安装在c或d任意一处，可采用正装方式，也可采用反装方式。
4
Installing the mounting brackets and super-short slide rails
2
For LS-6850-56HF, LS-6850-56HF-H1 and S6850-56HF-SAN switches,If the rack depth is in the
range of 401 to 692 mm (15.79 to 27.24 in), purchase long chassis rails and super-short slide rails
Yourself for installation.
对于LS-6850-56HF、LS-6850-56HF-H1和S6850-56HF-SAN交换机
，如果机柜前后方孔条间距在
401～692mm范围内，请使用选配的超短滑道长导轨配合安装。
Not reaching out of the chassis for a rack with the depth in the range of 401 to 498 mm
(15.79 to 19.61 in).
当机柜前后方孔条间距在401～498mm范围内，请使用长导轨正装方式安装。
Not reaching out or reaching out of the chassis for a rack with a depth in the range of 499 To
565 mm (19.66 to 22.24 in).
当机柜前后方孔条间距在499～565mm范围内，长导轨正装和反装都可以。
Reaching out of the chassis for a rack with the depth in the range of 566 to 692 mm
(22.28 to 27.24 in).
当机柜前后方孔条间距在566～692mm范围内，请使用长导轨反装方式安装。
For LS-6850-56HF-H3 switch,If the rack depth is in the range of 343 to 612 mm (13.50 to 24.1 in),
purchase long chassis rails and super-short slide rails Yourself for installation.
对于LS-6850-56HF-H3
，如果机柜前后方孔条间距在343～612mm范围内，请使用选配的超短滑道
长导轨配合安装。
Mounting brackets installed Near the power module side :
挂耳安装在电源侧：
Not reaching out of the chassis for a rack with the depth in the range of 343 to 440 mm (13.5 to
17.32 in).
当机柜前后方孔条间距在343～440mm范围内，请使用长导轨正装方式安装。
Not reaching out of the chassis for a rack with the depth in the range of 439 to 547 mm (17.28
to 22.60 in).
当机柜前后方孔条间距在439～547mm范围内，请使用长导轨反装方式安装。
Mounting brackets installed Near the port side :
挂耳安装在端口侧：
Not reaching out of the chassis for a rack with the depth in the range of 397 to 505 mm
(15.63 to 19.88 in).
当机柜前后方孔条间距在397～505mm范围内，请使用长导轨正装方式安装。
Not reaching out of the chassis for a rack with the depth in the range of 504 to 612 mm
(19.84 to 24.1 in).
当机柜前后方孔条间距在504～612mm范围内，请使用长导轨反装方式安装。
For device stability, make sure the minimum length of the slide rails that slide into the chassis rails
is 110 mm (4.33 in) for an LS-6850-56HF-H3 switch and 90 mm (3.54 in) for a switch other than
the LS-6850-56HF-H3.
为保证设备安装后的稳定性，当滑道与滑道导轨安装完成后，请确保LS-6850-56HF-H3机型滑道的
头部进入滑道导轨的最小深度为110mm，其他机型最小深度为90mm。
The device uses M5 grounding screws. You can use a grounding cable with a single-hole or dual-hole
grounding lug to ground the device. If the grounding cable or grounding lug you receive does not meet
the requirement, you can make a grounding cable on site or contact H3C Technical Support.
设备侧接地点支持单孔端子和双孔端子的接地电缆安装，接地螺钉为M5螺钉。如果您收到设备的接地
电缆长度或者端子类型不满足要求，可以现场制作合适的线缆解决或者联系H3C技术支持解决。
a
b
（chassis rail not reaching
out of the chassis）
正装
（chassis rail reaching out
of the chassis）
反装
a
a
3
（ Connect a grounding cable
with a dual-hole lug）
安装双孔接地端子地线
（Connect a grounding cable
with a single-hole lug）
安装单孔接地端子地线
c
d
（chassis rail not reaching out
of the chassis）
正装
（chassis rail reaching out
of the chassis）
反装
d
d
（ Connect a grounding cable with
a single-hole lug）
安装单孔接地端子地线
（ Connect a grounding cable with
a dual-hole lug）
安装双孔接地端子地线
Install the chassis rails at a or b. The chassis rails can be installed reaching out of the chassis or not
reaching out of the chassis.
挂耳安装在靠近端口侧时，滑道导轨可安装在a或b任意一处，可采用正装方式，也可采用反装方式。
Mounting brackets installed near the port side
挂耳安装在靠近端口侧
