44

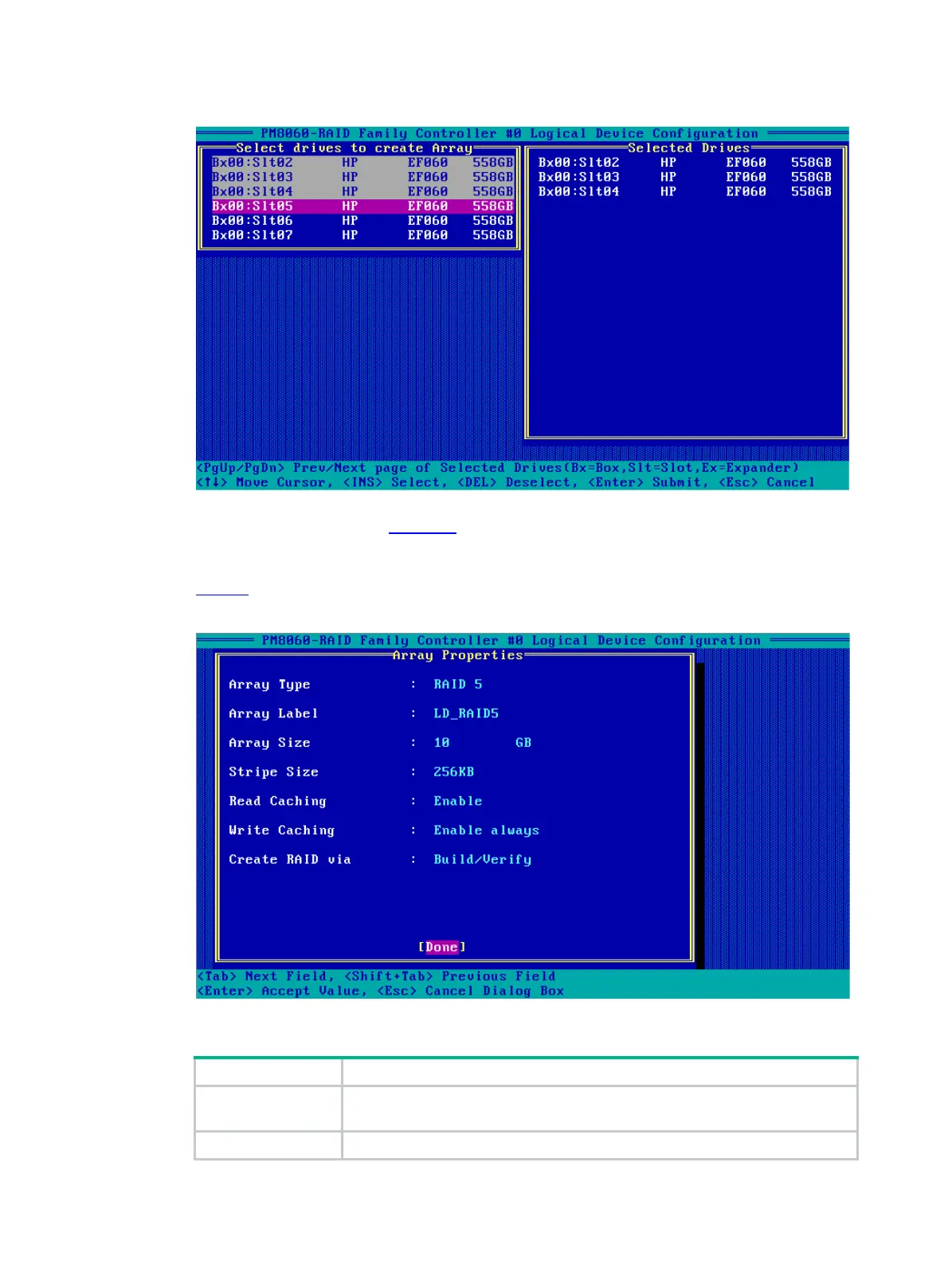

Figure 74 Selecting drives
4. On the screen as shown in Figure 75, set the Array Type, Array Label, Array Size, Stripe
Size, Read Caching, Write Caching, and Create RAID via parameters, select Done, and
press Enter.
Table 8 describes the parameters.
Figure 75 Setting RAID parameters
Table 8 Configuration parameters
Array Type
Select a RAID level, which determines the performance, fault tolerance
capability, and capacity of the logical drive.
Array Label RAID array name, which must be manually entered.
