H3C UniServer R4700 G3

14

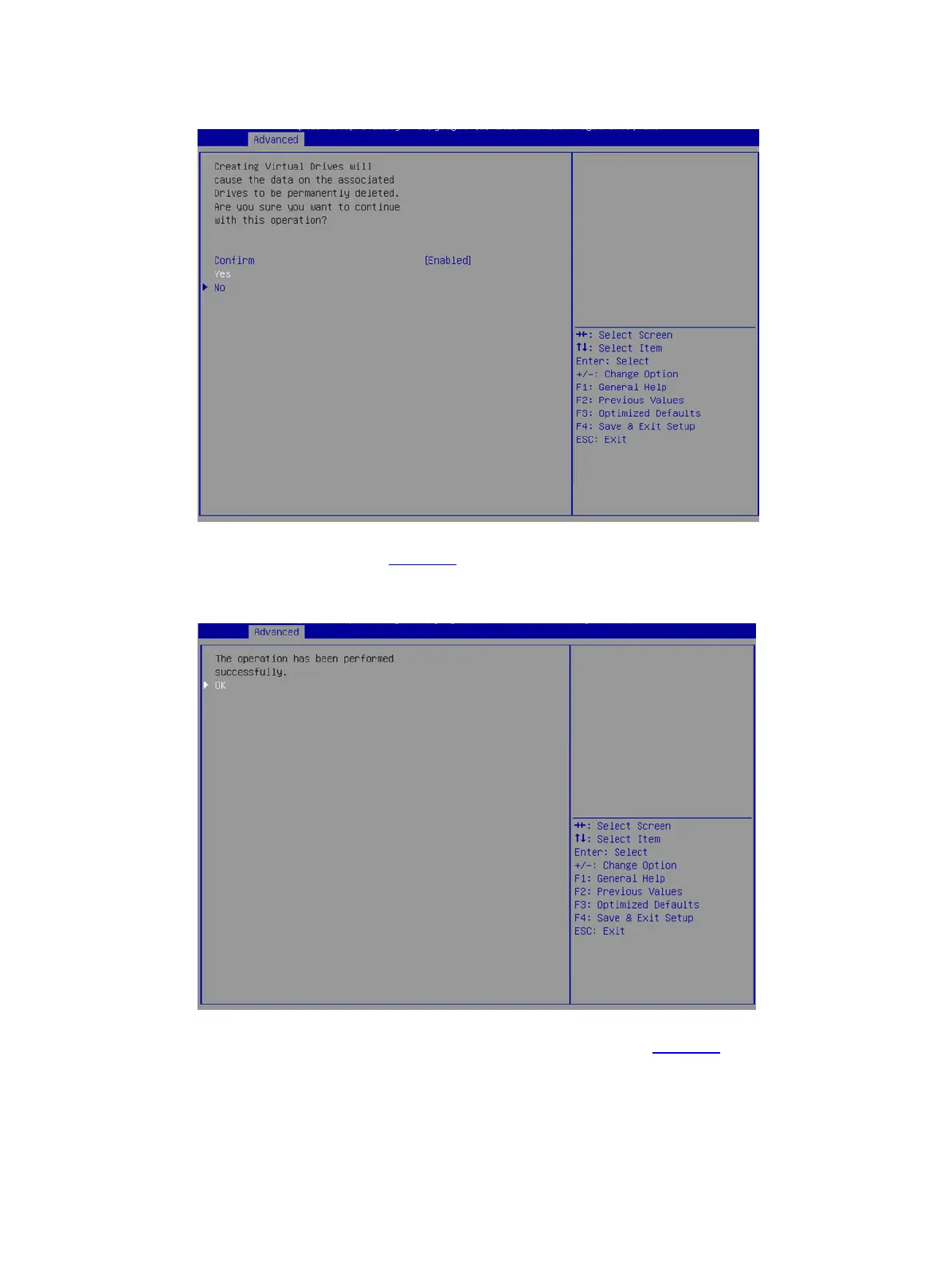

Figure 17 Confirming the configuration
9. On the screen as shown in Figure 18, select OK to return to the storage controller
configuration screen.
Figure 18 Completing RAID array configuration
10. Select Virtual Drive Management and press Enter as shown in Figure 19.
