Quick Start

The Quick Start wizard leads you through basic configuration procedures to quickly make your device

available for use.

Quick Start wizard home page

From the navigation tree, select Quick Start to enter the home page of the Quick Start wizard.

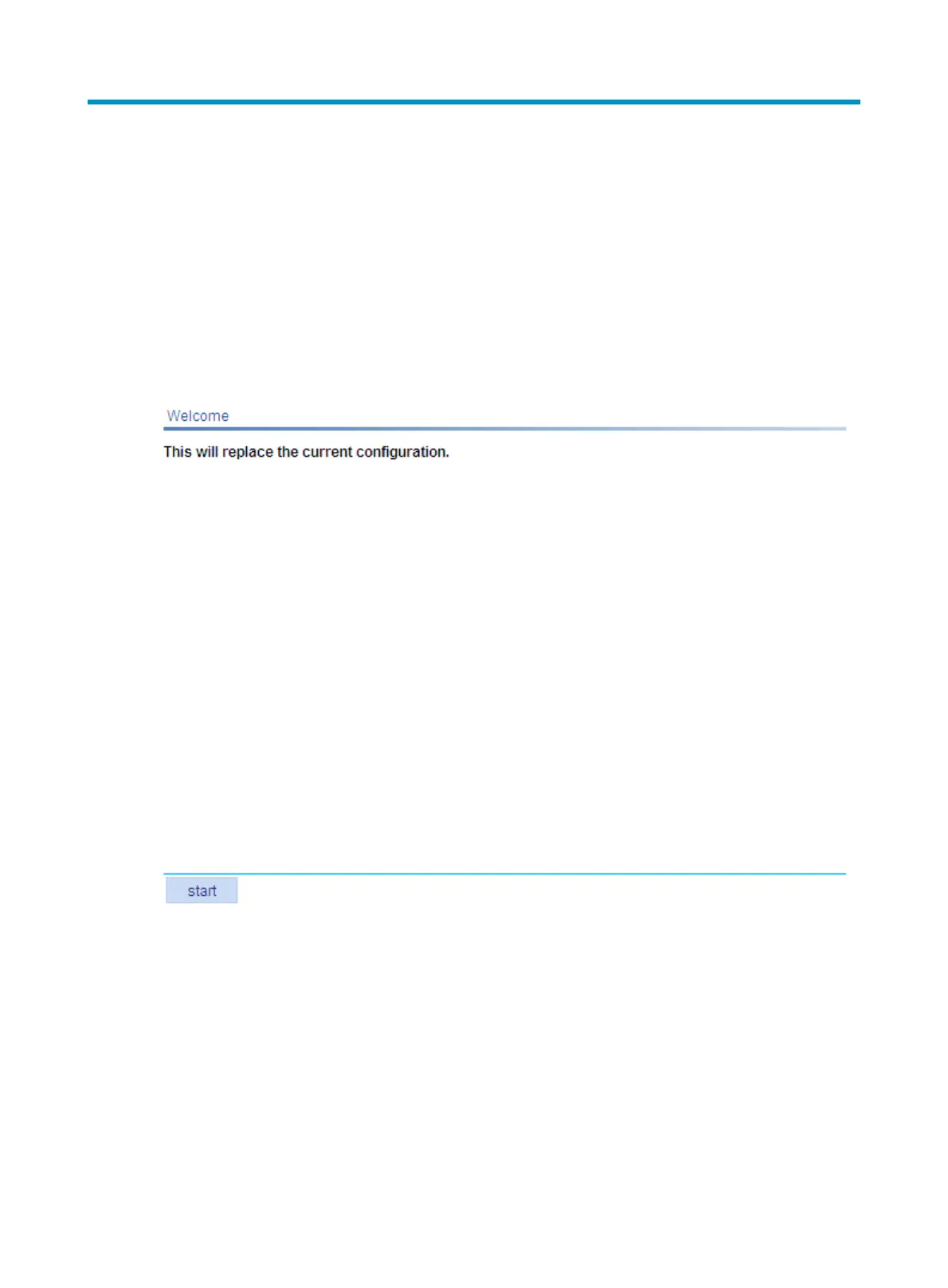

Figure 1 Home page of the Quick Start wizard

Basic configuration

1. On the home page of the Quick Start wizard, click start.

The basic configuration page appears.

Documentation Set4
Obtaining Documentation5
Technical Support5
Documentation Feedback5
Table of Contents6
About the WA Series Access Points Web-Based Configuration Guide14
- Applicable Models and Software Versions14
- Feature Matrix14
Quick Start16
- Quick Start Wizard Home Page16
- Basic Configuration16
- Admin Configuration17
- IP Configuration18
- Wireless Configuration19
- RADIUS Configuration20
- Encryption Configuration22
- Radio Configuration24
- Configuration Summary25
- Quick Start Configuration Examples25
Summary33
- Device Information33
- Displaying WLAN Service35
- Displaying Radio39
  - Displaying WLAN Services Bound to a Radio39
  - Displaying Detailed Radio Information39
- Displaying WDS42
- Displaying Client43
Device Basic Information Configuration48
- Configuring Device Basic Information48
  - Configuring System Name48
  - Configuring Web Idle Timeout Period48
Device Maintenance Configuration50
- Software Upgrade50
- Reboot51
- Diagnostic Information52
System Time Configuration54
- Displaying the System Time54
- Configuring the System Time55
Log Management Configuration56
- Displaying Syslog56
- Setting the Log Host57
- Setting Buffer Capacity and Refresh Interval58
Configuration Management60
- Backing up Configuration60
- Restoring Configuration60
- Saving Configuration61
- Initializing Configuration62
File Management Configuration63
- Displaying File List63
- Downloading a File63
- Uploading a File64
- Removing a File64
- Specifying the Main Boot File64
Interface Management Configuration65
- Displaying Interface Information and Statistics65
- Creating an Interface67
- Modifying a Layer 2 Interface69
- Modifying a Layer 3 Interface72
- Interface Management Configuration Example74
TR-069 Configuration76
- Configuration Guidelines78
User Management Configuration79
- Creating a User79
- Setting the Super Password80
- Switching the User Access Level to the Management Level81
SNMP Configuration82
- SNMP Overview82
- Configuration Task List82
- Enabling SNMP84
- Configuring an SNMP View85
  - Creating an SNMP View85
  - Adding Rules to an SNMP View87
- Configuring an SNMP Community87
- Configuring an SNMP Group88
- Configuring an SNMP User90
- Configuring SNMP Trap Function92
- Displaying SNMP Packet Statistics94
- SNMP Configuration Example94
Loopback Configuration100
- Loopback Operation100
- Configuration Guidelines101
MAC Address Configuration102
- Configuring a MAC Address Entry103
- Setting the Aging Time of MAC Address Entries104
- MAC Address Configuration Example105
VLAN Configuration107
- Overview107
- Recommended Configuration Procedure107
- Creating a VLAN108
- Modifying a VLAN108
- Modifying a Port109
- VLAN Configuration Example111
- Configuration Guidelines112
ARP Configuration114
- Overview114
  - Introduction to ARP114
  - Introduction to Gratuitous ARP114
- Displaying ARP Entries114
- Creating a Static ARP Entry115
- Removing ARP Entries116
- Configuring Gratuitous ARP116
- Static ARP Configuration Example117
IGMP Snooping Configuration118
- Recommended Configuration Procedure119
- Enabling IGMP Snooping Globally119
- Configuring IGMP Snooping on a VLAN120
- Configuring IGMP Snooping on a Port121
- Displaying IGMP Snooping Multicast Entry Information123
- IGMP Snooping Configuration Example124
Ipv4 and Ipv6 Routing Configuration127
- Overview127
- Displaying the Ipv4 Active Route Table127
- Creating an Ipv4 Static Route128
- Displaying the Ipv6 Active Route Table130
- Creating an Ipv6 Static Route131
- Ipv4 Static Route Configuration Example132
- Ipv6 Static Route Configuration Example134
- Configuration Guidelines136
DHCP Overview137
- Recommended Configuration Procedure137
- Enabling DHCP138
- Creating a Static Address Pool for the DHCP Server138
- Creating a Dynamic Address Pool for the DHCP Server140
- Enabling the DHCP Server on an Interface142
- Display the Information of Assigned IP Addresses142
- DHCP Server Configuration Example143
DNS Configuration146
- Overview146
  - Static Domain Name Resolution146
  - Dynamic Domain Name Resolution146
- Recommended Configuration Procedure146
  - Configuring Static Name Resolution Table146
  - Configuring Dynamic Domain Name Resolution147
- Configuring Static Name Resolution Table147
- Configuring Dynamic Domain Name Resolution148
- Adding a DNS Server Address148
- Adding a Domain Name Suffix149
- Clearing Dynamic DNS Cache149
- DNS Configuration Example149
Pppoe154
- Overview154
- Configuring Pppoe Client154
- Displaying Pppoe Client Session Statistics156
- Displaying Pppoe Client Session Summary Information157
- Pppoe Client Configuration Example158
- Configuration Guidelines160
Service Management161
- Overview161
- Configuring Service Management162
Diagnostic Tools164
- Overview164
  - Ping164
  - Trace Route164
- Ping Operation165
  - Ipv4 Ping Operation165
  - Ipv6 Ping Operation166
- Trace Route Operation168
Web Overview170
- Logging in to the Web Interface170
- Logging out of the Web Interface171
- Introduction to the Web Interface171
- Web User Level172
- Introduction to the Web-Based NM Functions172
- Common Web Interface Elements180
- Configuration Guidelines184
- Troubleshooting Web Browser185
  - Failure to Access the Device through the Web Interface185
Radio Configuration188
- Configuring Radio188
- Configuring Data Transmit Rates192
  - Configuring 802.11A/802.11B/802.11G Rates192
  - Configuring 802.11N MCS193
- Configuring Calibration196
  - Channel Calibration Information196
  - Parameter Setting197
- Configuring Channel Scanning199
  - Configuring Channel Scanning Parameters199
  - Configuring AP Operating Mode201
- Configuring Channel Detection203
AAA Configuration206
- AAA Overview206
- Configuring AAA207
- AAA Configuration Example213
RADIUS Configuration217
- RADIUS Overview217
- Configuring a RADIUS Scheme217
- RADIUS Configuration Examples223
- Configuration Guidelines230
HWTACACS Configuration232
- HWTACACS Overview232
- Configuring HWTACACS232
- HWTACACS Configuration Example237
- Configuration Guidelines242
User Configuration244
- User Overview244
- Configuring a Local User244
- Configuring a User Group247
- Configuring a Guest248
  - Procedure for a Management Level Administrator to Configure a Guest248
  - Procedure for a Guest Administrator to Configure a Guest250
Certificate Management251
- PKI Overview251
- Configuring PKI251
- PKI Configuration Example262
- Configuration Guidelines267
Wireless Service268
- Access Service268
- Introduction to WDS275
  - Advantages of WDS275
  - WDS Network Topologies275
- Repeater Mode Overview277
- Workgroup Bridge Mode Overview277
Configuring Wireless Service279
- Configuring Access Service279
- Configuring WDS Service298
- Configuring the Repeater Service303
- Configuring the Workgroup Bridge304
- Wireless Access Configuration Examples307
- WDS Configuration Examples350
  - WDS Configuration Example350
  - WDS Point-To-Multipoint Configuration Example353
- Repeater Mode Configuration Example354
- Workgroup Bridge Mode Configuration Example358
Configuring ACL and Qos362
- Overview362
  - Introduction to ACL362
  - Introduction to Qos362
- Configuring an ACL363
- Configuring Priority Mapping378
  - Overview378
  - Configuration Procedure378
- Configuring a Qos Policy380
- Acl/Qos Configuration Example393
- Configuration Guidelines402
Configuring Wireless Qos403
- Overview403
  - Terminology403
  - WMM Protocol Overview404
- Enabling Wireless Qos405
- Setting the SVP Service406
- Setting CAC Admission Policy407
- Setting Radio EDCA Parameters for Aps407
- Setting EDCA Parameters for Wireless Clients409
- Displaying Radio Statistics410
- Displaying Client Statistics412
- Setting Rate Limiting413
- Configuring the Bandwidth Guarantee Function414
- Wireless Qos Configuration Examples417
Advanced Settings424
- Advanced Settings Overview424
- Configuring WLAN Advanced Settings426
- Advanced Settings Configuration Examples434
  - Band Navigation Configuration Example434
  - Multicast Optimization Configuration Example436
WLAN Security Configuration438
- WLAN Security Overview438
  - WIDS Attack Detection438
  - Blacklist and White List439
- Configuring WIDS439
  - Displaying History Record440
  - Displaying Statistics Information440
- Configuring the Blacklist and White List Functions441
User Isolation444
- Configuring User Isolation444
Index445

H3C WA2600 Enhanced Series User Manual

Table of Contents

Other manuals for H3C WA2600 Enhanced Series
