13

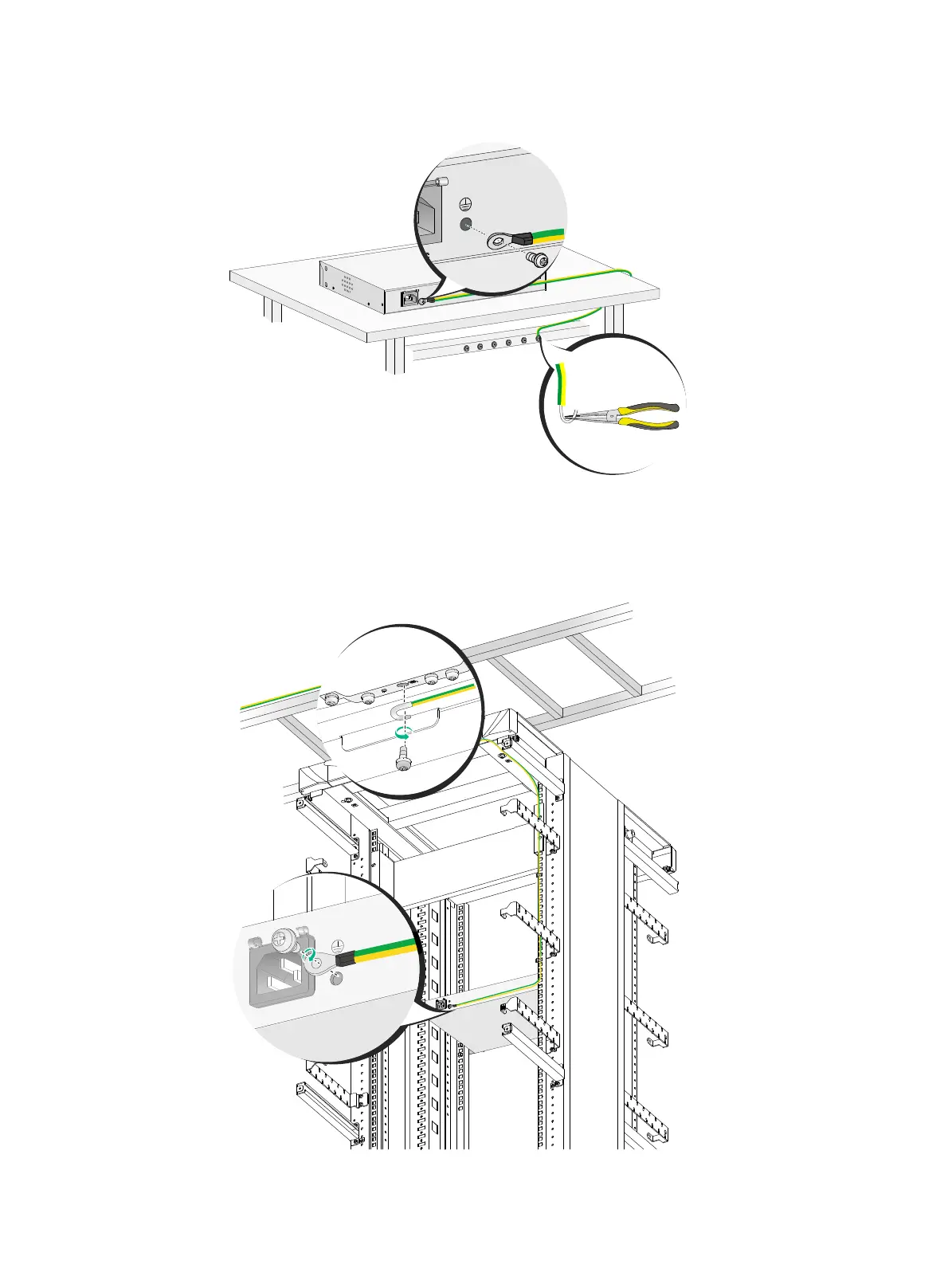

Figure 9 Grounding the device
w
ith a grounding strip (WX3508H)
{
Grounding the device
w
ith the rack
—Connect the other end of the grounding cable to the
grounding point on the ra
ck and make sure the rack has been reliably ground
ed.
Figure 10 Grounding the device
w
ith the rack (WX3508H)
19
21
Table of Contents
Default Chapter
6
Table of Contents
6
Preparing for Installation
8
Safety Recommendations
8
Safety Symbols
8
General Safety Recommendations
8
Electrical Safety
8
Laser Safety
9
Examining the Installation Site
9
Temperature and Humidity
9
Cleanliness
9
Cooling
10
ESD Prevention
10
Emi
11
Lightning Protection
12
Installation Accessories
12
Installation Tools
13
Pre-Installation Checklist
13
Installing the Device
15
Confirming Installation Preparations
15
Installation Flow
16
Mounting the Device on a Workbench
16
Installing the Device in a 19-Inch Rack
17
Mounting Brackets
17
Mounting the Device in a Rack
17
Grounding the Device
19
(Optional) Installing Network Port Lightning Protectors
21
(Optional) Installing a Surge Protected Power Strip
22
Connecting Interface Cables
22
Connecting the Console Cable and Setting Terminal Parameters
22
Connecting Ethernet Cables
23
Installing a Power Module
24
Connecting an AC Power Cord
25
Connecting a DC Power Cord
25
Verifying the Installation
26
Powering on the Device
26
Troubleshooting
29
Power Module Failure
29
Symptom
29
Solution
29
No Display or Garbled Display on the Configuration Terminal
29
Software Loading Failure
30
Symptom
30
Solution
30
Hardware Management and Maintenance
31
Displaying Hardware Information for the Device
31
Displaying Operational Statistics for the Device
31
Displaying Information about the Device
33
Displaying the Electronic Label Data for the Device
33
Displaying the CPU Usage of the Device
33
Displaying the Memory Usage of the Device
34
Displaying the Operational Status of the Built-In Fans
34
Displaying the Operating State of Power Modules
35
Rebooting the Device
35
Restrictions and Guidelines
35
Configuration Procedure
36
Appendix A Chassis Views and Technical Specifications
37
Chassis Views
37
Wx3508H
37
Wx3510H
37
Wx3520H
38
Wx3540H
39
Power Module Views
39
AC Power Module
39
DC Power Module
40
Interface Numbering
40
Wx3508H
40
Wx3510H
40
WX3520H and WX3540H
40
Technical Specifications
41
Wx3508H
41
Wx3510H
41
Wx3520H
42
Wx3540H
42
AC Power Module
43
DC Power Module
43
Transceiver Module, Fiber Connector, and Optical Fiber Views
43
Transceiver Module Specifications
44
Appendix B Leds
49
Leds
49
LED Description
51
