Appendix A Chassis views and technical
specifications

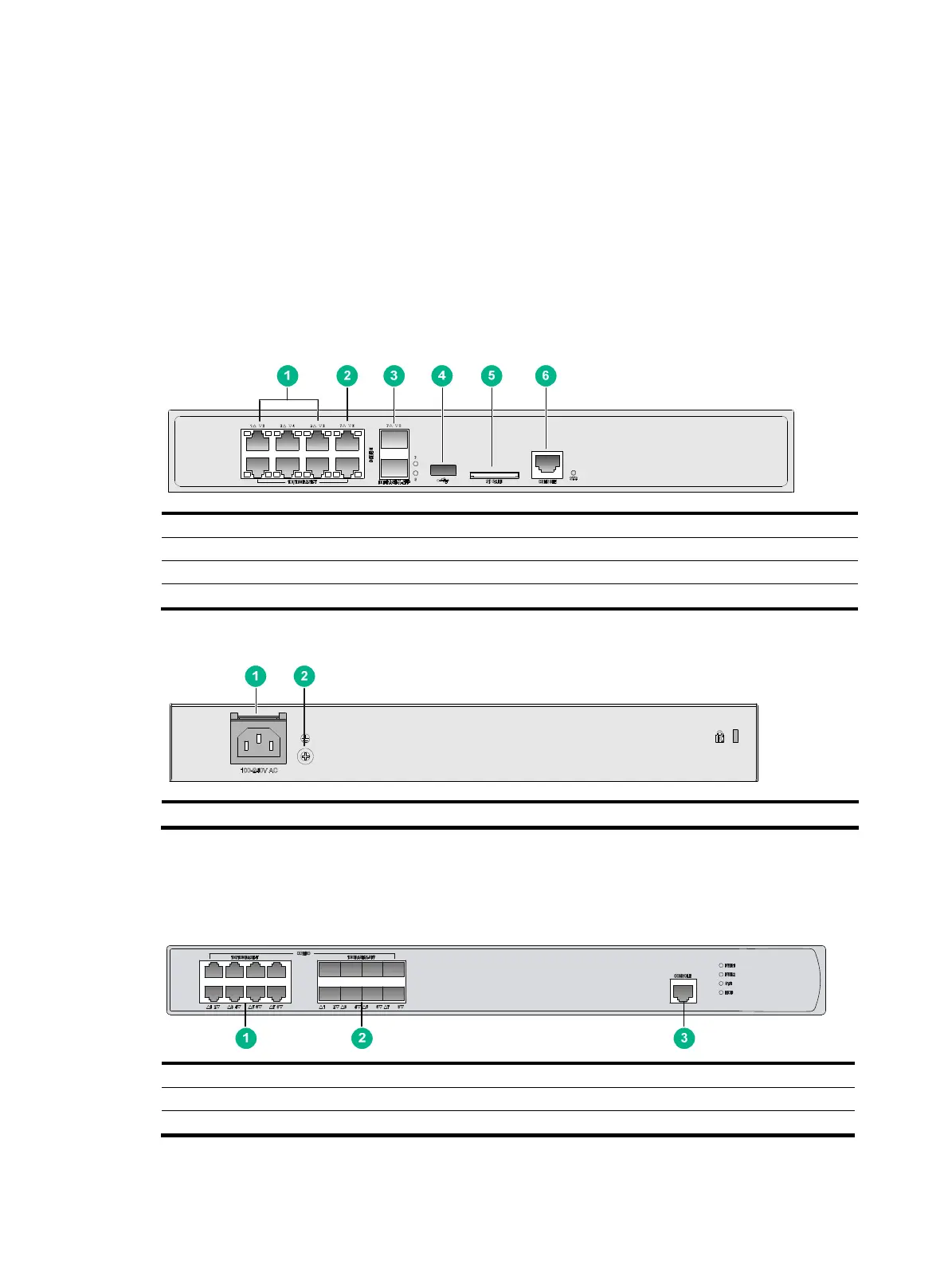

Chassis views
WX3508H
Figure 18 Front panel
(1) 100/1000BASE-T autosensing Ethernet copper ports 1 through 6
(2) 100/1000BASE-T autosensing Ethernet copper ports 7 and 8 (combo interfaces)
(3) 1000BASE-X SFP ports 7 and 8 (combo interfaces)
(4) USB port (5) SD card slot (6) Console port
Figure 19 Rear panel
(1) AC power receptacle (2) Grounding screw
WX3510H
Figure 20 Front panel
(1) 100/1000BASE-T autosensing Ethernet copper ports 1 through 8 (combo interfaces)
(2) 100BASE-FX/1000BASE-X SFP ports 1 through 8 (combo interfaces)
(3) Console port
