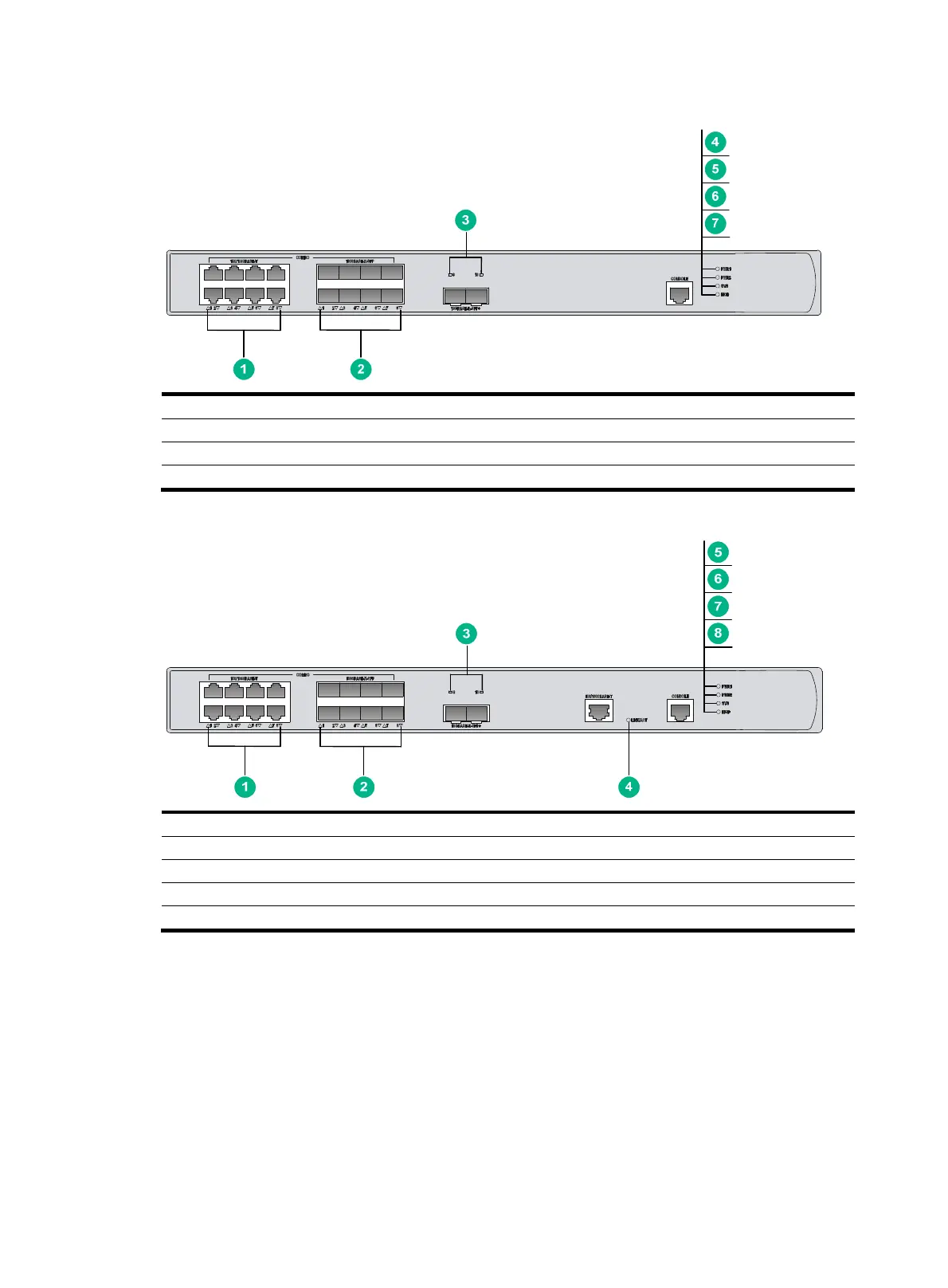

Figure 33 WX3520H LEDs

(1) 100/1000BASE-T autosensing Ethernet copper port status LEDs

(2) 100BASE-FX/1000BASE-X SFP port status LEDs (3) 10GBASE-R SFP+ port status LEDs

(4) Power module 1 status LED (PWR1) (5) Power module 2 status LED (PWR2)

(6) System status LED (SYS) (7) Expansion card status LED (MOD)

Figure 34 WX3540H LEDs

(1) 100/1000BASE-T autosensing Ethernet copper port status LEDs

(2) 100BASE-FX/1000BASE-X SFP port status LEDs (3) 10GBASE-R SFP+ port status LEDs

(4) 100/1000BASE-T out-of-band management Ethernet port status LED (LINK/ACT)

(5) Power module 1 status LED (PWR1) (6) Power module 2 status LED (PWR2)

(7) System status LED (SYS) (8) Expansion card status LED (MOD)
