Mounting Instructions
37

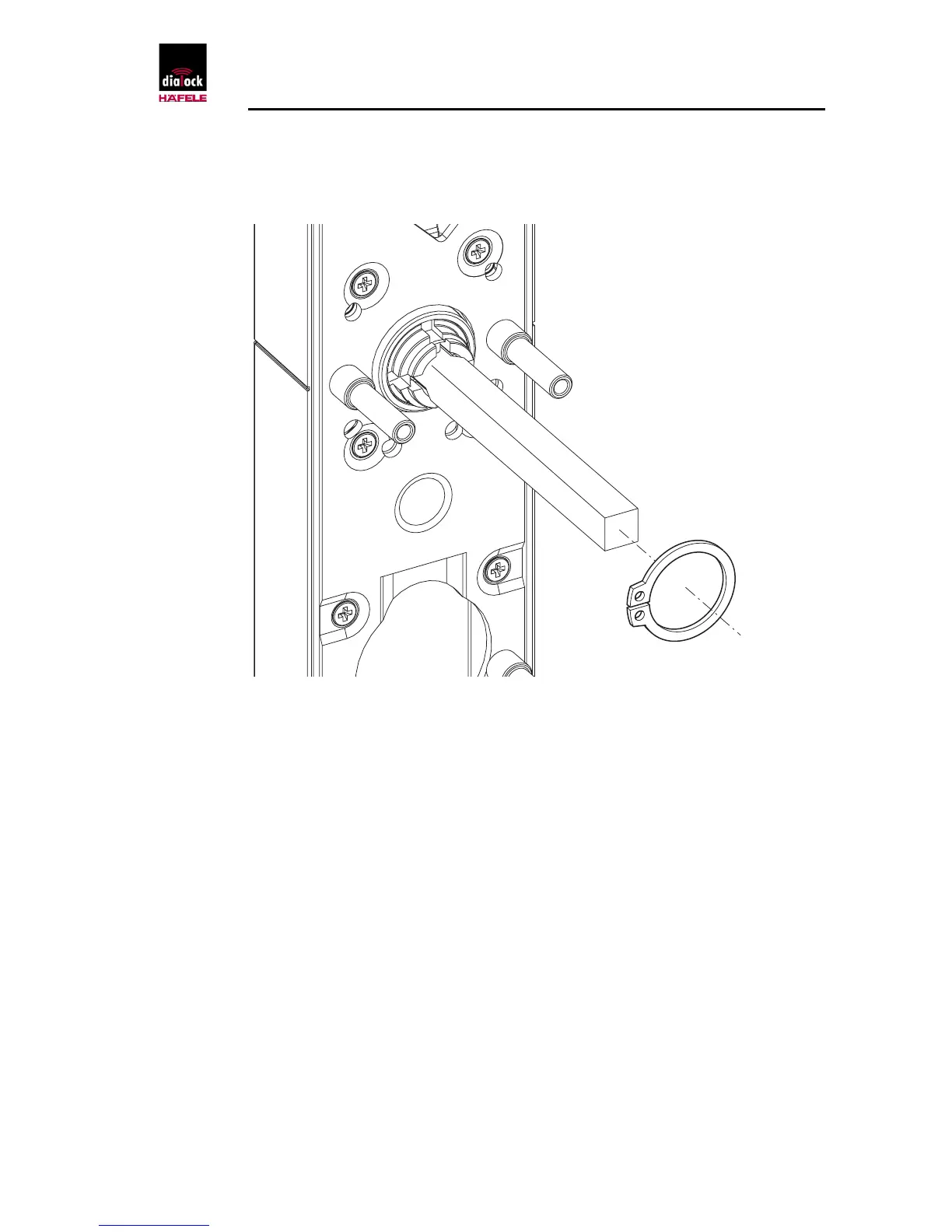

Mounting the square spindle
1. Insert the square spindle in the inner coupling component in such
a way that the pins are located in the cavities of the coupling
component.
2. Using the retaining ring pliers, insert the retaining ring in the slot
of the inner coupling component. In the process, ensure that the
opening of the retaining ring is not lying over any of the upper
square spindle pins.
This completes the square spindle mounting process.
