Häfele dialock User Manual

Mounting Instructions
38
Mounting the Door Terminal Basic
The following steps are necessary for mounting the Door Terminal
Basic :
•
drilling holes for the rosette fittings and guiding pins
•
attaching the Door Terminal Basic
•
attaching the rosette fittings
•
setting up the Door Terminal Basic for operation
Mounting on wooden doors is described below.
Condensation forming on cold components can damage the
Door Terminal Basic.
Ö
Ensure that all components are at room temperature.

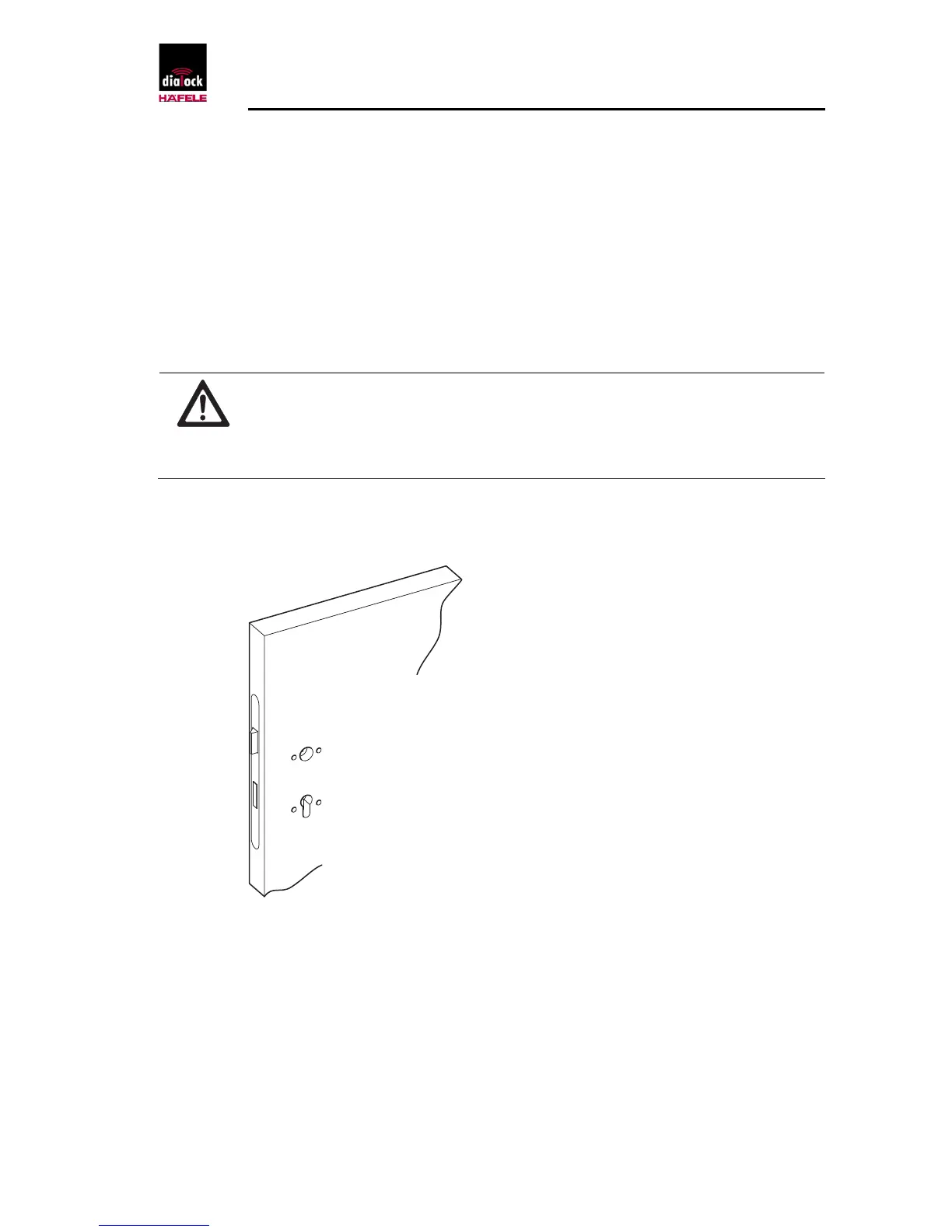

Drilling the holes for the rosette fittings and guiding pins
1. Lay the drill template, with the mandril for the lock spindle, on the
door leaf.
2. Drill holes in the door leaf on both sides using the appropriate drill
bit (Ø = 6 mm or Ø = 7 mm).
