Häfele dialock User Manual

Mounting Instructions
41

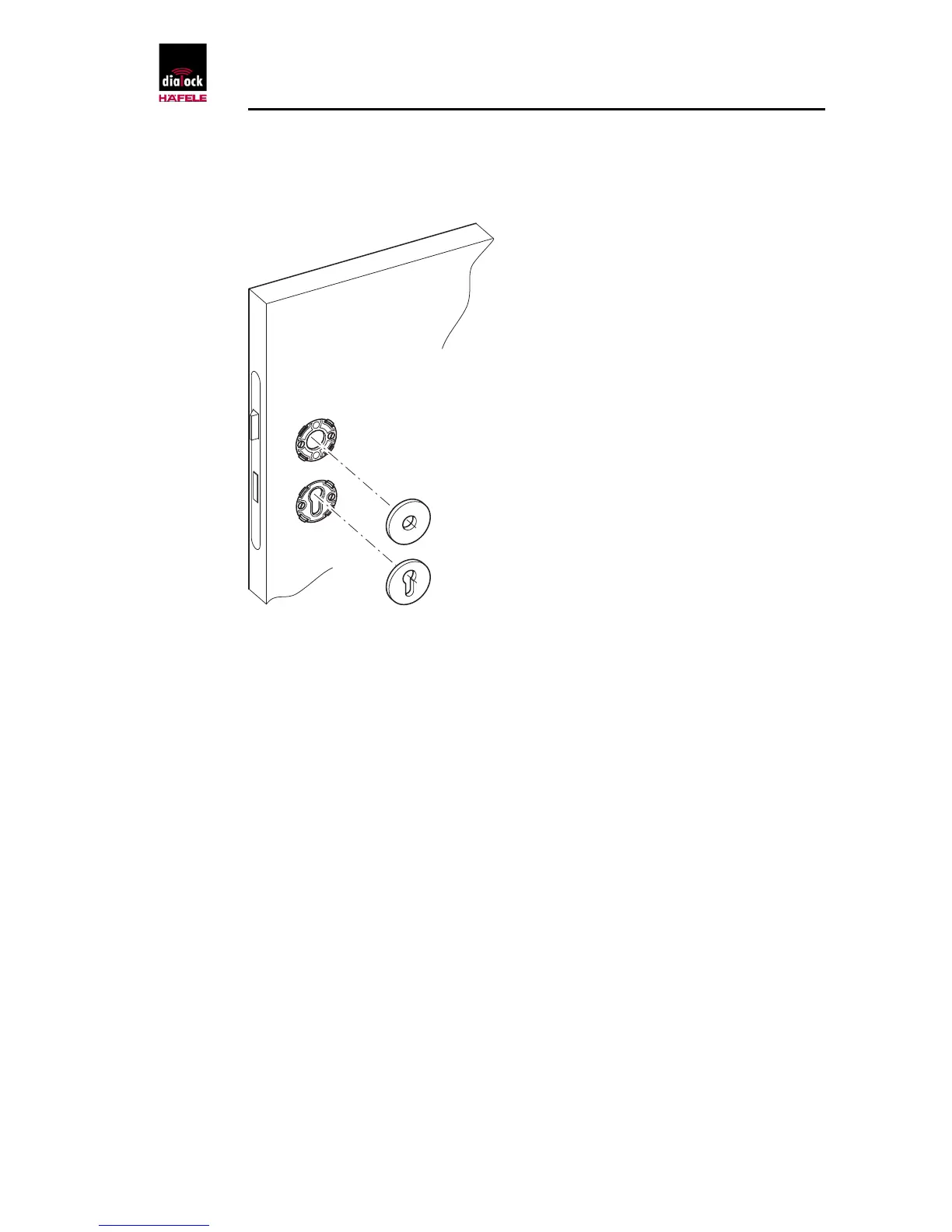

Attaching the rosette fittings
1. Place the ornamental plates of the rosette fittings on the bolting
elements in such a way that they snap into place.
2. Place the door handle on the square spindle in such a way that
the set screws point in the direction of the strike.
3. Tighten the set screws.
4. Install the profile cyclinder, if available.
The rosette fittings have been attached.
