Mounting Instructions
42
Setting up the Door Terminal Basic for operation

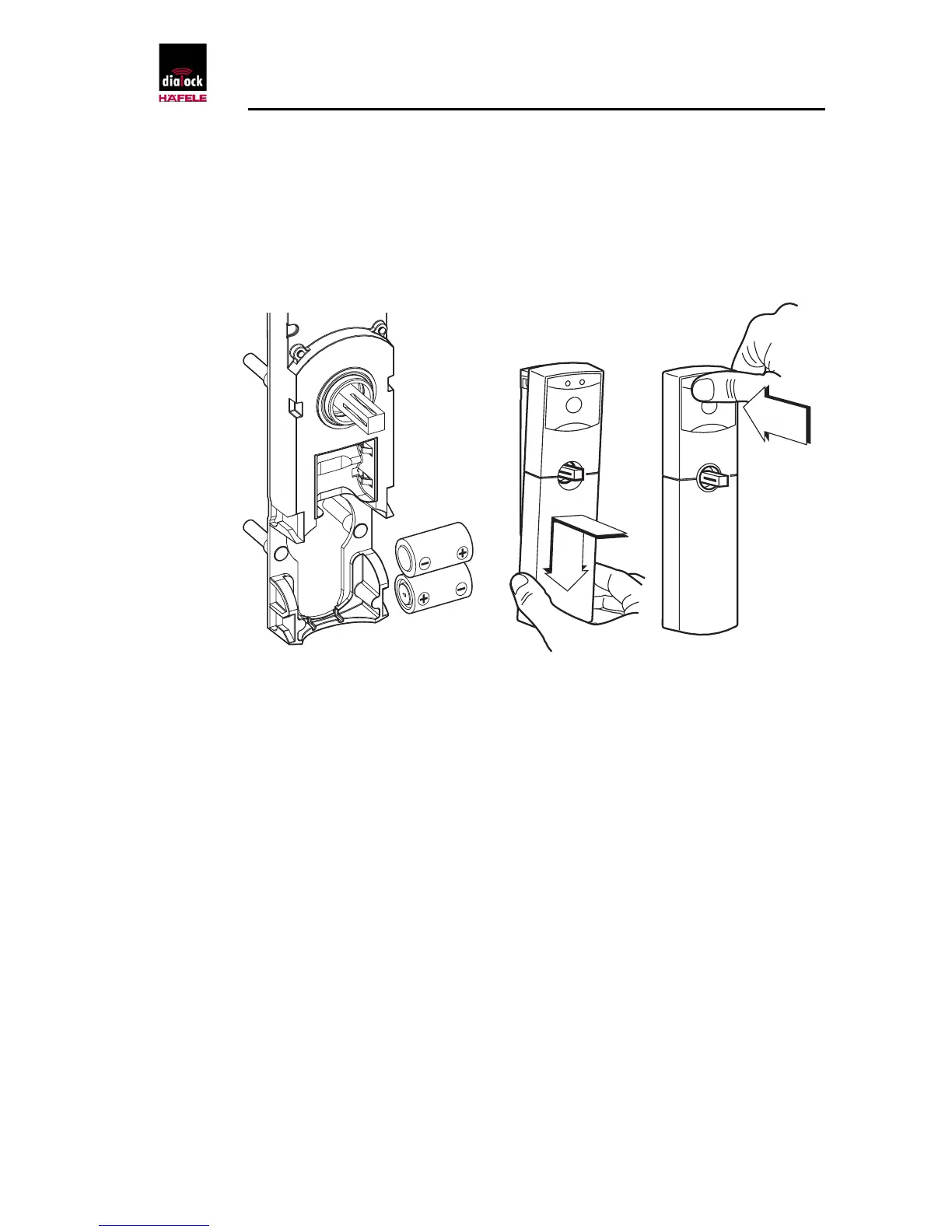

1. Insert two lithium batteries type ½ AA 3V in the battery
compartment.
Use correct polarity!
(See also "Changing the batteries")
2. Place the lower part of the cover on the bracket in such a way
that the cover guides are located in the ledges of the bracket.
3. Press the upper part of the cover back on the bracket, until it
audibly snaps into place. Take care not to damage the sensitive
plug-in connections.
4. Place the door handles on the external square in such a way that
the set screw points in the direction of the strike.
5. Tighten the set screw.
The Door Terminal Basic has been set up for operation.
