Häfele dialock User Manual

Mounting Instructions
31
Adapting the Door Terminal Basic for right-facing door handles
The Door Terminal Basic is adapted for left- or right-facing door
handles using the pins on the back of the fixing plate (with the
bracket).
1. Place the door handle on the bracket in such a way that the
direction of door handle movement is appropriate for its use.

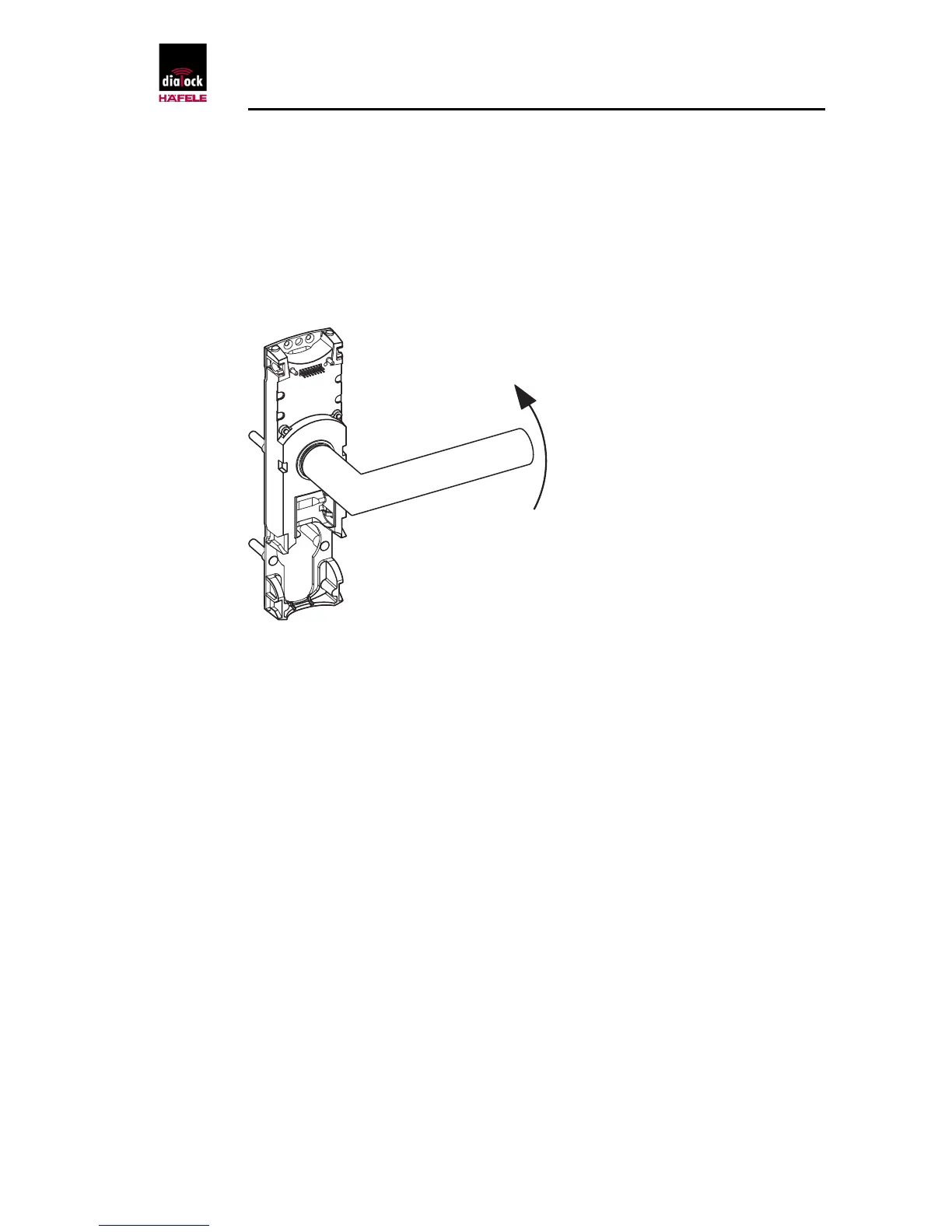

2. Turn the external square with the door handle at its upper limit
(zero position) and hold it.
