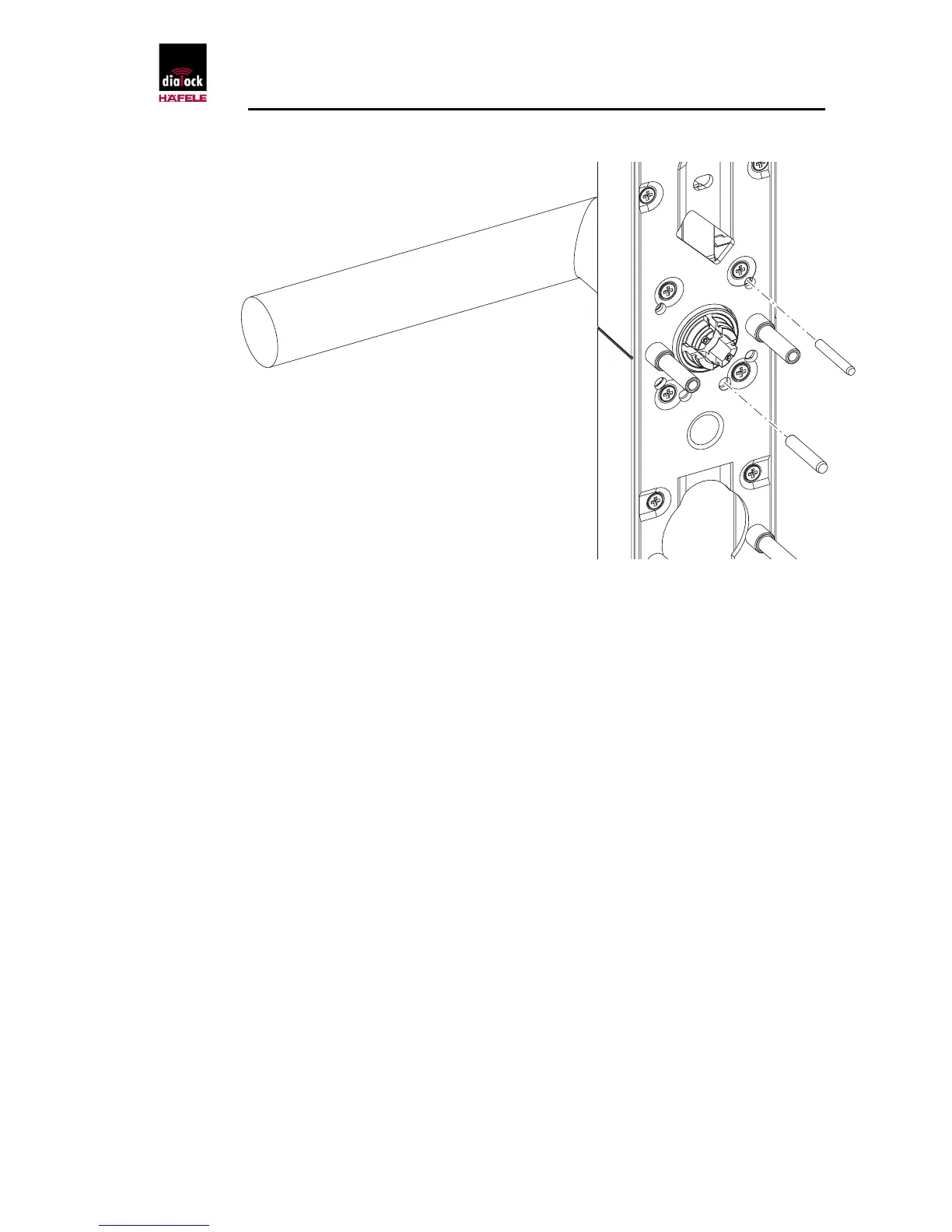

3. Using a hammer, lightly tap a 3 x 22 pin into the drilled hole
labelled "R" on the back of the fixing plate. The spring of the door
handle is under pressure.
4. Insert a 4 x 22 pin in the drilled hole labelled "R45°" on the back
of the fixing plate for the door handle limit.
If the door handle angle of rotation is to be greater than 45°:
Ö
Insert a 4 x 22 pin in the drilled hole labelled "R80°" on the
back of the fixing plate.
5. Secure the pins with the adhesive labels so that they do not fall
out.
