10
REMOVING THE DOOR FROM OVEN (OPTIONAL)
Removable door allows full access to entire interior of the oven
for easier and quicker maintenance.

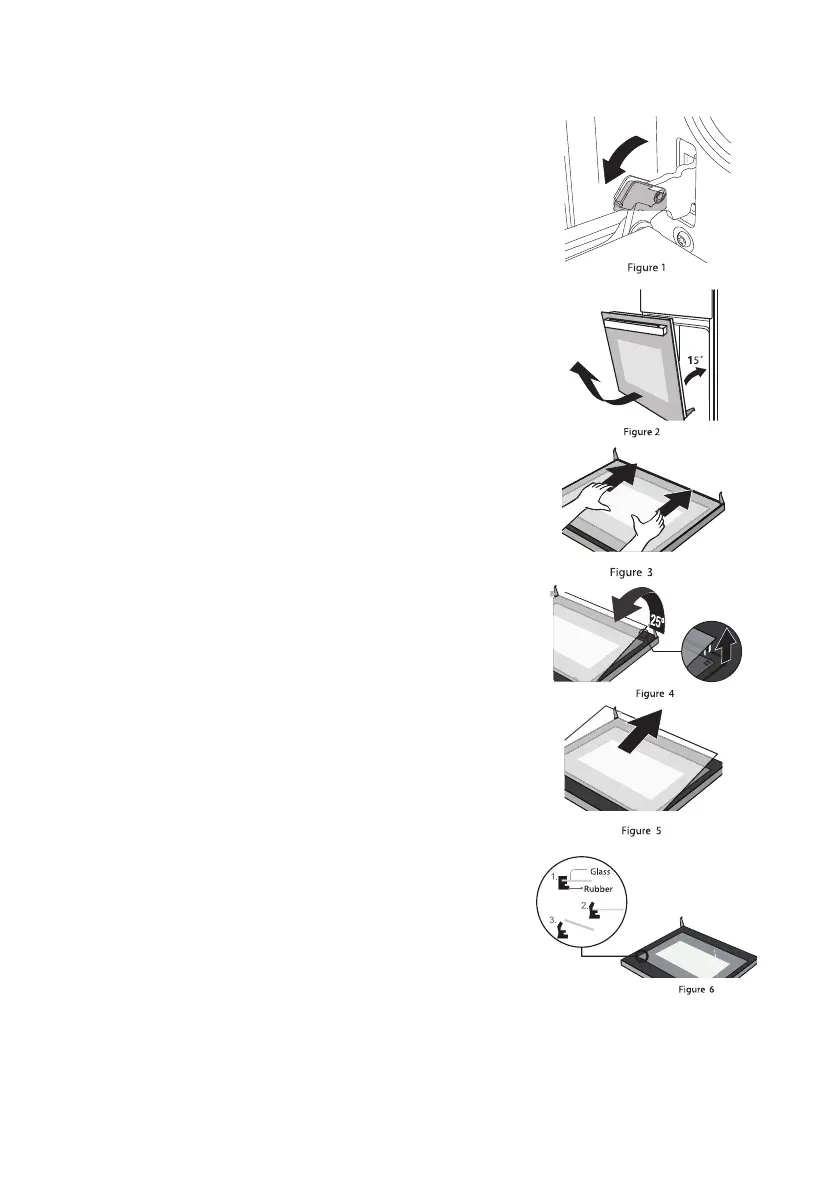

1. To remove the door, open the door to the maximum
angle. Then pull the buckle at the door hinge backward.
(Figure 1)
2. Close the door to an angle approximately 15
o
. Lift
up and slowly pull the door out from the oven. (Figure 2)
3. Place the door flatwise with door top cover towards
yourself, put your hands on the glass and pull it towards the
oven. (Figure 3)
4. Seperate the glass carefully by lifting it
approximately 25
o
. (Figure 4)
5. Push the glass into the position indicated by the
arrow in Figure 5. Gently pull the glass out of the socket.
6. After pulling out the inner glass, please take out the
middle layer glass as shown in Figure 6.
7. When cleaning is completed, reverse the above
procedures to return the door to its original
position
