INSTALLATION

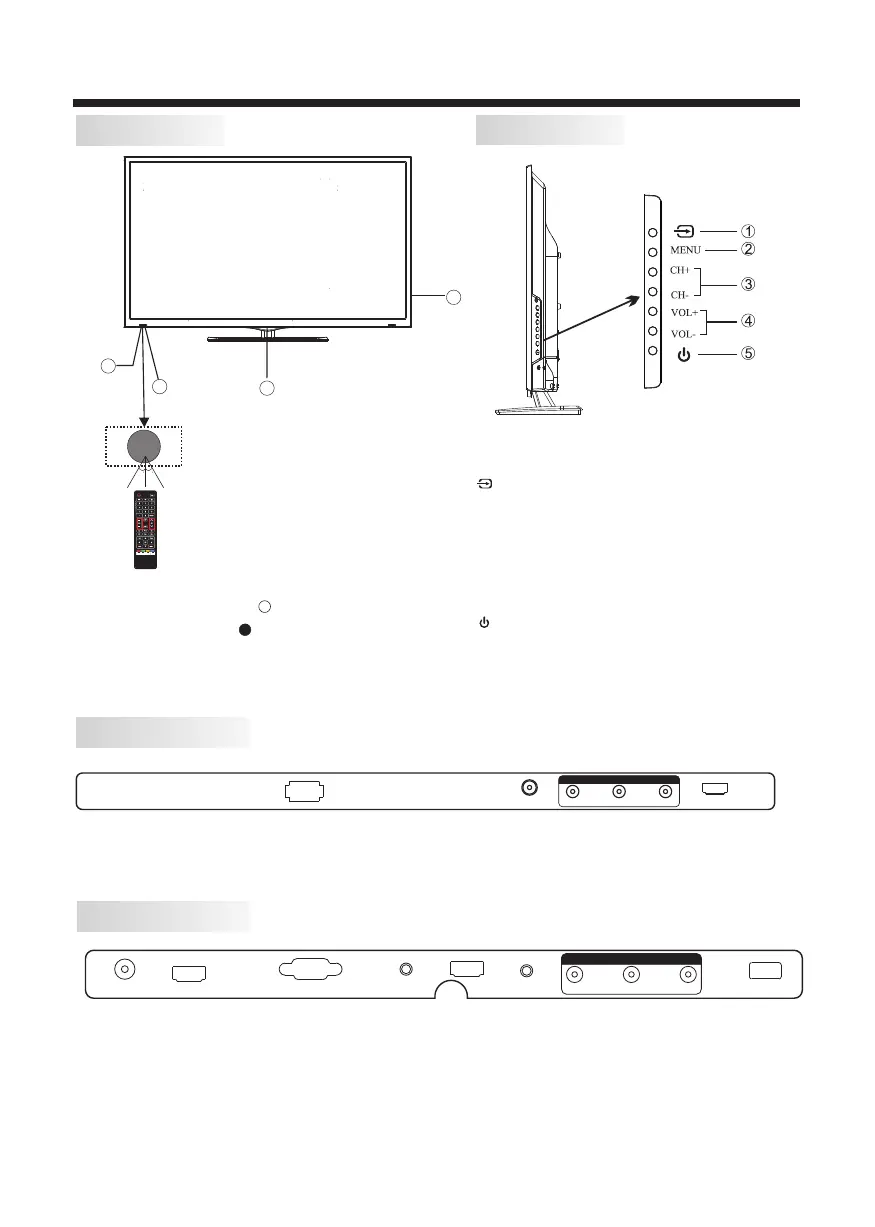

Front panel
Side panel
REAR Connections
1: Remote control sensor.
2: Indicator LED: POWER ON.
4:
WHITE
3: Indicator LED: RED STANDBY.
Panel keys
1. : Display the input source menu.
2. MENU: Display main MENU.
3. CH+/CH-: In TV mode, press "CH+" or "CH-" to
change the channel up and down. In MENU mode, press
"CH+" or "CH-" to select items; In standby mode, press
"CH+" or "CH-" to turn on the TV.
4. VOL+/VOL-: Adjust sound level. In MENU mode,
press "VOL+ " or "VOL- " to adjust the item that you
selected.
5. : Press this button to turn the unit ON from
STANDBY mode. Press it again to turn the set back to
STANDBY.
30 30
1
4
2
3
SIDE Connections
All the terminals are (from left to right):
, MHL/HDMI2, VGA, PC AUDIO, HDMI3, HEADPHONE,
INPUT, USB.
Note: When HDMI has an input signal coming from a DVI source then the audio input signal must be
connected to the PC audio input.
COAXIAL (audio output)
(COMPONENT)YPbPr
COAXIAL VGA PC AUDIO
HDMI3
HEADPHONE
Y
Pb
Pr
USB
COMPONENT
MHL
HDMI2
AC-INPU T
100-240 V~50/60Hz
R F
VIDEO
L R
HDMI1
COMPOSI TE
All the terminals are (from left to right):
POWER SOCKET, RF, VIDEO, AUDIO INPUT, HDMI1.
Note: AV and component (YPbPr) share the R and L audio inputs.
