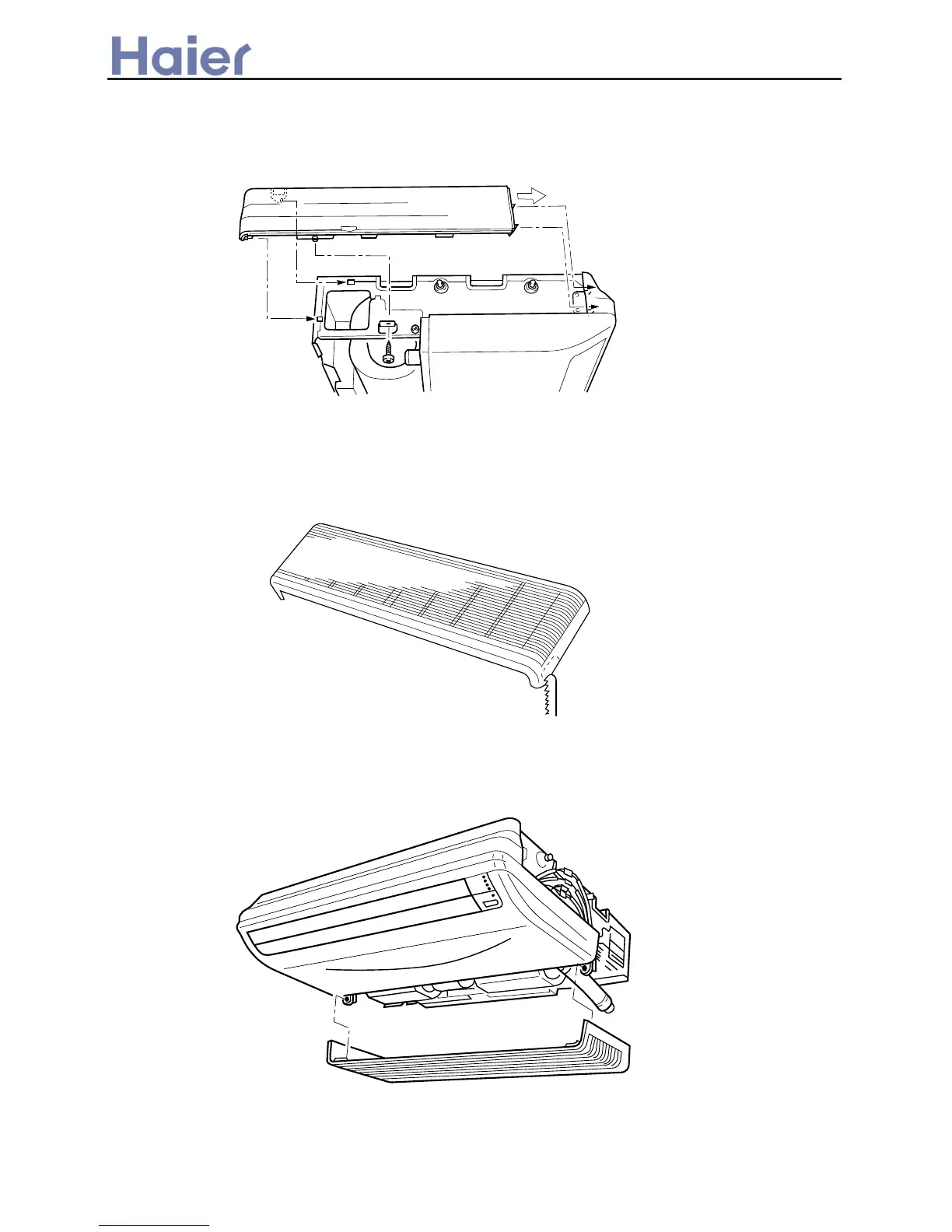

(2) Insert the hinges on the bottom of the intake grill into the holes in the base assembly. Then mount the arms to
the three areas on the top of the intake grill.
Fig. 35
Fig. 34
(1) Cut the right side of the intake grill. This is only when the pipe exits from the right side
3. Mount the intake grill.
(1) Join the cover plate (left) and mount with screws.
Fig. 33
2. Mount the cover plate.(Left)
-
>_]]VbTZR\ <Zb >_^UZdZ_^Vb
63-
To Next Page
