Metbod of water charging
Self-provided stiff pipe
Maintenance
Water drainage port for
(Drain water from
maintenance
Adiet
tli
mis noie)
1N
11
1
1°
"hitt "
Ntit
Inspecting hole
Csir
Charge water from
Inspecting hole
10Ornm
Watering can of Ostie
pipe should be
about
100 mm
long
Charge water from
air outlet

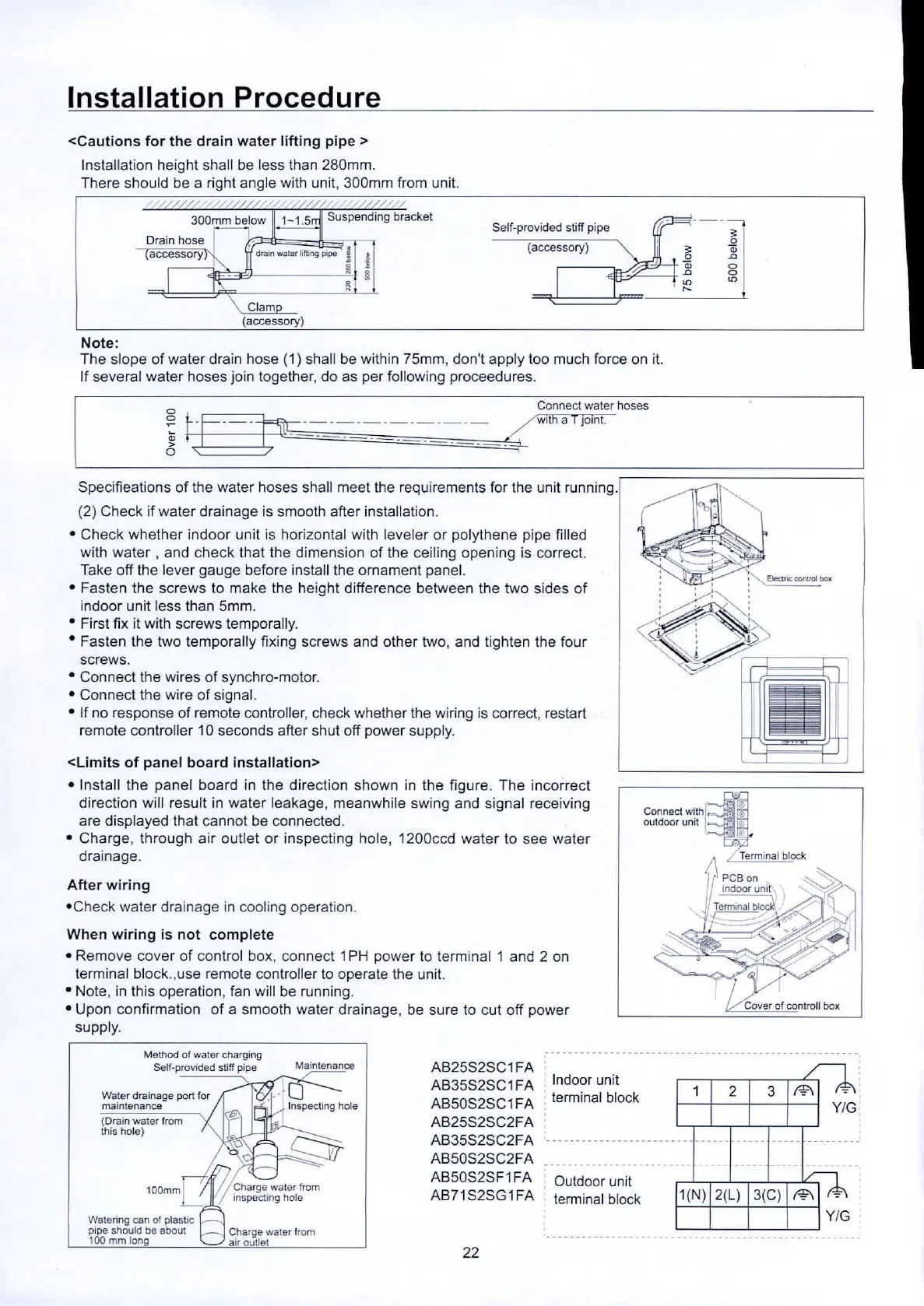

Installation Procedure
<Cautions for the drain water lifting pipe>
Installation height shall be lesa than 280mm.
There should be a right angle with unit, 300mm from unit.
Note:
The slope of water drain hose (1) shall be within 75mm, don't apply too much force on it.
If several water hoses join together, do as per following proceedures.
Connect water hoses
o
with a T toint.
o
Specifieations of the water hoses shall meet the requirements far the unit running.
(2) Check if water drainage is smooth atter installation.
Check whether indoor unit is horizontal with leveler or polythene pipe filled
with water, and check that the dimension of the ceiling opening is correct.
Take off the lever gauge before install the ornament panel.
Fasten the screws to make the height difference between the two sides of
indoor unit less than 5mm.
First fix it with screws temporally,
Fasten the two temporally fixing screws and other two, and tighten the four
screws.
Connect the wires of synchro-motor.
Connect the wire of signal.
If no response of remote controller, check whether the wiring is correct, restart
remote controller 10 seconds after shut off power supply.
<Limits of panel board installation>
Install the panel board in the direction shown in the figure. The incorrect
direction will result in water leakage, meanwhile swing and signal receiving
are displayed that cannot be connected.
Charge, through air outlet or inspecting hole, 1200ccd water to see water
drainage.
After wiring
Check water drainage in cooling operation.
When wiring is not complete
Remove cover of control box, connect 1PH power to terminal 1 and 2 on
terminal block.,use remote controller to operate the unit.
Note, in this operation, fan will be running.
Upon confirmation of a smooth water drainage, be sure to cut off power
supply.
AB25S2SC1FA
AB35S2SC1FA
AB50S2SC1FA
AB25S2SC2FA
AB35S2SC2FA
AB50S2SC2FA
AB50S2SF1FA
AB71S2SG1FA
indoor unit
terminal block
Outdoor unit
terminal block
22
