Installation Procedures

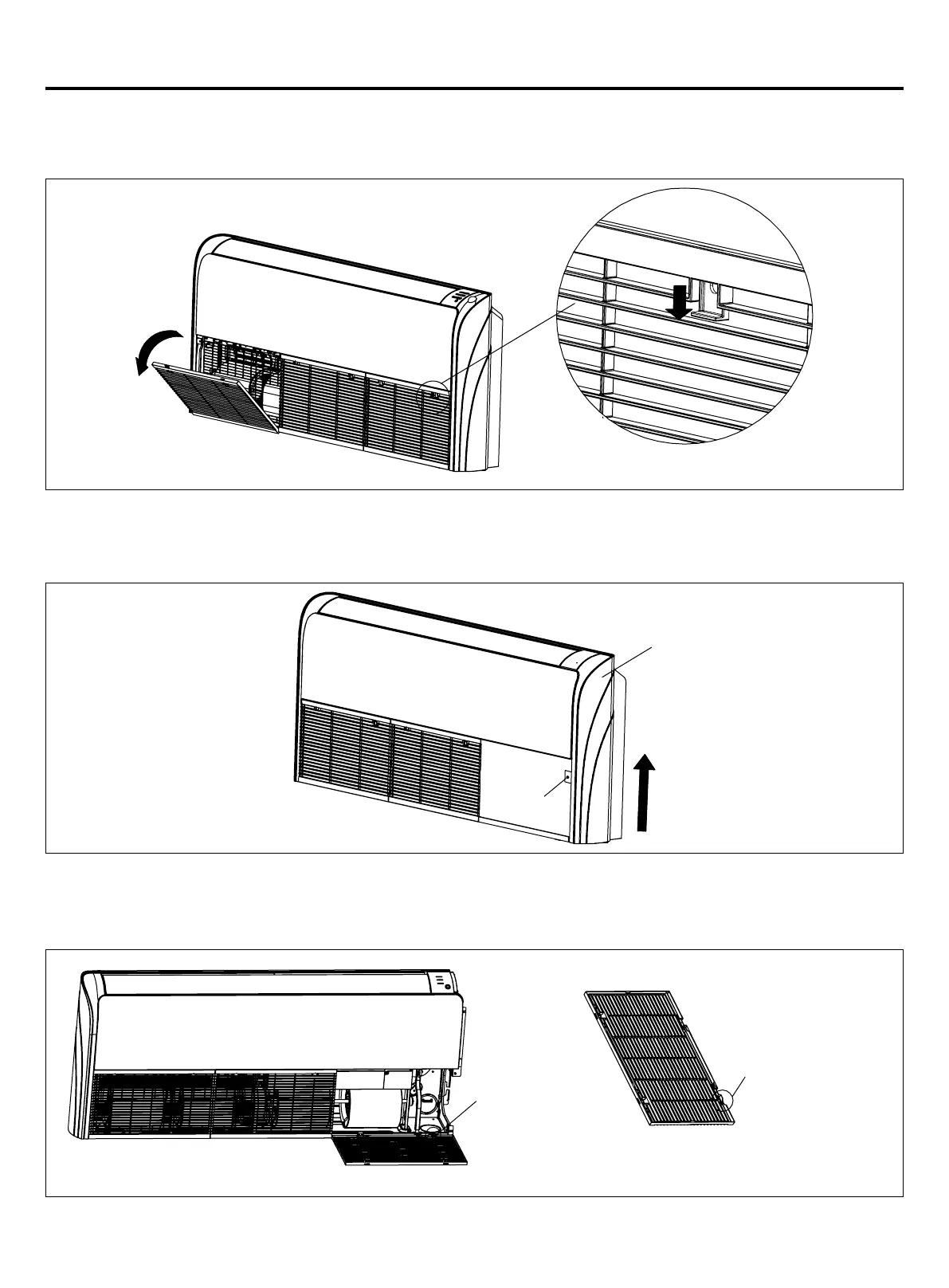

Open the intake grill
(1) Push the embeding switch according to the direction of the arrowhead.(Refer to Figure 2)
(2)Turn into the intake grill according to the direction of the arrowhead.(Refer to Figure 3)
Figure 2Figure 3
Remove the Side cover
(1) Remove the screw.
(2) Push the Side cover according to the direction of the rrowhead.
(3) Then remove the Side cover.
Side cover
screw
Cut intake grill for drain pipe
(1) Tools:Knife or Pliers.
(2) Cut the intake grill before installing the drain pipe,Then,pass the drain pipe through the hole.As the following
schematic.
Location of the cut
After removal
