Installation Procedures
3. Floor Type Installation

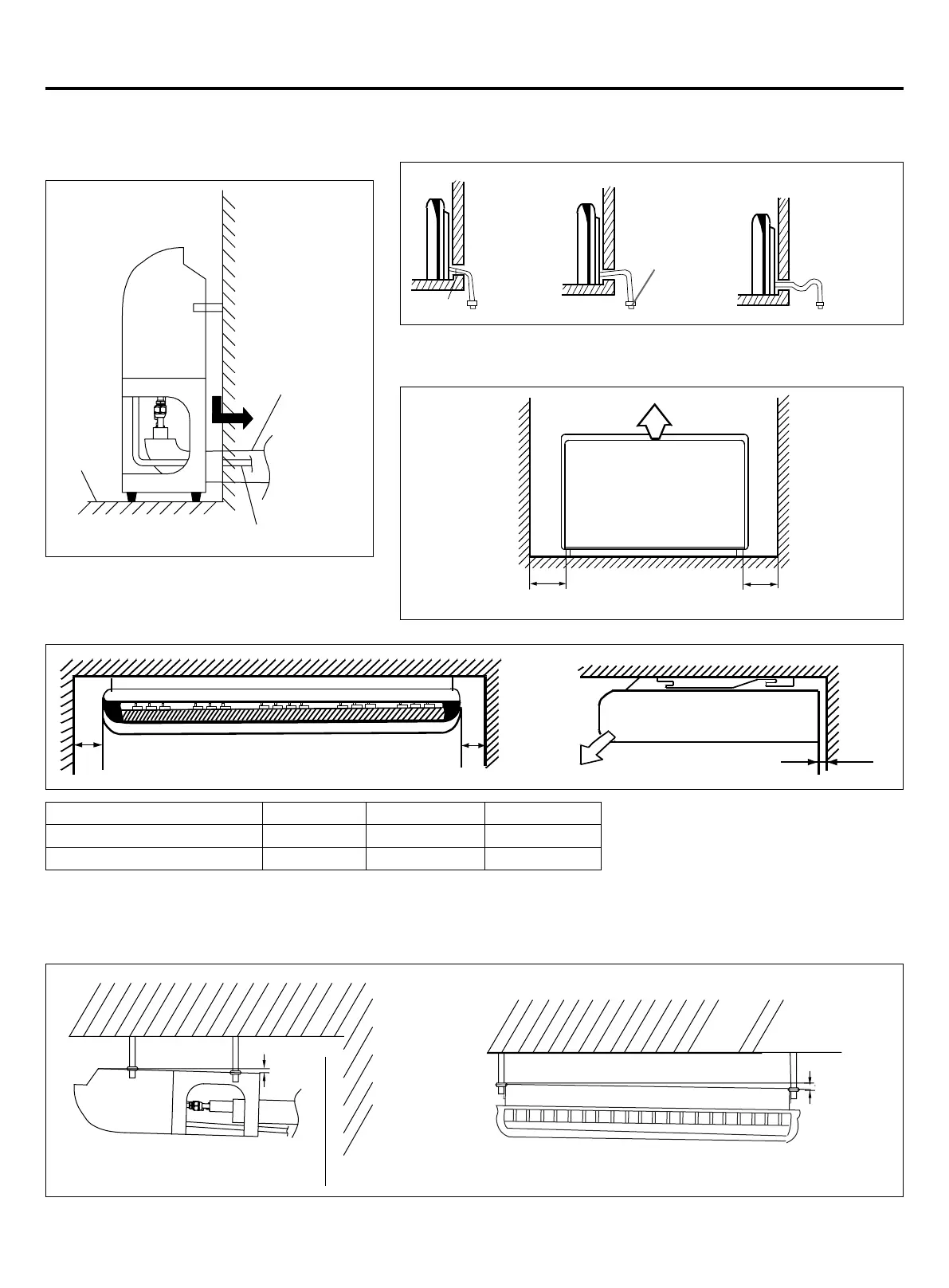

When the unit is installed on the oor,Installing
them as below:
Connecting pipe
Drain pipe
Floor
CAUTION: drain pipe leading-out direction shown with gure below.
Correct WrongWrong
Drain Pipe
Attention to distance from the unit to household usables or obstacles (as
shown with gure).
Left
Right
Over 30cm Over 30cm
4.Ceiling Installation
Left
Right
a b
Ceiling
c
Model a b c
AC092~182MDERA Over 30cm Over 30cm Over 2cm
AC242~482MDERA Over 80cm Over 150cm Over 10cm
Ceiling Installation
(1) Use Ø10 hanger bolts, prepared on the site.
Please refer to gure on the right when installing.
When the unit is installed in the ceiling,side B is lower than side A for condensate discharge.As below.
10-15mm
A B
10-15mm
A B
To Next Page
