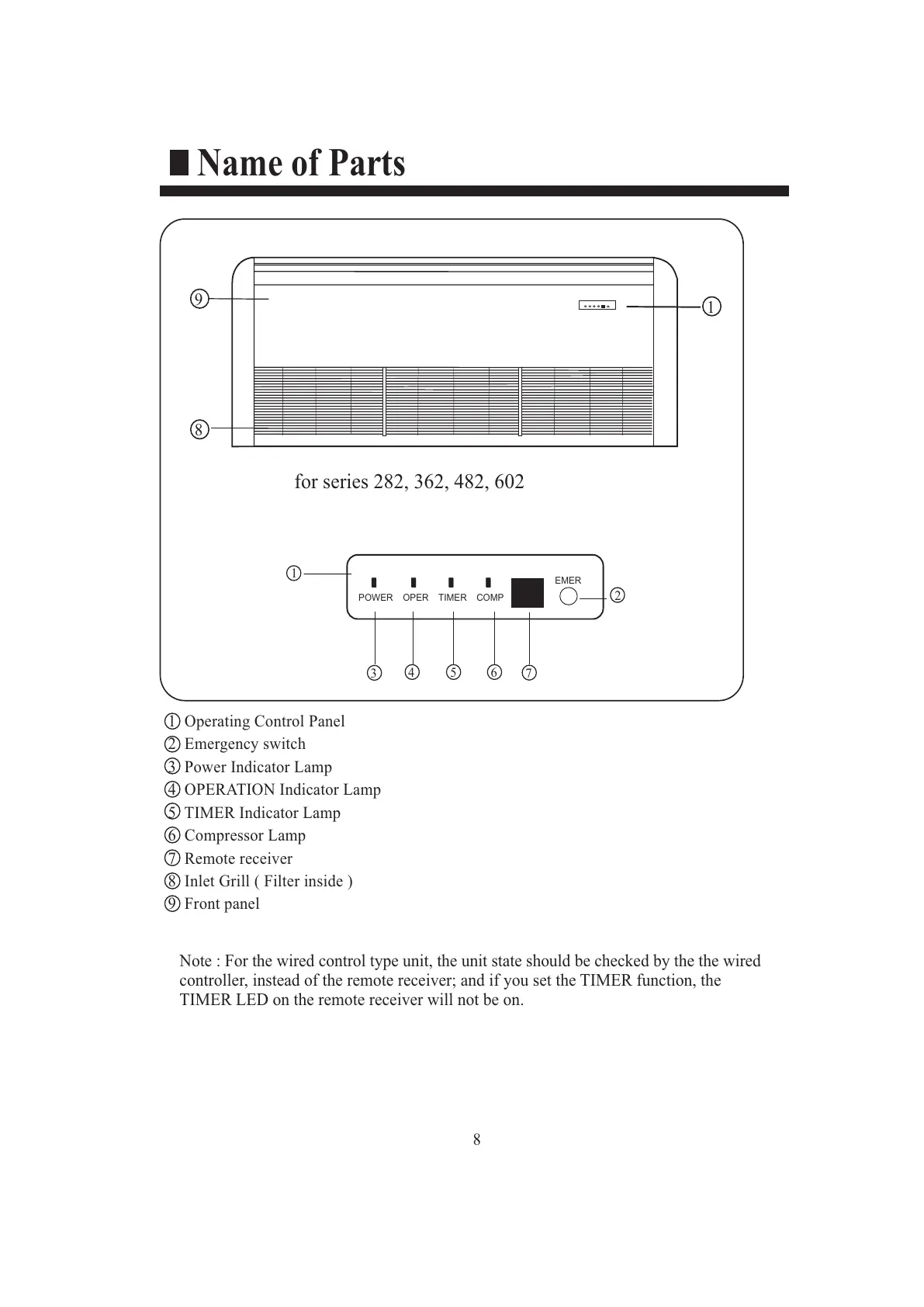

Name of Parts
8
1 Operating Control Panel
2 Emergency switch
3 Power Indicator Lamp
4 OPERATION Indicator Lamp
5 TIMER Indicator Lamp
6 Compressor Lamp
7 Remote receiver
8 Inlet Grill ( Filter inside )
9 Front panel
4
5 6
1
POWER OPER TIMER
EMER
2
COMP
3
for series 282, 362, 482, 602
8
9
1
7
Note : For the wired control type unit, the unit state should be checked by the the wired
controller, instead of the remote receiver; and if you set the TIMER function, the
TIMER LED on the remote receiver will not be on.
