Domestic air conditioner

Removal of procedure

AS24GS1/2ERA 1U24GS1ERA-SM

9.1 Removal of Front panel

Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies

before disassembling work.

Step

stnioPerudecorP

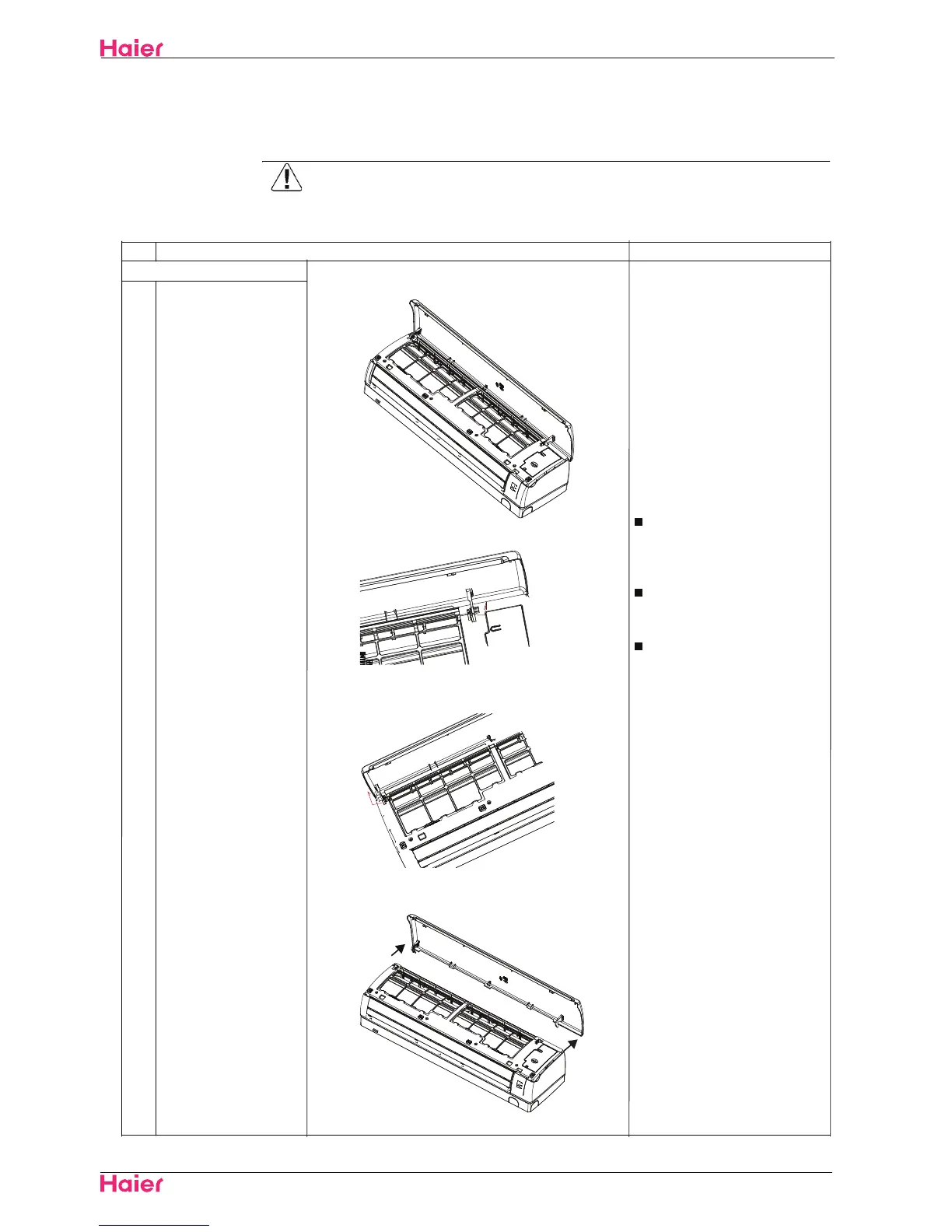

1. Remove the front panel.

Start the removal procedure

of front grille when the

panels are closed.

Slide the front panel side to

side to release each axis.

When assembling, align the

right and left axes with

grooves in turn and insert

them to the end.

Open the front panel to

the horizontal position.

Release the both sides

pivots and remove the

front panel.
