Sound level
48
Domestic air conditioner
11.3 Cooling discharge pressure curves
performance curves
cooling discharge pressure.table
outdoor temp.
(humidity 46%)
indoor temp.
DB/WB 21/15
●
℃ 27/19℃ 35/24℃
10℃
1882 1973 2071
15℃
1931 1999 2092
20℃
1931 2025 2099
25℃
2033 2104 2195
30℃
2197 2341 2454
35℃
2418
●
2499 2634
38℃
2610 2683 2814
40℃
2888
●
3025 3165
43℃
3279 3419 3631
1000
●
1500
2000
2500
3000
3500
4000
10℃ 15℃ 20℃ 25℃ 30℃ 35℃ 38℃ 40℃ 43℃
discharge pressure (Kpa)
outdoor temp.(DB/WB)

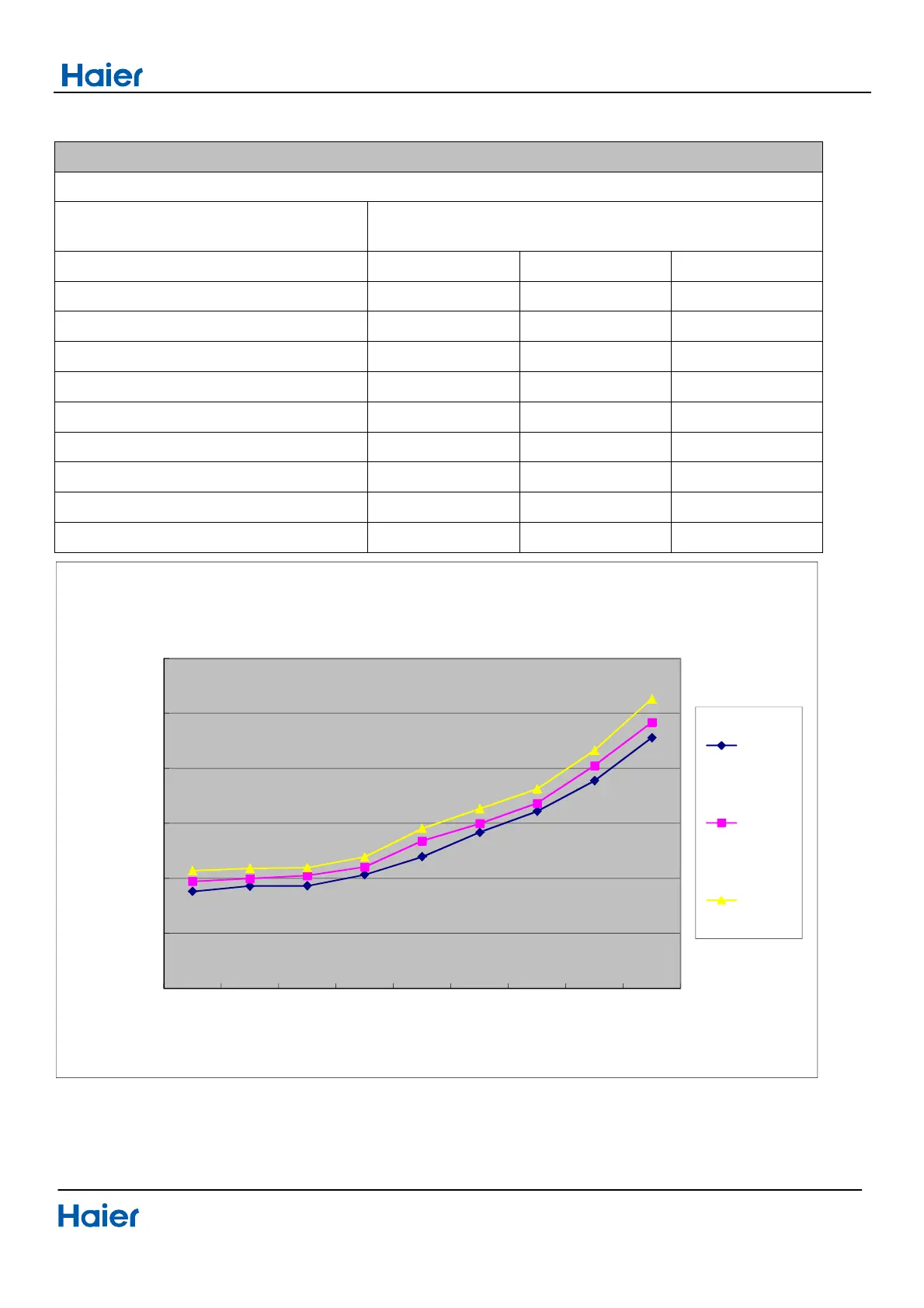

cooling discharge pressure and temp. curves
21/15℃
27/19℃
35/24℃
