Sound level
52 Domestic air conditioner

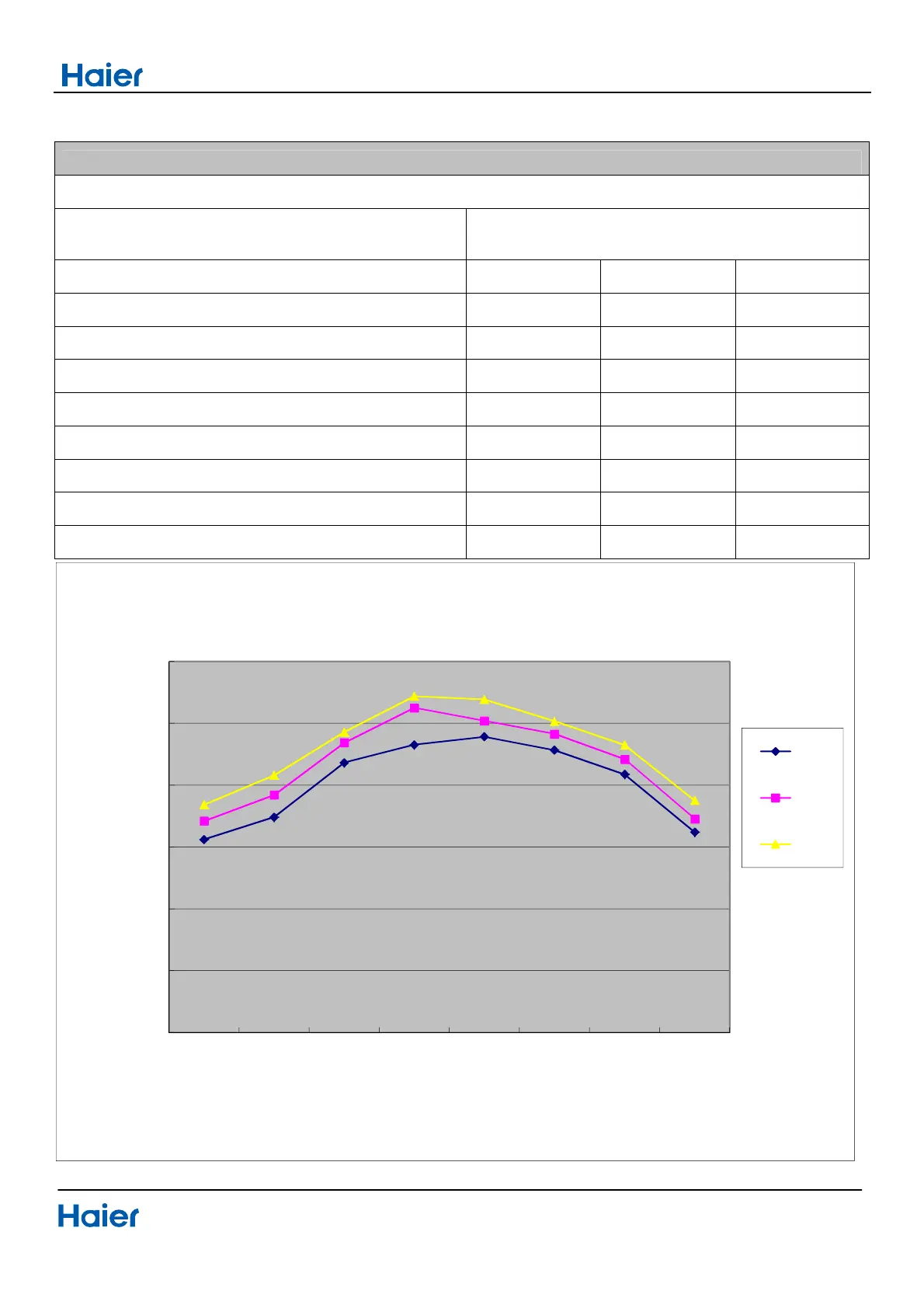

11.7 Heating discharge pressure curves
performance curves
heating discharge pressure.table
●
outdoor temp indoor temp.
DB/WB 10℃ 20℃ 27℃
-15℃ 2562
●
2710 2844
-10℃ 2743 2922 3082
-7/-8℃ 3183 3344 3430
2/1℃ 3327 3626 3721
7/6
●
℃ 3392 3520 3695
12/11℃ 3283 3414 3518
18/16℃ 3089 3210 3326
24/20℃ 2620 2728 2877
1000
1500
2000
2500
3000
3500
4000
-15℃ -
●
10℃ -7/-8℃ 2/1℃ 7/6℃ 12/11℃ 18/16℃ 24/20℃
discharge pressure (Kpa)
outdoor temp.(DB/WB)
●
heating discharge pressure and temp. curves
10℃
20℃
27℃
