Service diagnosis
31 Domestic air conditioner
10.3.3 Indoor DC fan motor malfunction
Indoor Display
E14
Method of
The rotation speed detected by the Hall IC during fan motor operation is used to determine
Malfunction
abnormal fan motor operation
Detection
Malfunction
when the detected rotation feedback signal don’t received in 2 minutes
Decision
Conditions
Supposed
Operation halt due to breaking of wire inside the fan motor.
Causes
Operation halt due to breaking of the fan motor lead wires
Detection error due to faulty indoor unit PCB

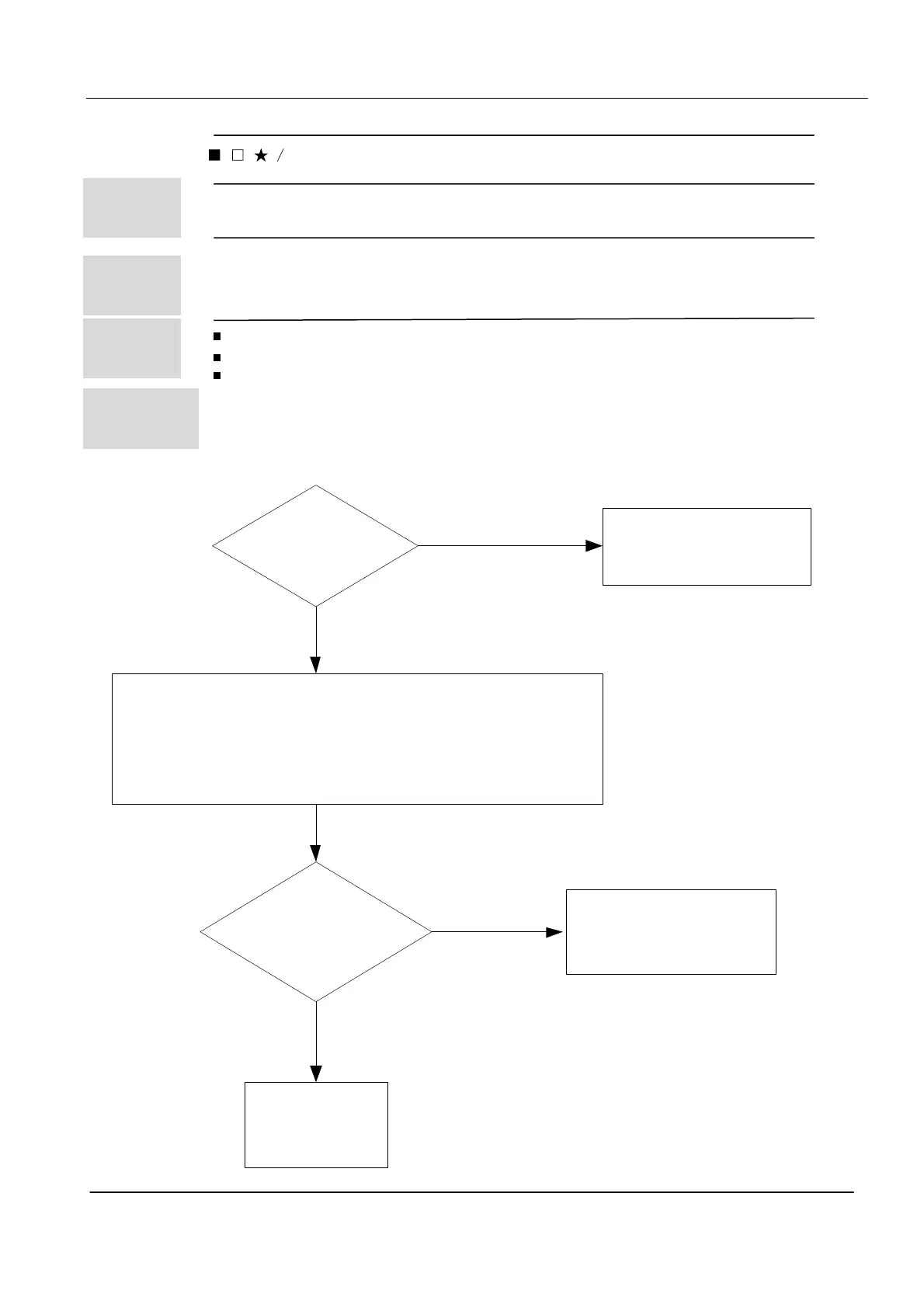

Troubleshooting
* Caution Be
sure to turn off power switch before connect or disconnect connector, or else
parts damage may be occurred.
Check whether
terminals on indoor
pcb is well
Pull out the term inals on
the indoor mainboard and
reinsert them.
Turn off power switch,and pull out the fan motor.
Measure t he resistanc e s between bal ck l in e ( 0V) and w hi te
line(15V) ,balck line (0V)and red line(310V) of indoor fan motor .
The resistances range is
between 30KΩ with
2MΩ
The indoor fan
motor is damaged
and need replace
NO
YES
NO
YES
the ind oor pcb is dam aged
and need replace
To Next Page
