DISASSEMBLY

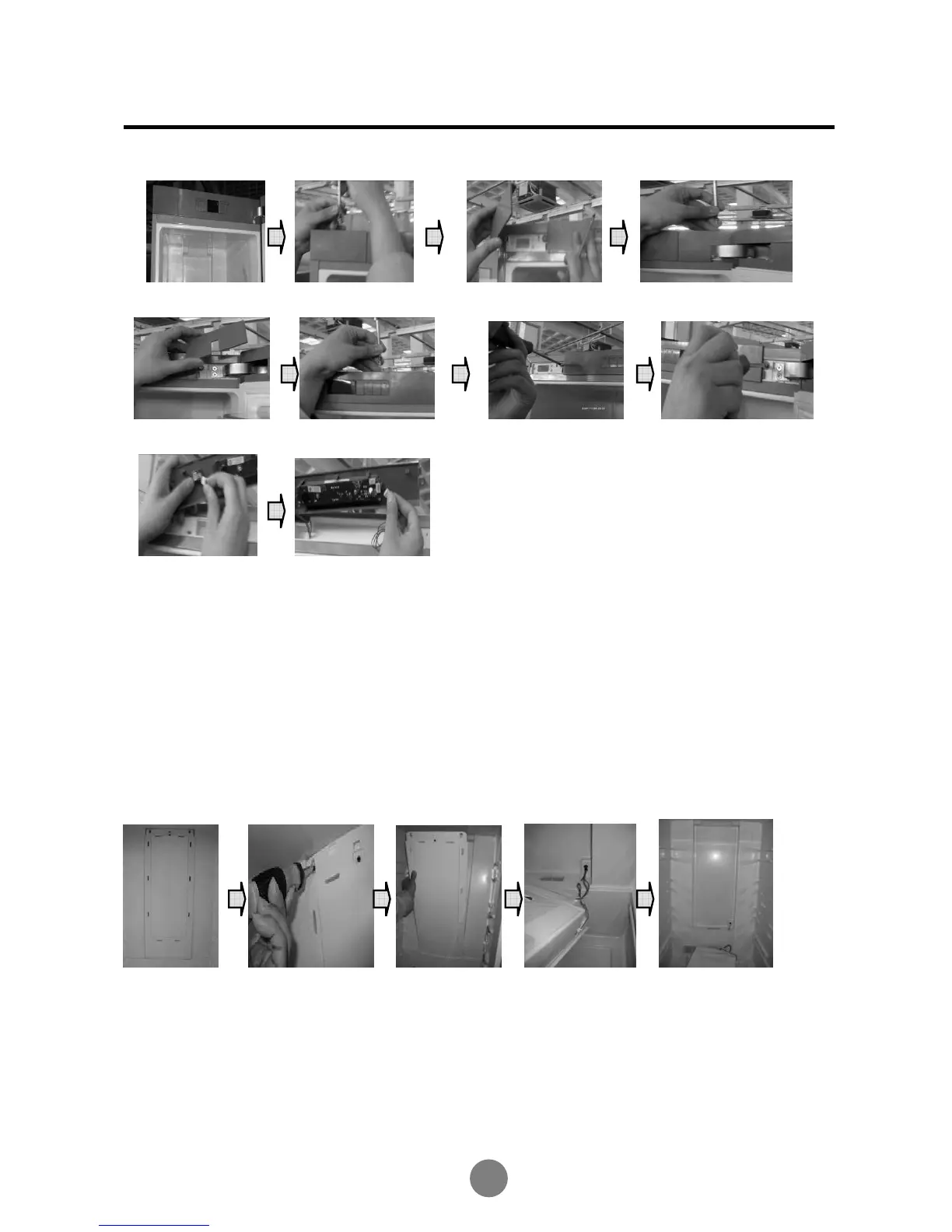

4.6 Removing the Cabinet Display Panel
① ② ③
④ ⑤ ⑥ ⑦
⑧ ⑨
(1) Detach the screw in the left hinge cover of the cabinet (fig. ①);
(2) Remove the left hinge cover of the cabinet (fig.②);
(3) Detach the screw in the right hinge cover of the cabinet (fig.③);
(4) Remove the right hinge cover of the cabinet (fig.④);
(5) Detach the 4 screws in the front decoration strip of the cabinet (fig. ⑤⑥⑦);
(6) Pull out the connector and remove the front decoration strip of the table-board (fig. ⑧⑨).
4.7 Removing the Air-Duct
■ Removal of the refrigeration air-duct (unplug the refrigerator before removing the air-duct)
① ② ③ ④ ⑤
(1) Take out the accessories in the fridge storage compartment which may interfere with the removal
of the air-duct (including shelves, large and small crispers, air-duct decoration strips) (fig. ①);
(2) Detach the 2 screws in the upper part of the air-duct (fig. ②);
(3) Tilt the refrigeration air-duct forward entirely around its upper side until you can see the connector
on its lower side. Pull out the connector and you can remove the refrigeration air-duct (fig. ③④⑤);
１５
