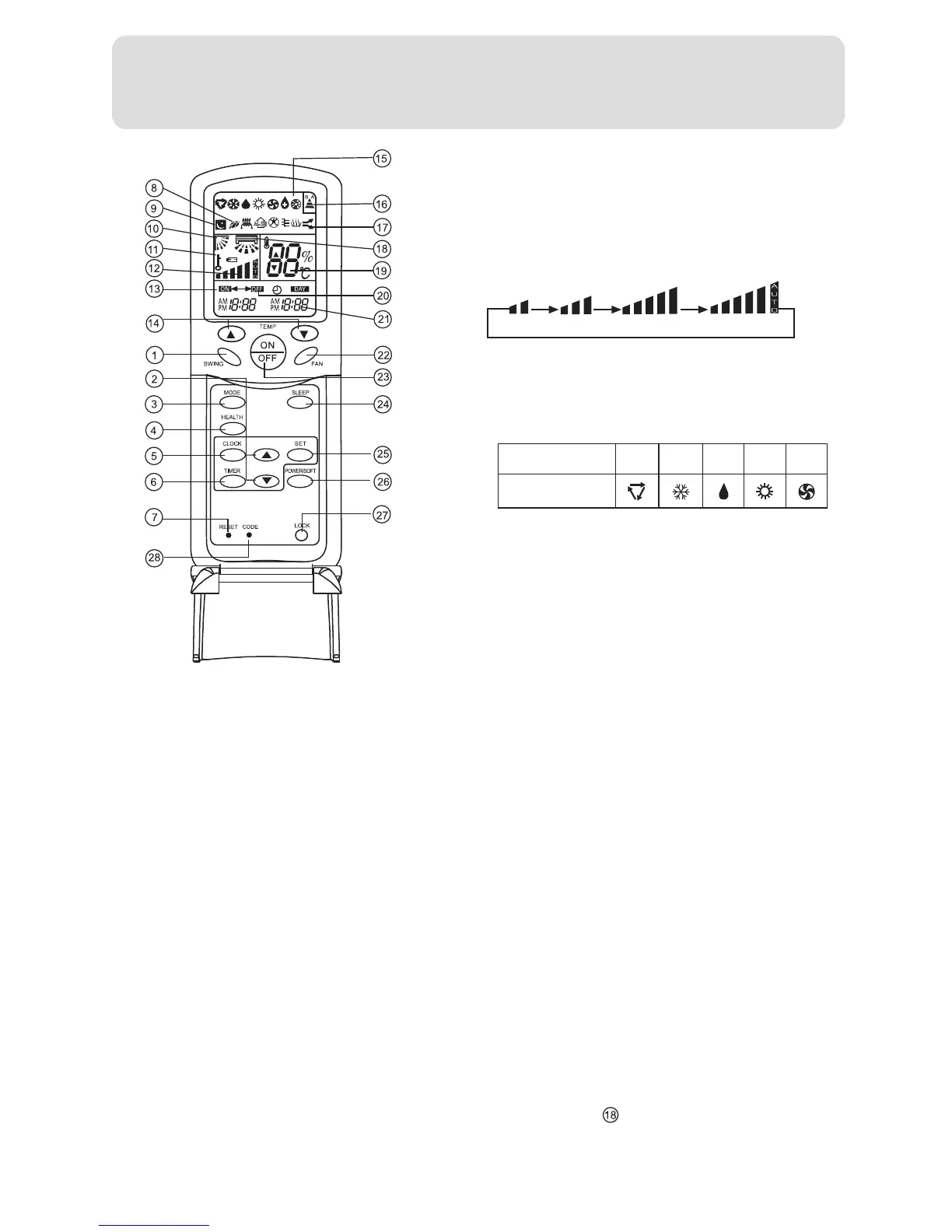

Haier H2SM-H03/R2 - Remote Control Details; Remote Control Buttons and Indicators

16. SIGNAL SENDING display
17. POWER/SOFT display
18. Left/right air flow display
19. TEMP display
Remote controller: to display the TEMP. setting.
20. TIMER OFF display
21. CLOCK display
22. FAN button
Used to select fan speed: LOW,MED, HI, AUTO
23. ON/OFF button
Used for unit start and stop.
24. SLEEP button
Used to select sleep mode.
25. SET button
Used to confirm timer and clock settings.
26. POWER/SOFT button
27. LOCK
Used to lock buttons and LCD display. If
pressed, the other buttons will be disabled
and the lock condition display appears.
Press it once again, lock will be canceled
and lock condition display disappears.
28. CODE
Used to select CODE A or B with a press,A or
B will be displayed on LCD.
Please select A without special explanation.
1. SWING button
Used to select up or down air sending direction.
2. HOUR button
Used to set clock and timer setting.
3. MODE button
Used to select operation mode. AUTO,
COOL,DRY, FAN,HEAT.
4. HEALTH button
Used to set healthy operation.
5. CLOCK button
Used to set correct time.
6. TIMER button
Used to select TIMER ON,
TIMER OFF, TIMER ON-OFF.
7. RESET
When the remote controller appears
abnormal, use a sharp pointed article
to press this button to reset the
remote controller normal
11. LOCK display
12. FAN SPEED display
13. TIMER ON display
14. TEMP button
Used to select your desired temperature.
15. Operation mode display
LOW
Operation mode AUTO HEAT FANCOOL DRY
Remote controller
HI
MED AUTO
Parts and Functions
6
10. SWING UP/DOWN display
NOTE: (1)The following functions and related displays are not available
(2) Cooling only unit do not have functions and displays related with heating.
8. HEALTH display
9. SLEEP display
