Haier HBU-28CH03 Installation Instructions

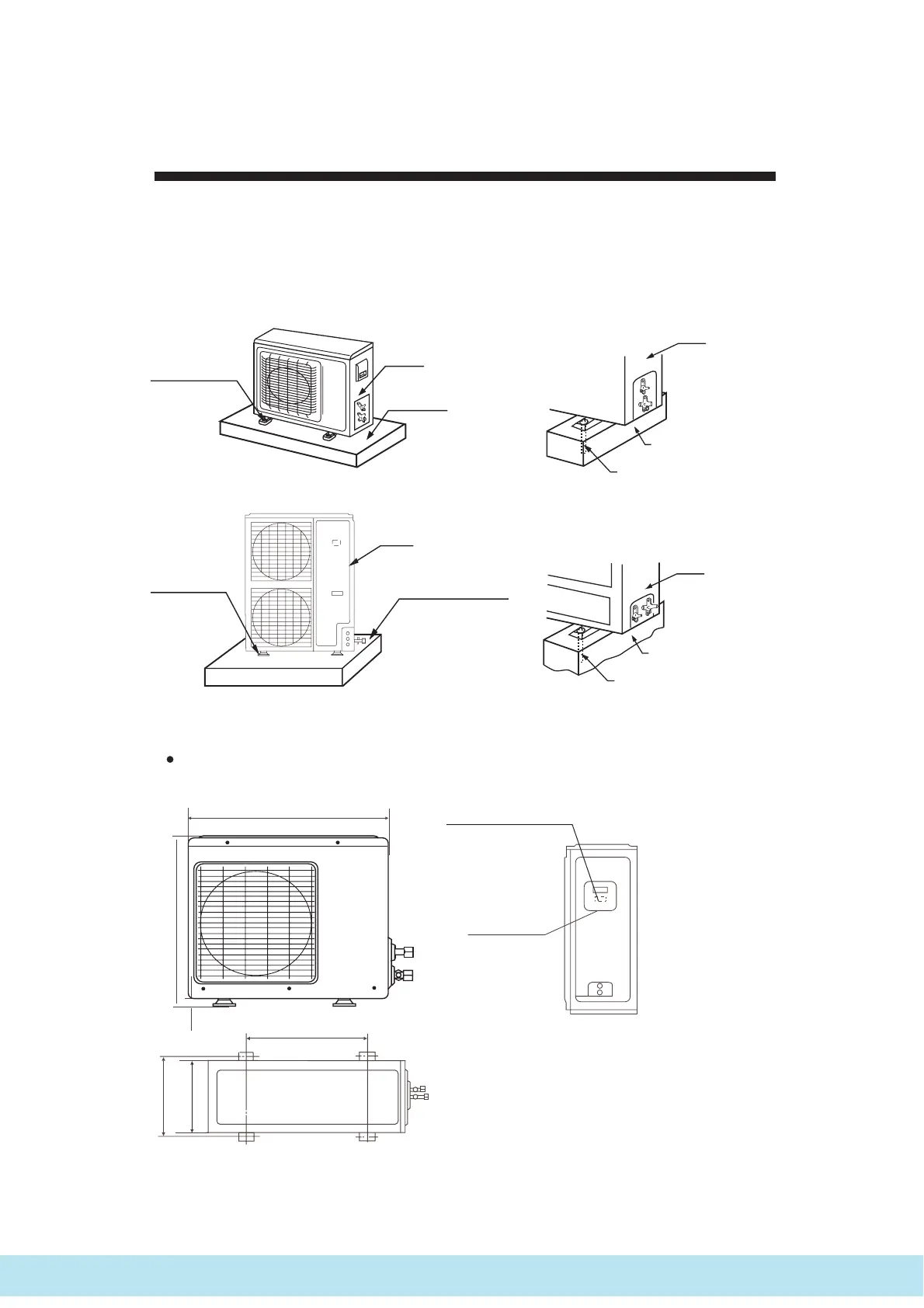

(2) Installation sketch of outdoor unit
310
635
340
Power Wiring Terminal
Power Wiring
Distribution Hole
3. Installation of outdoor unit
Fix the unit in a proper way according to the condition of a place where it is
installed by referring to the following .
(1) Installation
Installation of outdoor unit
5
Installation Procedure
HBU-28CH03
HBU-28HH03
(b) Foundation anchor
(a) Concrete foundation
Install the unit so that the angle of inclination must be less than 3 degrees.
Note: (1) Give enough room for the concrete
foundation to fix by anchor bolts.
Note: (1) Place the concrete foundation deep enough.
Unit
To fix by bolts
Anchor bolt
Concrete foundation
Unit
Concrete foundation
Anchor bolt
(a) Concrete foundation (b) Foundation anchor
Concrete foundation
Unit
Anchor bolt
Anchor bolt
Concrete foundation
Unit
To fix by bolts
2
5
862
730
Все каталоги и инструкции здесь: http://splitoff.ru/tehn-doc.html
