Air Velocity Distribution
Cooling
Blowy angle:25

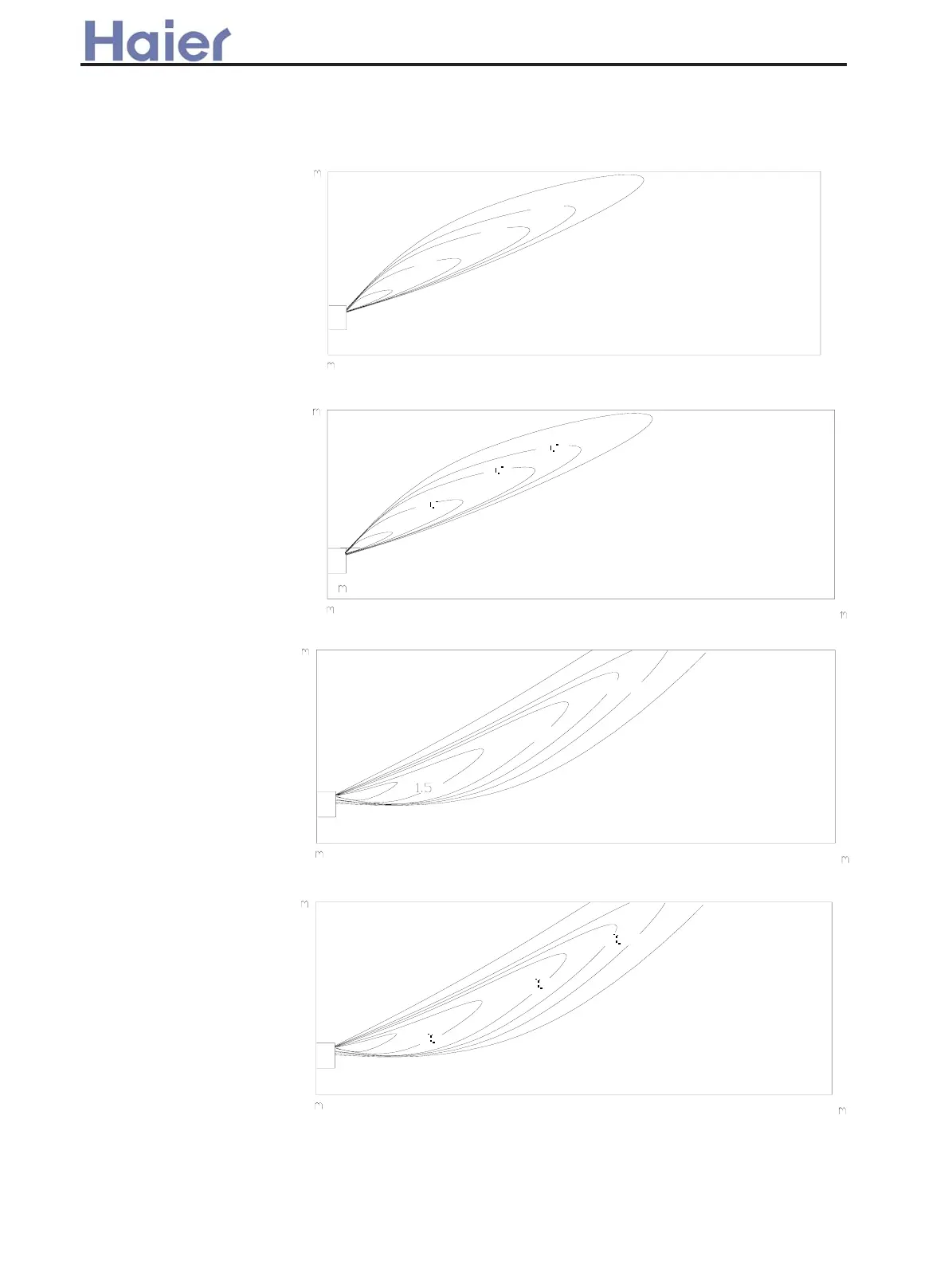

a. Cooling / Air Velocity Distribution
2.4
0
1.5m/s
1.0m/s
0.5m/s
Temperature Distribution
Cooling
Blowy angle:25
b. Cooling / Temperature Distribution
0
2.4
22
25
27
5.5
0
Heating
Blowy angle:5
Air velocity Distribution
c. Heating / Air Velocity Distribution
5.5
0
2.4
m/s
1.0m/s
0.5m/s
d. Heating / Temperature Distribution
Temperature Distribution
Heating
Blowy angle:5
0
2.4
27
25
22
5.5
