Haier HBU-28CH03 - Air Velocity Distribution

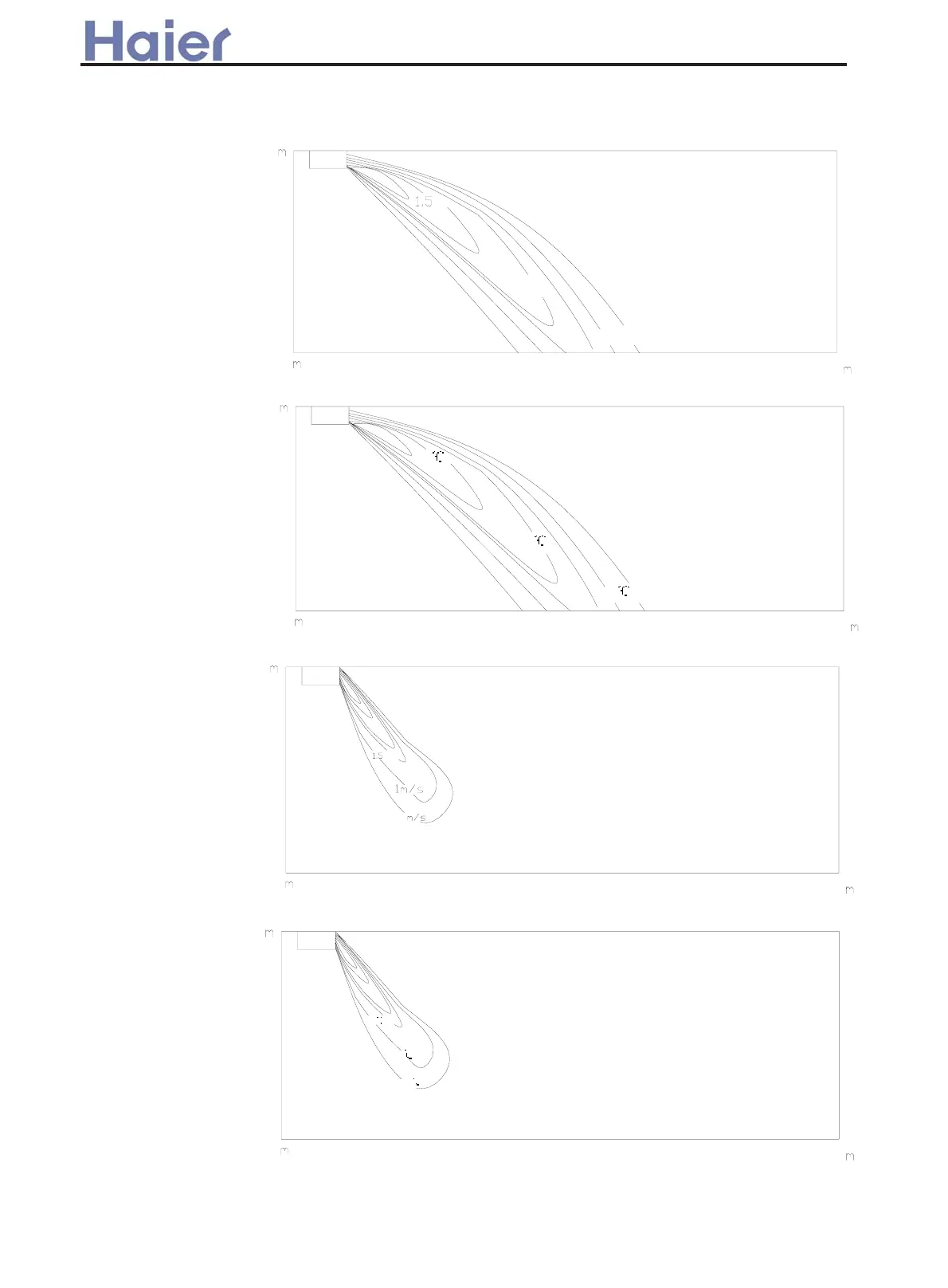

Air Velocity Distribution
Cooling
Blowy angle:25
Temperature Distribution
Cooling
Blowy angle:25

5.5
0
2.4
m/s
1.0m/s
0.5m/s
0
2.4
22
25
27
5.5
Ceiling
a. Cooling / Air Velocity Distribution
b. Cooling / Temperature Distribution
Heating
Blowy angle:65
Air velocity Distribution
Temperature Distribution
Heating
Blowy angle:65
0
0.5
m/s
2.4
5.5
c. Heating / Air Velocity Distribution
d. Heating / Temperature Distribution
0
5.5
2.4
25
27
22
2)
-160-
Noise level
