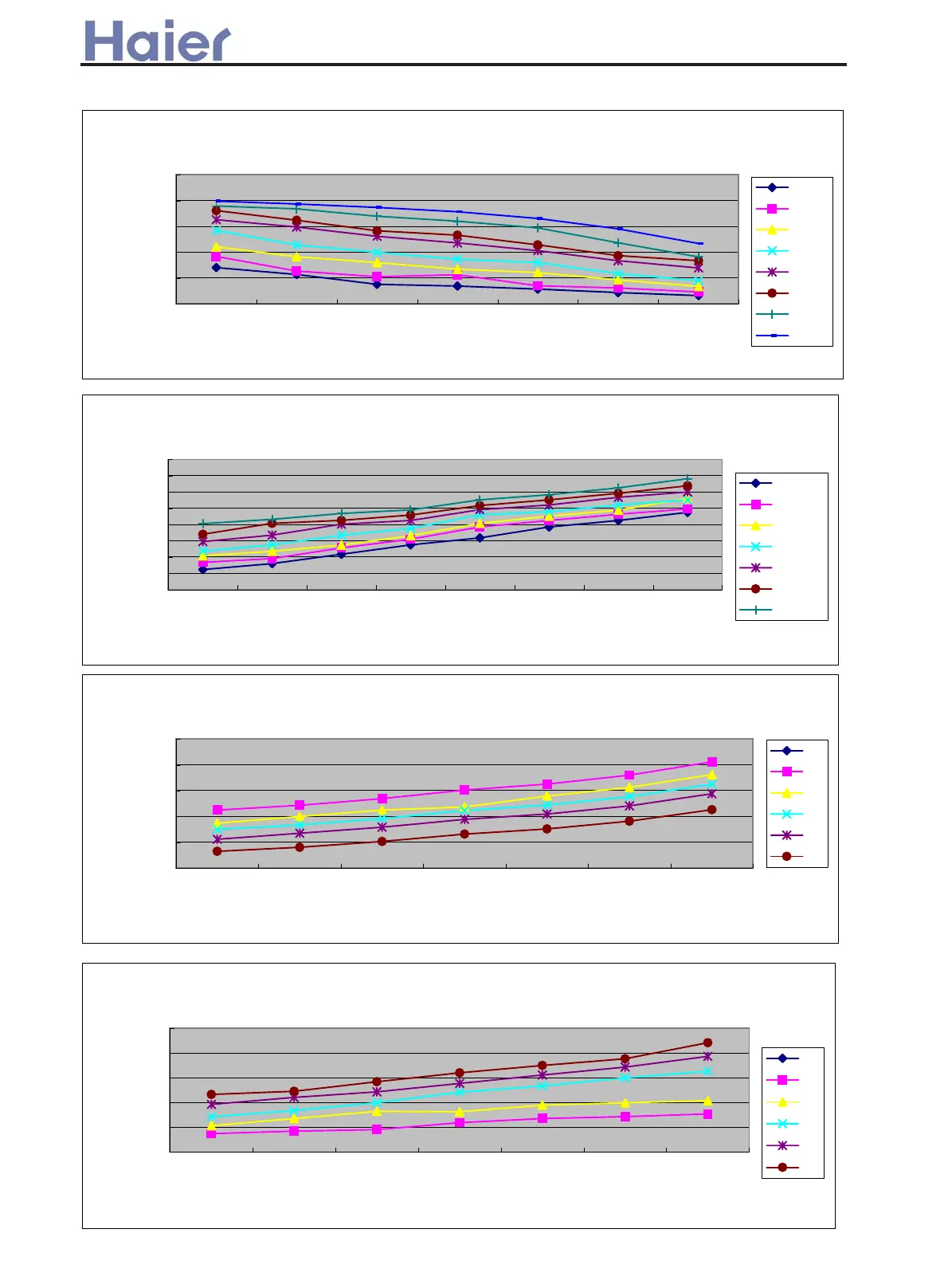

Heating capacity curves
8000
10000
12000
14000
16000
18000
16/10 18/12 20/14.5 21/15 22/16 24/17 26/18
indoor DB/WB
Heating capacity(W)
-6/-7
-4/-5
-1/-2
1/0
6/5
7/6
12/10
16/15
Power input curves in heating mode
2800
3000
3200
3400
3600
3800
4000
4200
4400
-6/-7 -4/-5 -1/-2 1/0 6/5 7/6 12/10 16/15
indoor DB/WB
Power input(W)
16/10
18/12
20/14.5
21/15
22/16
24/17
26/18
Cooling capacity curves
9500
10500
11500
12500
13500
14500
18/12 20/14 22/16 25/18 27/19 30/22 32/24
indoor DB/WB
Cooling capacity(W)
-5
20
25
32
35
40
Power input curves in cooling mode
3000
3200
3400
3600
3800
4000
18/12 20/14 22/16 25/18 27/19 30/22 32/24
indoor DB/WB
Power input(W)
-5
20
25
32
35
40
For cab inet type: HPU-42HV03
