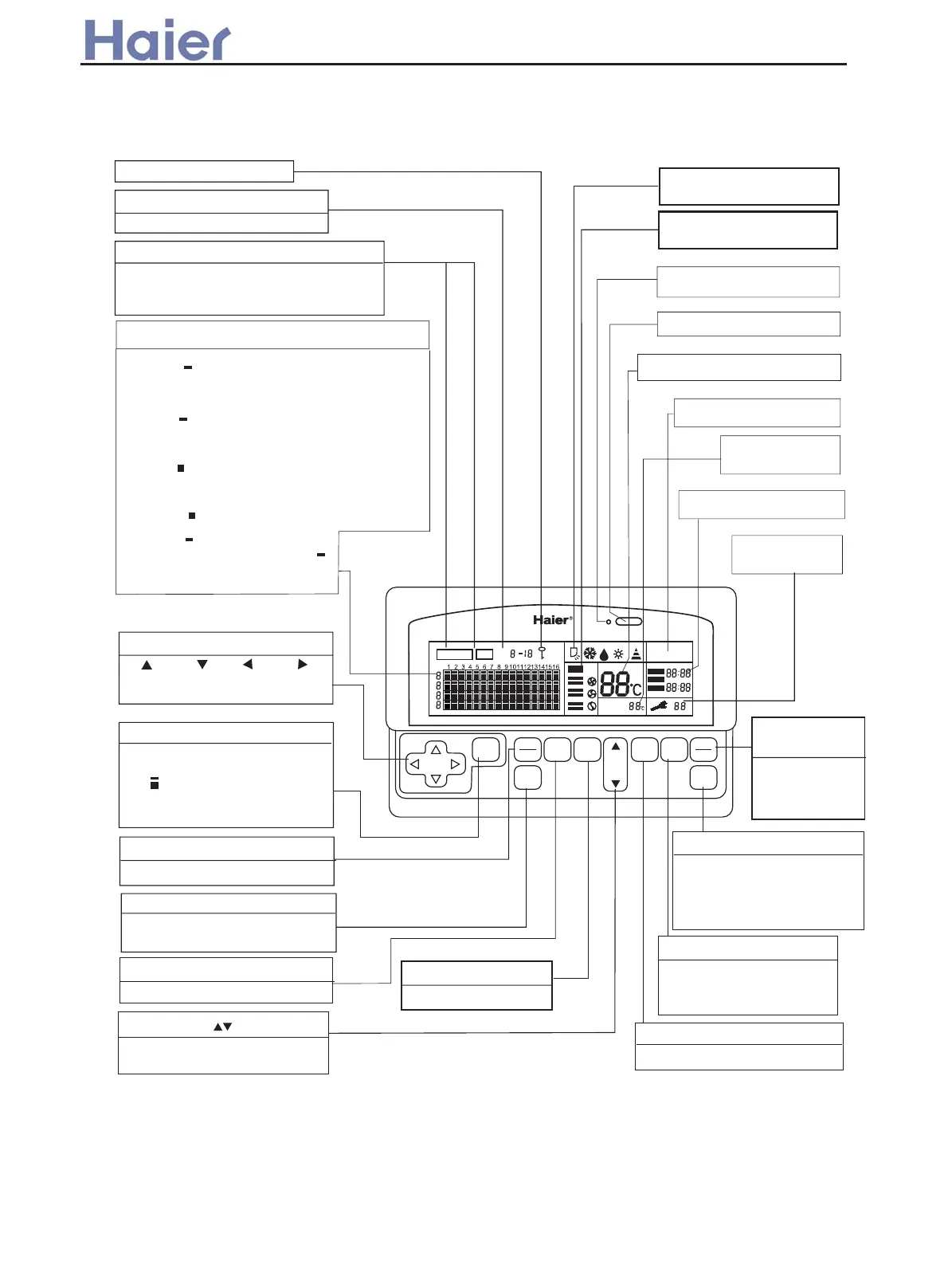

Display of operation mode
and signal emitting
LOCK display
Display of current unit number
Location of the indicating cursor
Display of MONI/SET
Generally indicating " MONI" . When
setting ON/OFF or other items, it
changes from " MONI" into " SET" .
Display of the connected units
Flashing
indicates the cursor for current unit
or that the monitor and air conditioner are in
group selection status.
Lighted indicates the monitor for the unit
has been linked into the network, otherwise not
linked.
Lighted
indicates the unit is in "on" mode, otherwise
in"off" mode.
Flashing
indicates fault.
Flashing
of the current unit
indicates the cursor, flashing
of non-current unit indicates the
unit is in group selection status.
Direction keys
Up
Down Left Right
Used to select the current unit
number
SELECT key
To determine the selected unit
number during group selection,
the
of the corresponding
unit number flashes at the same
time.
LOCK key
This key can be used to lock the
keys and LCD display.
ON/OFF key
Used to select unit on/off.
MODE key
Used to select running mode.
Display of fan speed and
louver
Total on/ Total off indicator
Total on/ Total off key
Display of temperature setting
FAN SPEED key
To select the fan speed.
Note: In MONI mode, pressing SEL, MODE, FAN SPEED, TEMP TIME keys may change the MONI mode into
SET mode. If SET key or other keys hasn' t been pressed within 10s, it will automatically return to MONI mode.
TEMP/TIME keys
Used to set a desired room
temperature, clock and time.
CLOCK key
Used to unitarily set the clock.
TIMER key
To select timer mode:
TIMER ON/TIMER OFF
/blank
CONFIRM key
Used to confirm the function
settings and send to the air
conditioner corresponding to
the selected unit number.
CENTRAL/
REMOTE key
To select central
or remote control
method.
Display of
self-check code
Display of time setting
Display of CENT/REM
Display of room
temperature
Total on/Total off
Function description:
4.
Central Controller YCZ-A001
