(Fig.1)
180mm
120mm
MONITER
SETUNIT
AUTO
TEMP
ROOM
TEMP
CENTRAL REMOTE
TIMER ON
EVERY DAY
SELECT
ON
OFF
MODE FAN
TEMP.
TIME
TIME TIMER
CENTRAL
REMOTE
CONFIRM
LOCK
TIMER OFF
Total on/Total off
Exterior dimension
1PH , 220-240V~, 50Hz

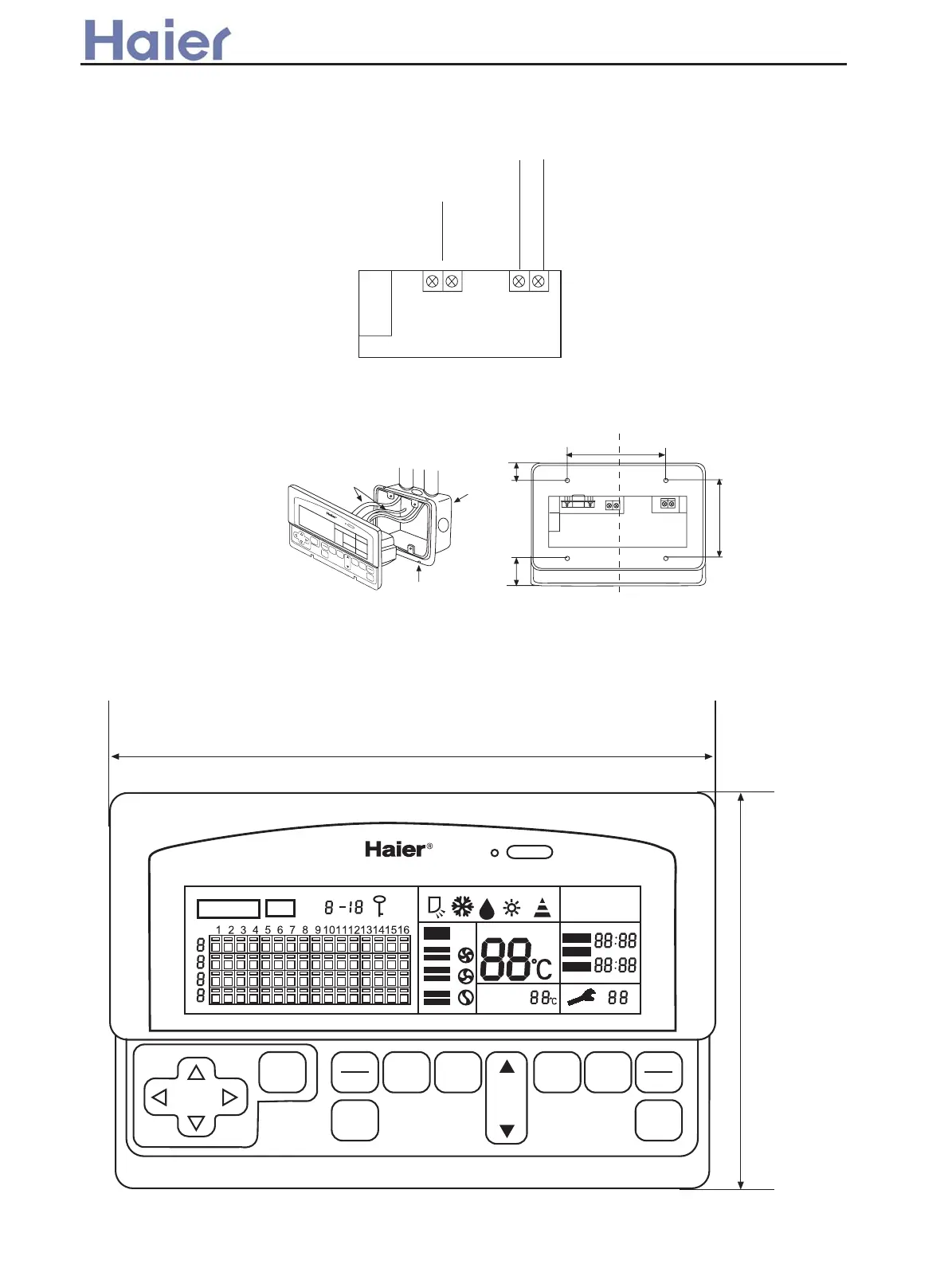

Installation procedure
1. Wire connecting
RS - 232
AB
Power supply
To connect the process
control monitor/
detector
To connect the
computer or MODEM
2. Installation method
A wiring box cover must be used.
The central controller shall be installed into the installation box built in the wall fastening with 4 screws (as shown).
Note: Please confirm the supply voltage of AC220-240V and correct wiring. In application environment with intense
electromagnetic interference, the central controller should be shielded, while the connecting wire between the monitor
and the central controller should be shielded twin twisted wire.
RS - 485
Total on/Total off
SELECT
ON
OFF
MODE
FAN
TEMP.
TIME
TIME
TIMER
CENTER
CONTROL
CONFIRM
LOCK
91.5mm
15mm19mm
86mm
Rear view
Central Controller
To Next Page
