SERVICE MANUAL
Model: HF50CW10W
9
Issue 2014-1-24
Rev.
Ref1401S002V0
Chapter 4 Disassembly

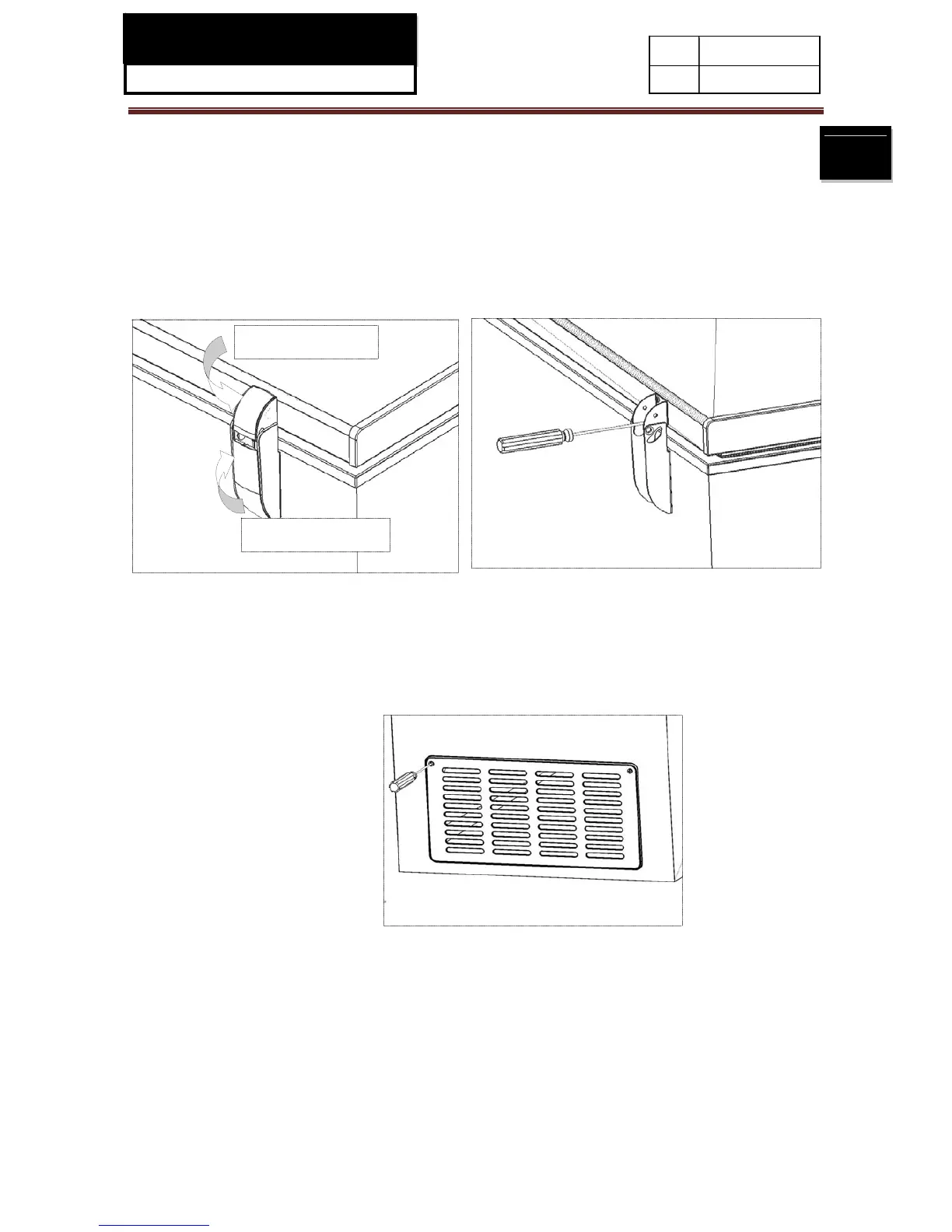

4-1. Door assembly (Door, hinge, hinge cover)
Unscrew the hinge cover screw with screwdriver, take away the top and bottom cover by pull it, and
then unscrew the screws on the hinge, so the whole hinge could be moved.
4-2. Compartment Grill assembly
Unscrew the two screw of grill; we can take away the grill.
4-3. Control panel assembly (Panel, cover board, knob, indicator light)
Unscrew the compartment grill (refer 4-2), push the panel claw gently with our finger or tools, at the
same time pull panel outside then take away it.
Top hinge cover
Bottom hinge cover
