SERVICE MANUAL
Model: HFD647AS/HB21TSSAA
29

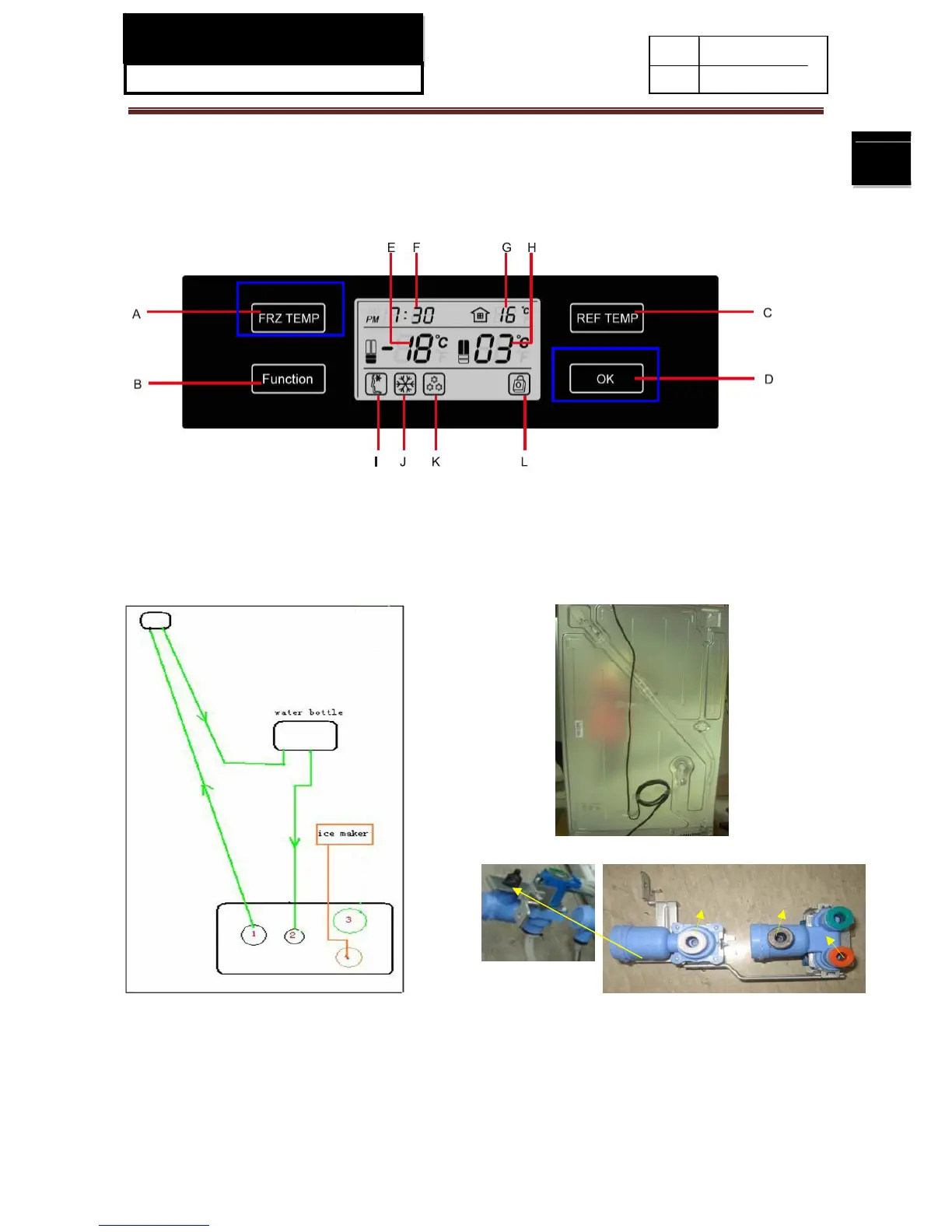

Under Locked st ate, hold and press both FRZ TEMP setting button (A) and OK button (D) for 3
seconds, with a buzzer , the products will enter error codes display mode. The same as above
operation can recover to normal disp lay st atus. If no manually operation, it will recover to normal
display status after 1 minute.
Chapter 8 Water Line Map (HFD647A*)
8-1. The water line sketch map
Connection the water pipes for the ice maker:
1. Connect tap water to the inlet A of the main valve
2. Connect the outlet B of the main valve to the water filter then connect the pipe to the water bottle.
3. The water that is chilled in the wate r bottle flows to the inlet C of the distributor , and then enters
into pipe D through the icemaker valve to supply water to the icemaker;
B
D
C
A
B
C
To Next Page
