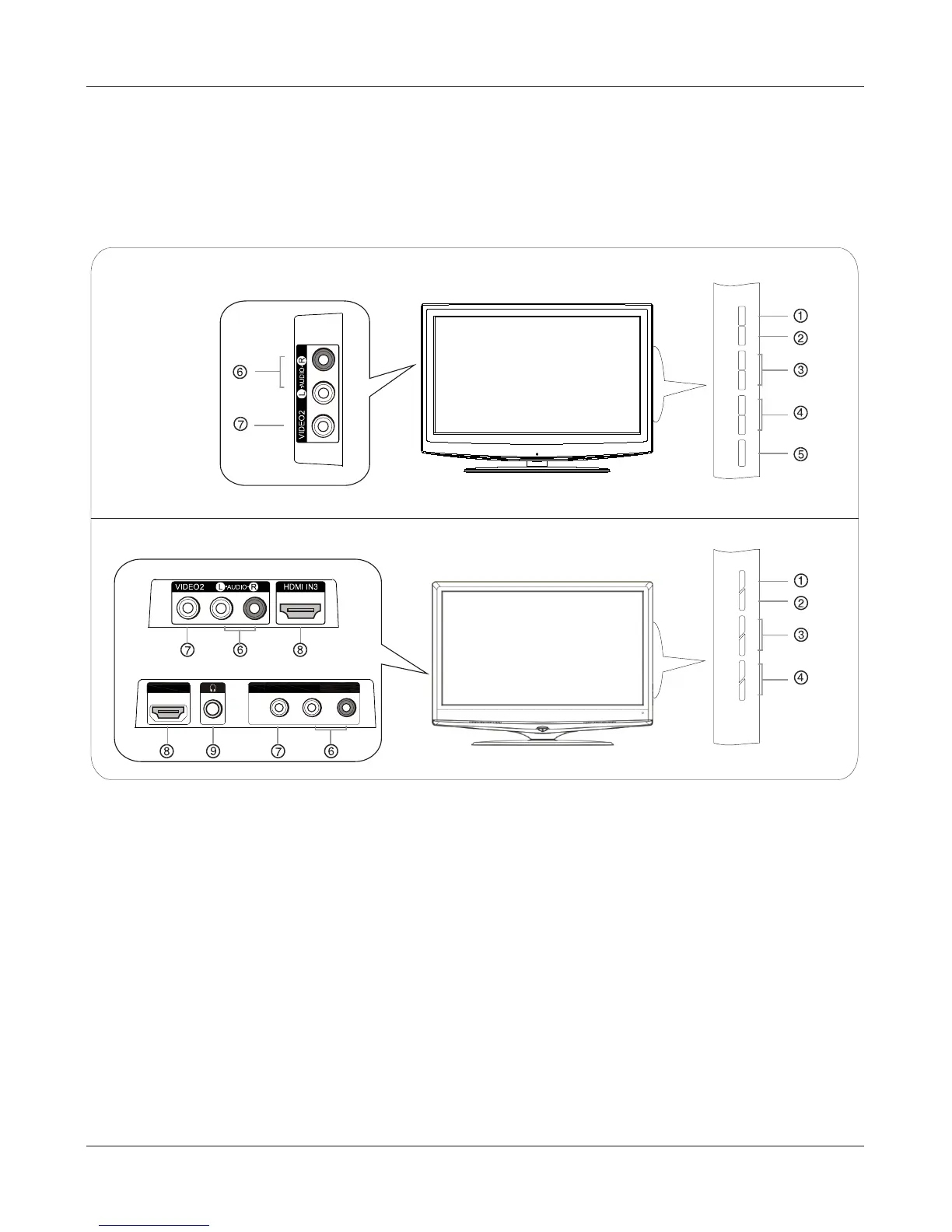

Front panel controls
This is a simplified representation of front panel.
Here shown may be somewhat different from your TV.
Introduction
6 TV LCD-TFT
Controls
1.MENU: Press to show the on-screen menu.
2.INPUT: Press to show the input source mode. In the MENU/INPUT screen, these buttons serve as OK
button.
3.VOL -/+: Press to adjust the volume .In the MENU screen, these buttons serve as left/right buttons.
4.CH -/+ : Press to scan through channels. To scan quickly through channels, press and hold down
either +/- . In the MENU screen, these buttons serve as up/down buttons.
5.POWER: Press to turn on and off the TV.
6.
7.
8.HDMI3 IN: Connect a signal to HDMI.
9.Headphone jack : Headphone audio output terminal.
AV2 AUDIO IN: Connect to hear stereo sound from an external device.
AV2 VIDEO IN: Connects the video signal from a video device.
from an external device
MENU INPUT VOL+ VOL- CH+ CH- POWER MENU INPUT VOL+ VOL- CH+ CH-
HL26R,HL32R,HL40R,HL42R
HL37T,HL42T,HL47T,HL52T
L - AUDIO - RL - AUDIO - R
HDMI3 INHDMI3 IN
VIDEO2 INVIDEO2 IN
VIDEOVIDEO
HL42T,HL47T
HL37T,HL52T
