42 LCD TV Haier HL42XD1
32

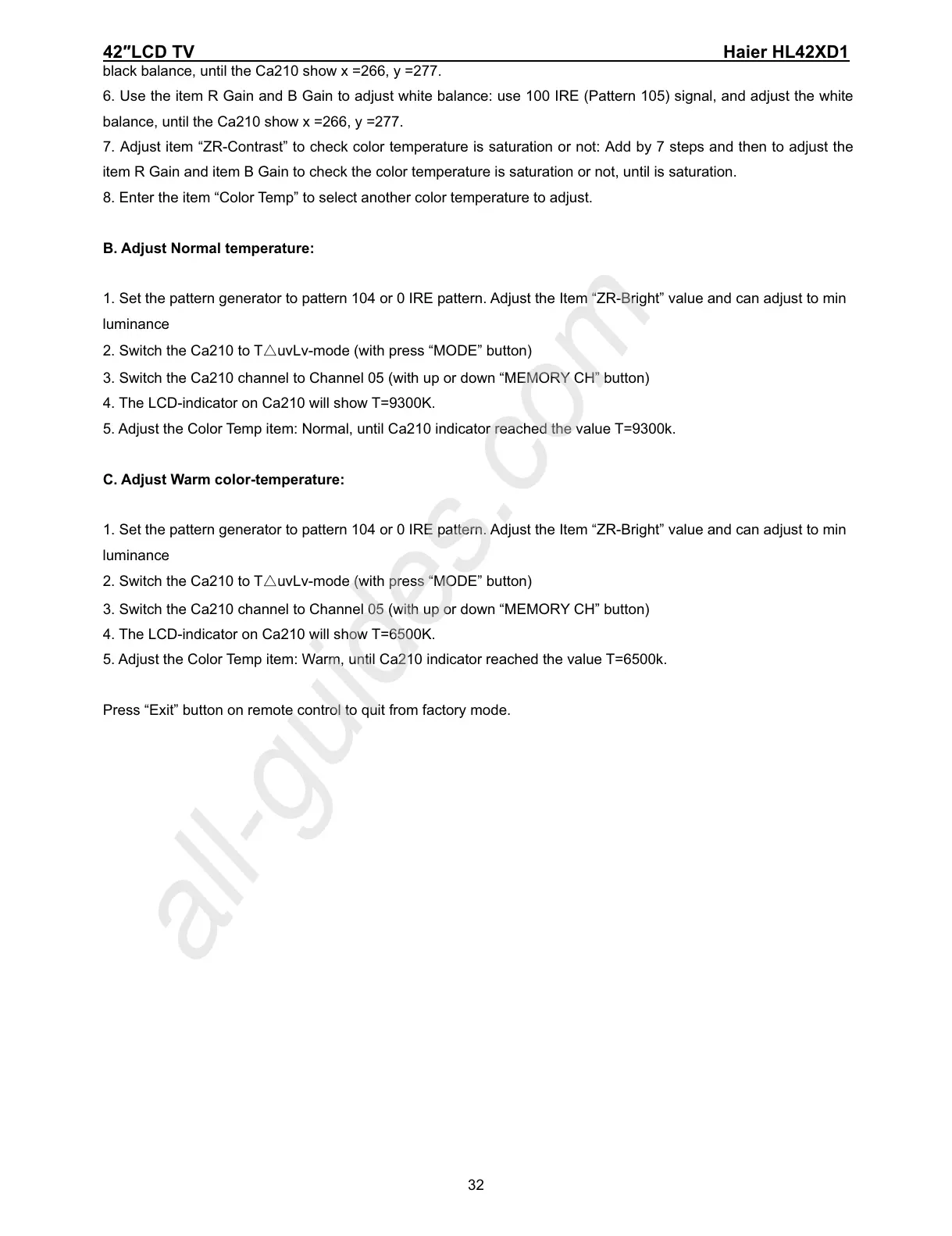

black balance, until the Ca210 show x =266, y =277.
6. Use the item R Gain and B Gain to adjust white balance: use 100 IRE (Pattern 105) signal, and adjust the white
balance, until the Ca210 show x =266, y =277.
7. Adjust item “ZR-Contrast” to check color temperature is saturation or not: Add by 7 steps and then to adjust the
item R Gain and item B Gain to check the color temperature is saturation or not, until is saturation.
8. Enter the item “Color Temp” to select another color temperature to adjust.
B. Adjust Normal temperature:
1. Set the pattern generator to pattern 104 or 0 IRE pattern. Adjust the Item “ZR-Bright” value and can adjust to min
luminance
2. Switch the Ca210 to TƸuvLv-mode (with press “MODE” button)
3. Switch the Ca210 channel to Channel 05 (with up or down “MEMORY CH” button)
4. The LCD-indicator on Ca210 will show T=9300K.
5. Adjust the Color Temp item: Normal, until Ca210 indicator reached the value T=9300k.
C. Adjust Warm color-temperature:
1. Set the pattern generator to pattern 104 or 0 IRE pattern. Adjust the Item “ZR-Bright” value and can adjust to min
luminance
2. Switch the Ca210 to TƸuvLv-mode (with press “MODE” button)
3. Switch the Ca210 channel to Channel 05 (with up or down “MEMORY CH” button)
4. The LCD-indicator on Ca210 will show T=6500K.
5. Adjust the Color Temp item: Warm, until Ca210 indicator reached the value T=6500k.
Press “Exit” button on remote control to quit from factory mode.
