VIDEO
L- - R
S-VIDEO
VGA
VGA AUDIO
Y
Y
Pb
Pb
Pr
Pr
L-AUDIO-R
L-AUDIO- R L-AUDIO- R
L-AUDIO- R
L-AUDIO- R
VIDEO
2
2
1
1 1
HDMI IN VGA IN
COMPONENT IN
OPTICAL
OUT
AV OUT VIDEO IN
ANT IN
DVI
AUDIO
22
11
11 11
YY
PbPb
PrPr
LL
RR
LL LL
RR RR
VIDEOVIDEO VIDEOVIDEO
S-VIDEOS-VIDEO
VGAVGA
VGA AUDIOVGA AUDIO
AUDIOAUDIO AUDIOAUDIO
LL
RR
DVI AUDIODVI AUDIO
AUDIOAUDIO
22
LL
RR
AUDIOAUDIO
COMPONENT INCOMPONENT IN
VIDEO INVIDEO IN
11
AV OUTAV OUT
VGA INVGA IN
HDMI INHDMI IN
ANT INANT IN
OPTICAL OUTOPTICAL OUT

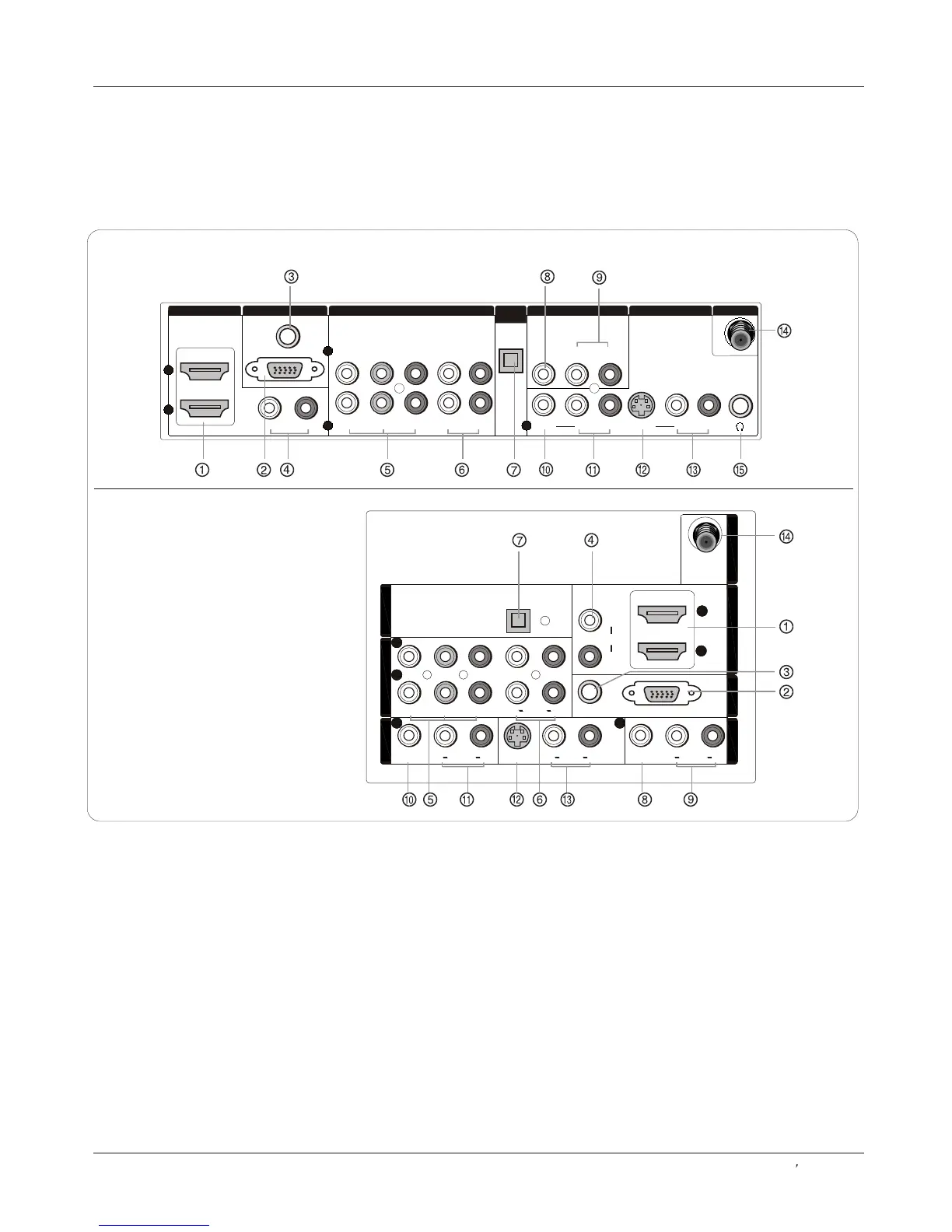

Back panel controls
Introduction
Owner s Manual 7
Connection Options
1.HDM IN: Connect an HDMI signal to this jack.
2.VGA Video IN: Connect a video cable from a computer to this jack.
3.VGA Audio IN: Connect the audio L/R cables from a computer to this jack.
4.DVI Audio IN: Connect the audio L/R cables from a digital video source to these jacks.
5.DVD/DTV IN(Component ): Connect a component video device to these jacks.
6.AUDIO IN(Component ): Connect the audio L/R cables from the component video signal source to these jacks.
7.Digital Audio Output: Connect digital audio to an external device.
NOTE: In standby mode, these ports will not work.
8.VIDEO Out: Connect the second TV or monitor to the TV`s AV OUT.
9.AUDIO Out: Connect the audio L/R cables to the second TV`s AV IN.
10.VIDEO IN: Connects the composite video cable from an external signal source to this jack.
11. AUDIO IN: Connect the audio L/R cables from the video signal source to these jacks.
12.S-VIDEO IN: Connect the S-Video cable from an external signal source to this jacks.
13.AUDIO IN: Connect the audio L/R cables from the S-Video signal source to these jacks.
14.Antenna IN: Connect cable or antenna signals to the TV, either directly or through your cable box.
15.Headphone jack : Headphone audio output terminal.
HL26R,HL32R,HL40R,HL42R,HL42T,HL47T
HL37T,HL52T
