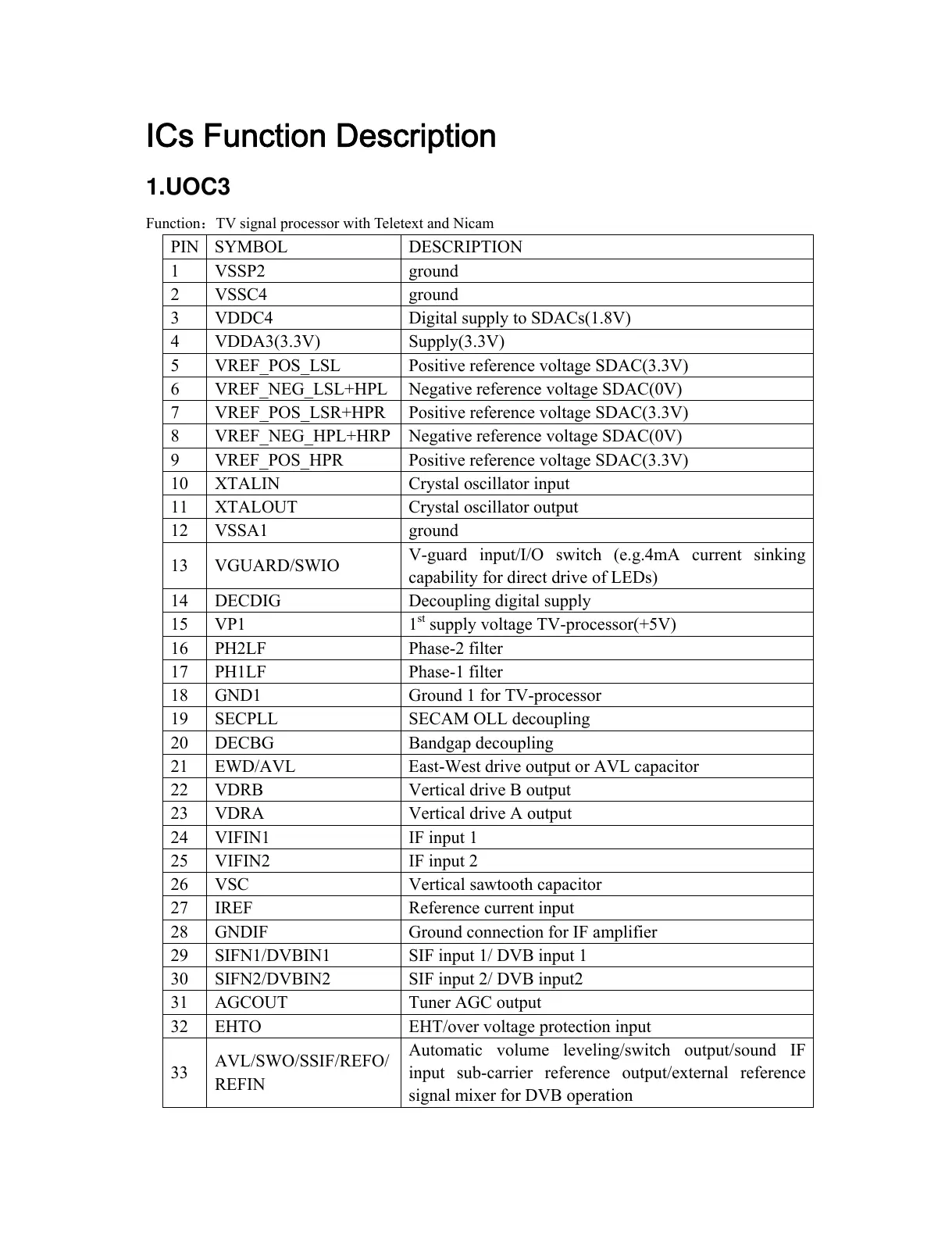

ICs Function Description
1.UOC3
Function：TV signal processor with Teletext and Nicam
PIN SYMBOL DESCRIPTION
1 VSSP2 ground
2 VSSC4 ground
3 VDDC4 Digital supply to SDACs(1.8V)
4 VDDA3(3.3V) Supply(3.3V)
5 VREF_POS_LSL Positive reference voltage SDAC(3.3V)
6 VREF_NEG_LSL+HPL Negative reference voltage SDAC(0V)
7 VREF_POS_LSR+HPR Positive reference voltage SDAC(3.3V)
8 VREF_NEG_HPL+HRP Negative reference voltage SDAC(0V)
9 VREF_POS_HPR Positive reference voltage SDAC(3.3V)
10 XTALIN Crystal oscillator input
11 XTALOUT Crystal oscillator output
12 VSSA1 ground
13 VGUARD/SWIO
V-guard input/I/O switch (e.g.4mA current sinking
capability for direct drive of LEDs)
14 DECDIG Decoupling digital supply
15 VP1 1
st
supply voltage TV-processor(+5V)
16 PH2LF Phase-2 filter
17 PH1LF Phase-1 filter
18 GND1 Ground 1 for TV-processor
19 SECPLL SECAM OLL decoupling
20 DECBG Bandgap decoupling
21 EWD/AVL East-West drive output or AVL capacitor
22 VDRB Vertical drive B output
23 VDRA Vertical drive A output
24 VIFIN1 IF input 1
25 VIFIN2 IF input 2
26 VSC Vertical sawtooth capacitor
27 IREF Reference current input
28 GNDIF Ground connection for IF amplifier
29 SIFN1/DVBIN1 SIF input 1/ DVB input 1
30 SIFN2/DVBIN2 SIF input 2/ DVB input2
31 AGCOUT Tuner AGC output
32 EHTO EHT/over voltage protection input
33
AVL/SWO/SSIF/REFO/
REFIN
Automatic volume leveling/switch output/sound IF
input sub-carrier reference output/external reference
signal mixer for DVB operation
