Installation introduction

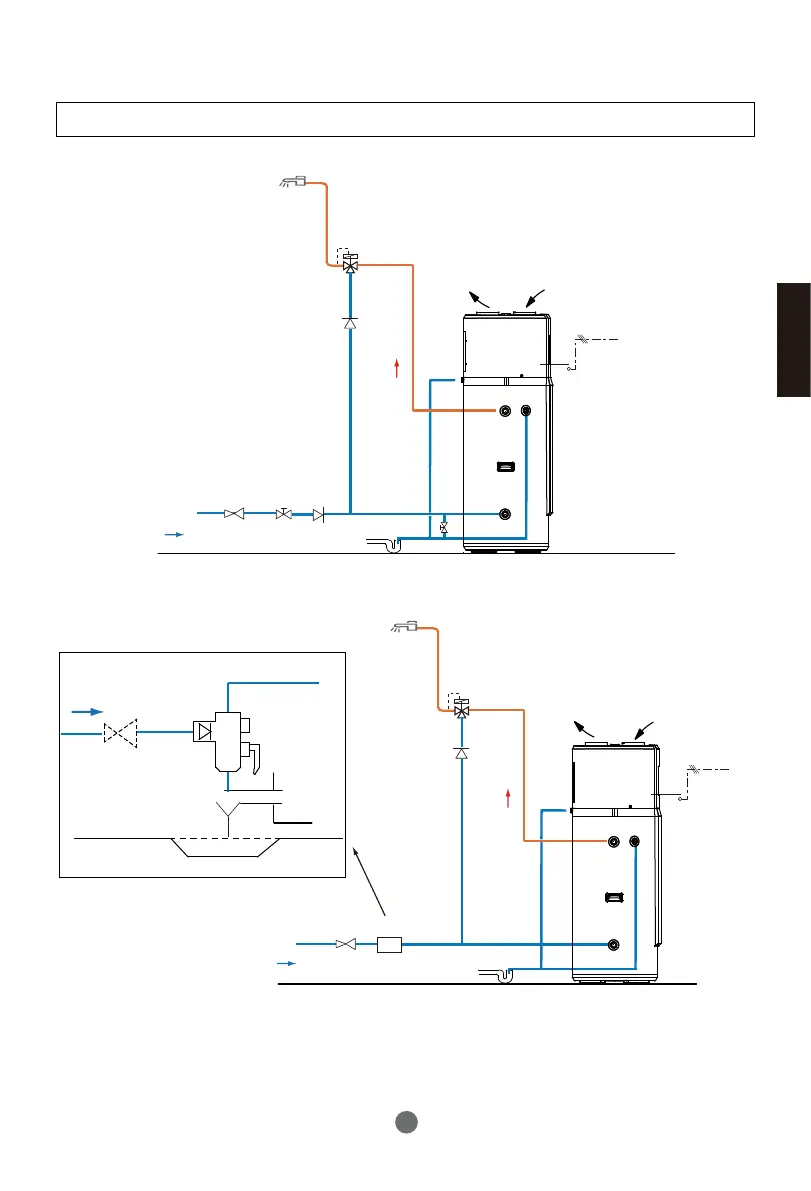

Pipeline installation diagram
Note:
Installation A
Installation B(for France only)
- Pressure relief valve, thermostatic valve, stop valve, check valve ,T&P valve and French
combination valve are not included in the accessories, please select proper fittings in
local market;
- Valves with NF/CE certification are recommended ;
English
Thermostatic
valve
Water outlet of
safety valve
Check valve
Outlet of
condensate
water
Hot water
outlet
Cold water inlet
Water outlet
Stop
valve
Pressure
relief valve
Check
valve
230V
50Hz

Connected to water inlet
of the water tank
Check
valve
Stop valve
Safety valve
Sewage drainage
outlet
Thermostatic
valve
Water outlet of
safety valve
Check
valve
Pressure relief valve Combination valve
Outlet of
condensate
water
Hot water
outlet
Cold water inlet
Water outlet
230V
50Hz
2CM
17
Drain valve
