IN DOOR

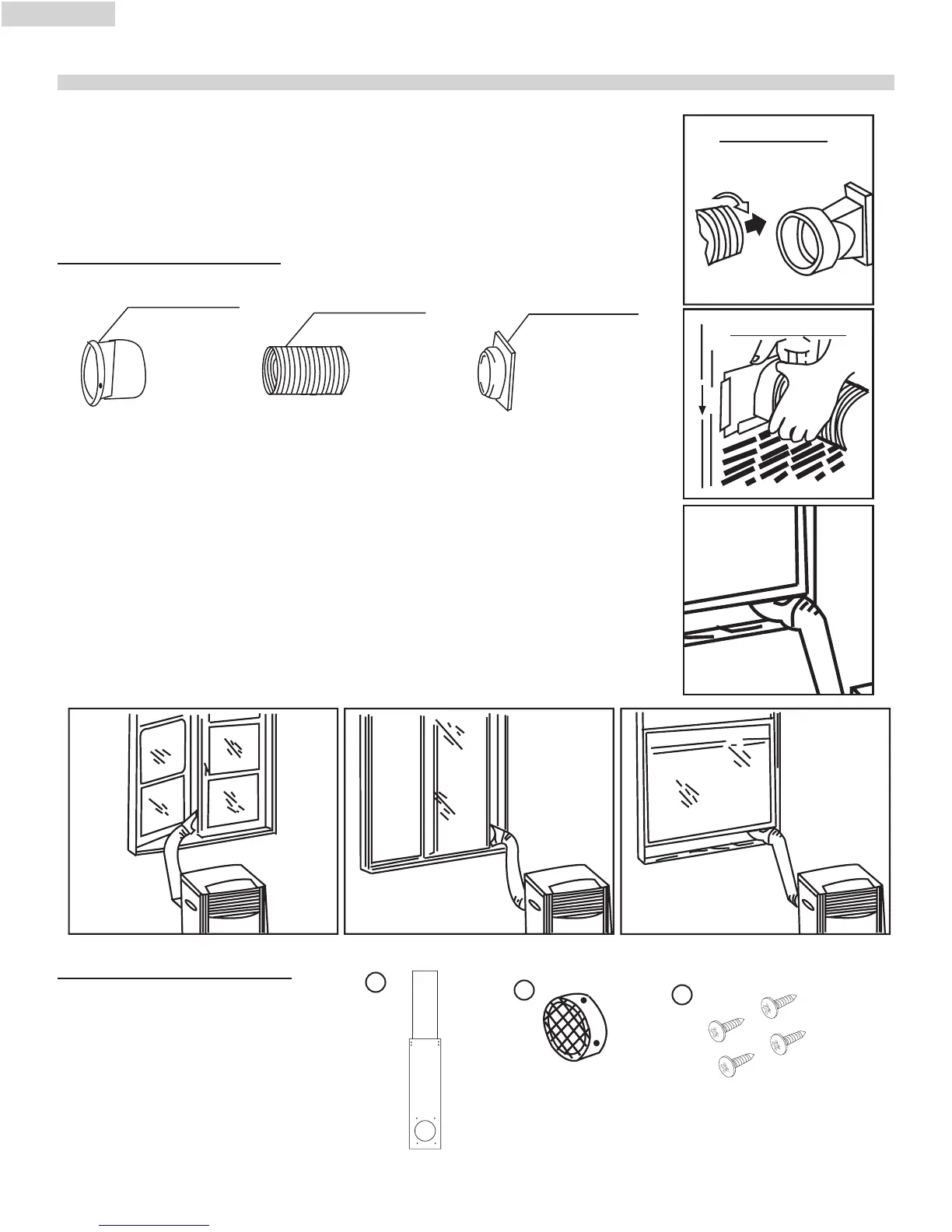

A. Connect exhaust hose to the back of the unit. Extend hose to desired
length and connect with window kit.
USING
EXHAUST DUCT SET
1. Insert ends of Exhaust hose into air outlet nozzle and Exhaust duct “A”
by twisting until it stops.
2. Fix the Exhaust duct “A” to the exhaust outlet on the rear of the unit.
This is achieved by sliding the appropriate connector downwards over
the exhaust outlet ensuring that the lugs on the outlet are engaged with
the grooves on the connector.
3. Extend the Exhaust hose and close the Window as far as possible
trapping the air outlet nozzle.
IN DOOR
IN DOOR
IN DOOR
USING WINDOW PANEL KIT
1. Plastic panel - 1 piece
2. Nozzle Fitting - 1 piece
3. Screws - 4 pieces
1
2
3
To Next Page
