SERVICE MANUAL
Model: HRF-521DS6
7
Issue 2016-09-07
REF. Ref 1609S025V0.
Chapter3 Disassembly and Installation
Note: Unplug the power cord from the outlet when demount the refrigerator.

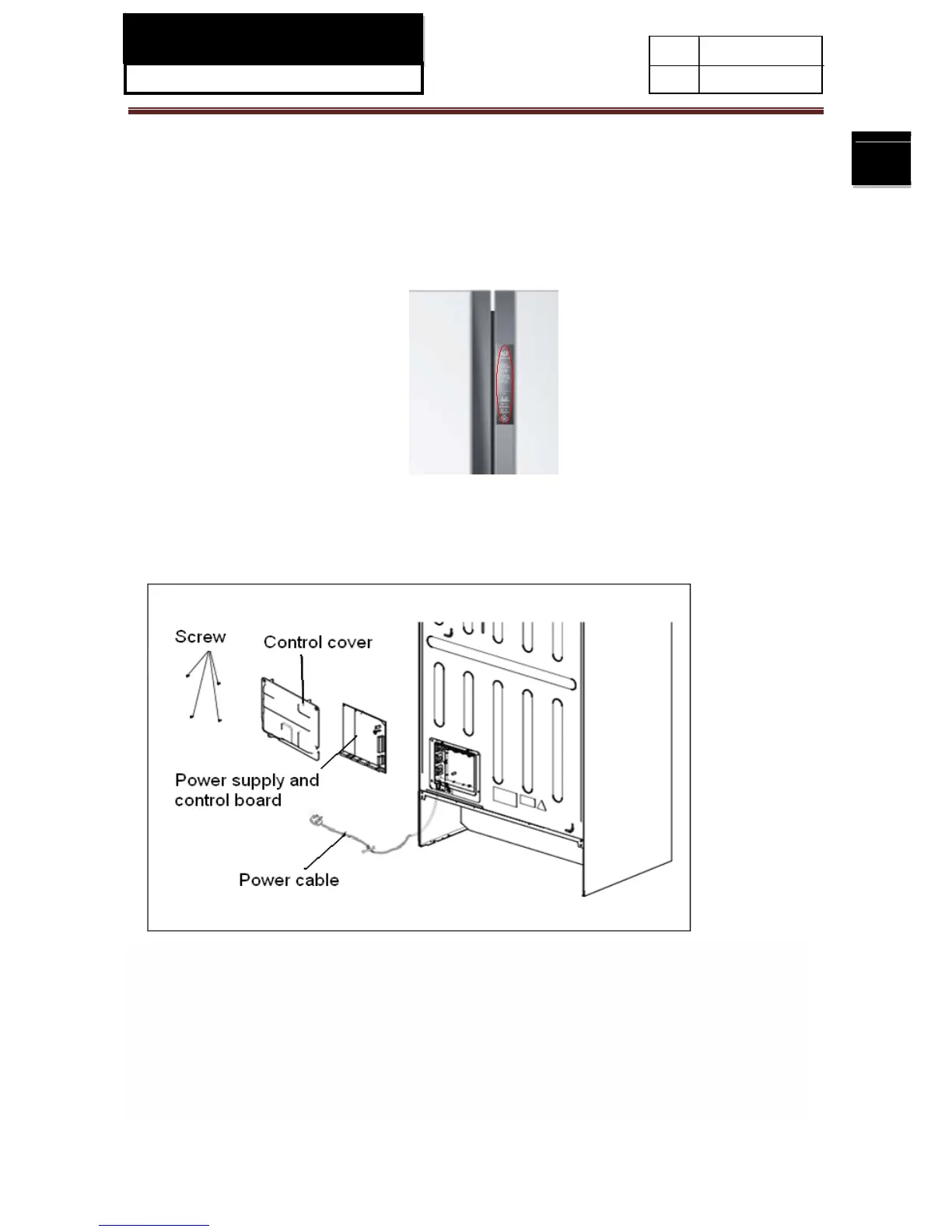

3-1. Display panel Disassembly
You can aspirate the display panel by using vacuum suction nozzle.
Note: you need to use vacuum suction nozzle in the red zone.
3-2. Main Control Board and Power Cable Disassembly
Non professionals do not remove the main control board (including open the control box)
1 Check the power supply cable and ensure power off to disassemble.
2 open the main control box by using a plum screwdriver, then you can see all the refrigerator control
board.
3 pull cable plug off on the refrigerator main control board.
4 replace the damaged main control board.
1. Remove the control board and power cable like picture
