SERVICE MANUAL
Model: HRF-521DS6
8
Issue 2016-09-07
REF. Ref 1609S025V0.
5 cover the main control box, then fixed well with screw.
(Note: when you pull off the cable plug on the main control panel, you should press on the plug buckle)

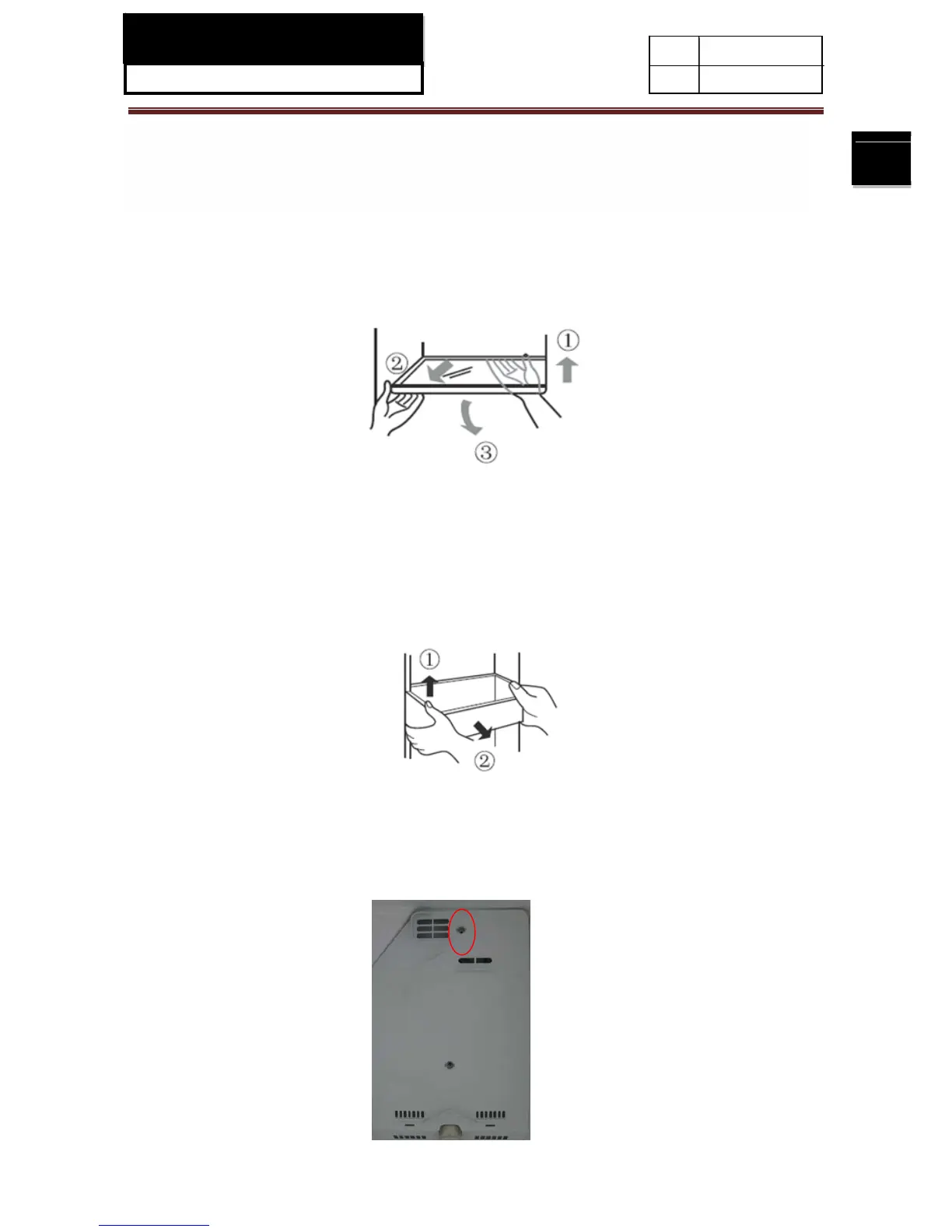

3-3 .Removing Shelf to Clean
Lift the front of shelf according to the direction of ①, then pull out the shelf according to the direction of ②，
and at the same time rotate the shelf to get it out completely according to the direction of ③.
3-4.Adjust Bottle and clean
1 Lift up the bottle according to the direction of ①, then seize bottle`s both sides to pull out according to the
direction of ②
2 You can install bottle according to the reserve operation after cleaning, or you can adjust the bottle`s
height according to the position of food.
3-5. Freezer air duct cover assembly and disassembly
1. First remove the screw cap on the freezer air duct cover (in the red zone), then take
out screw by using cross screwdriver.
