SERVICE MANUAL
Model: HRF328
\
368
19
Issue 2015-7-18
Rev.
Ref 1507S002V1

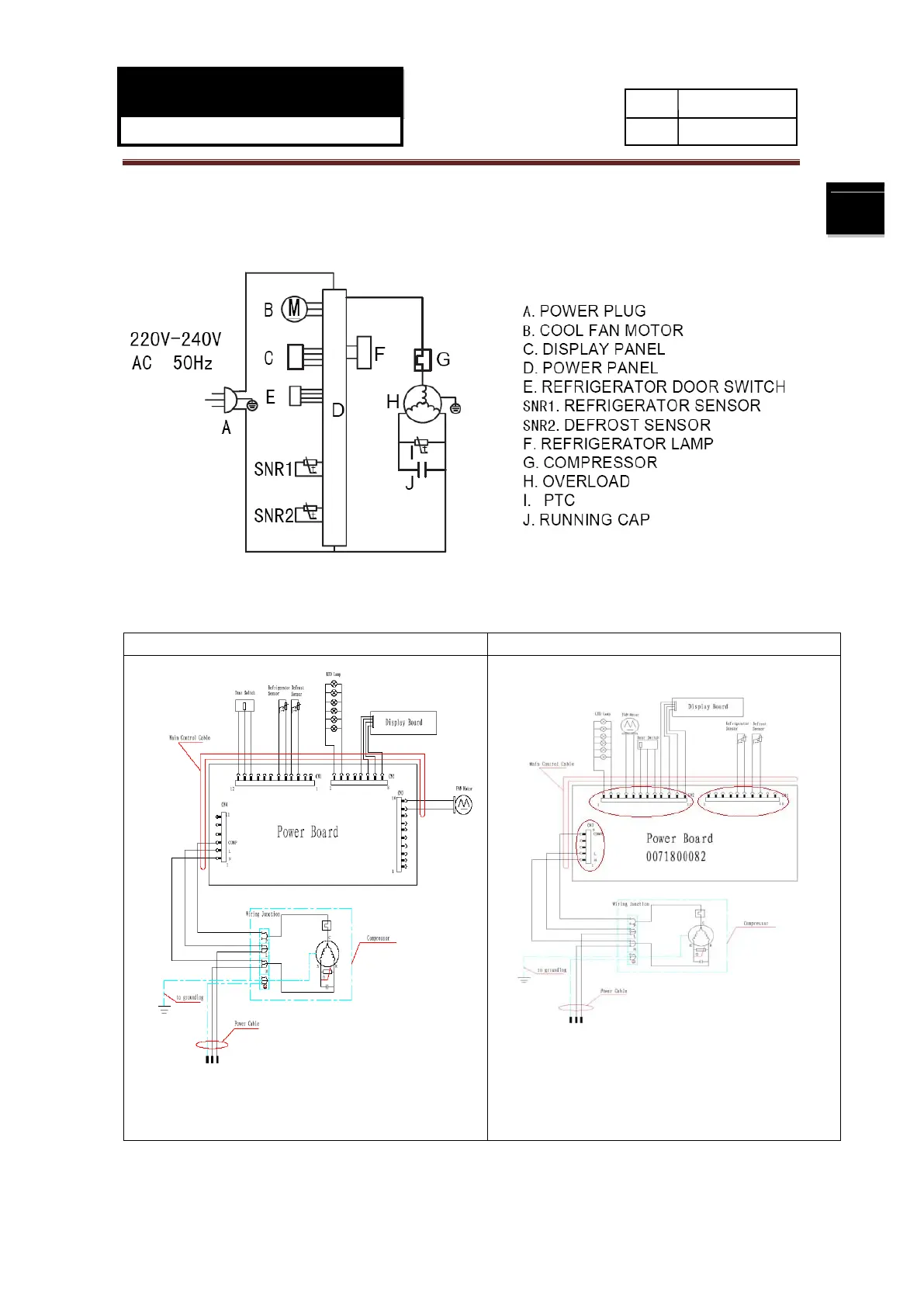

Chapter 7 Circuit diagram
7-1. Brief principle diagram
7-2. Wiring diagram and
main control board assembly
7-2-1 Wiring diagram
Before2015.05.01 After2015.05.01
Change part:
The power board(0071800082) connector (CN1,
CN2, CN3) changed, the port sequence of connector
as the diagram shown above.
