SERVICE MANUAL
①
②

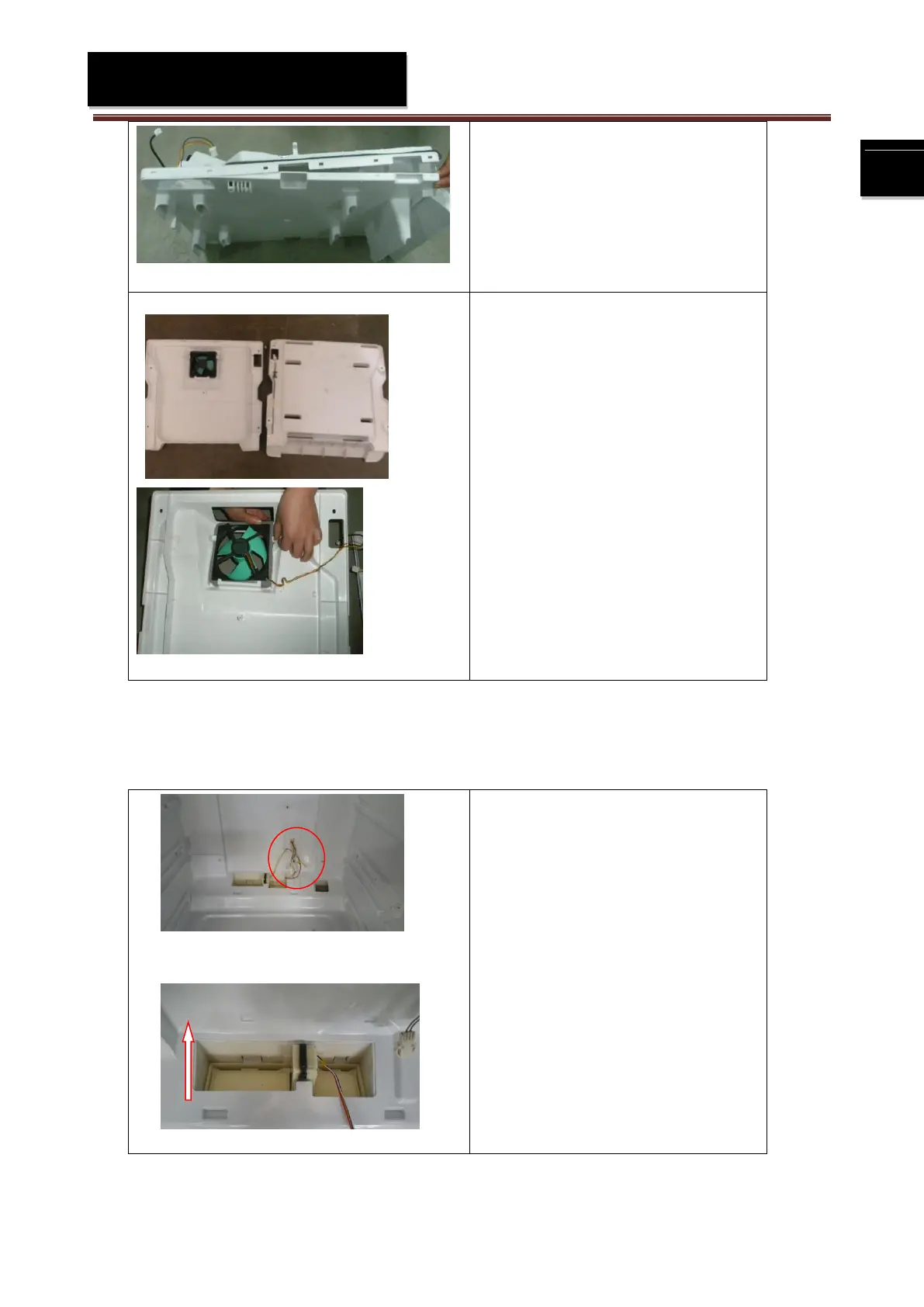

② Take the fan cable out. Unscrew
three bolts with a cross screwdriver.
Disassemble the freezer fan.
3-1-6 Disassembly of refrigerator air door
①
②
①Follow the methods in Figure 3-1-1
to disassemble the refrigerator air
duct. And pull out the terminal of
refrigerator air door as shown in the
figure;
② Follow the arrow direction in the
figure and slightly pull out the
refrigerator air door from top to bottom.
