Haier HRF520BS - Control Panel and Function Adjustment; Control Panel Display and Key Description

29
SERVICE MANUAL
7-1 Control and display panel

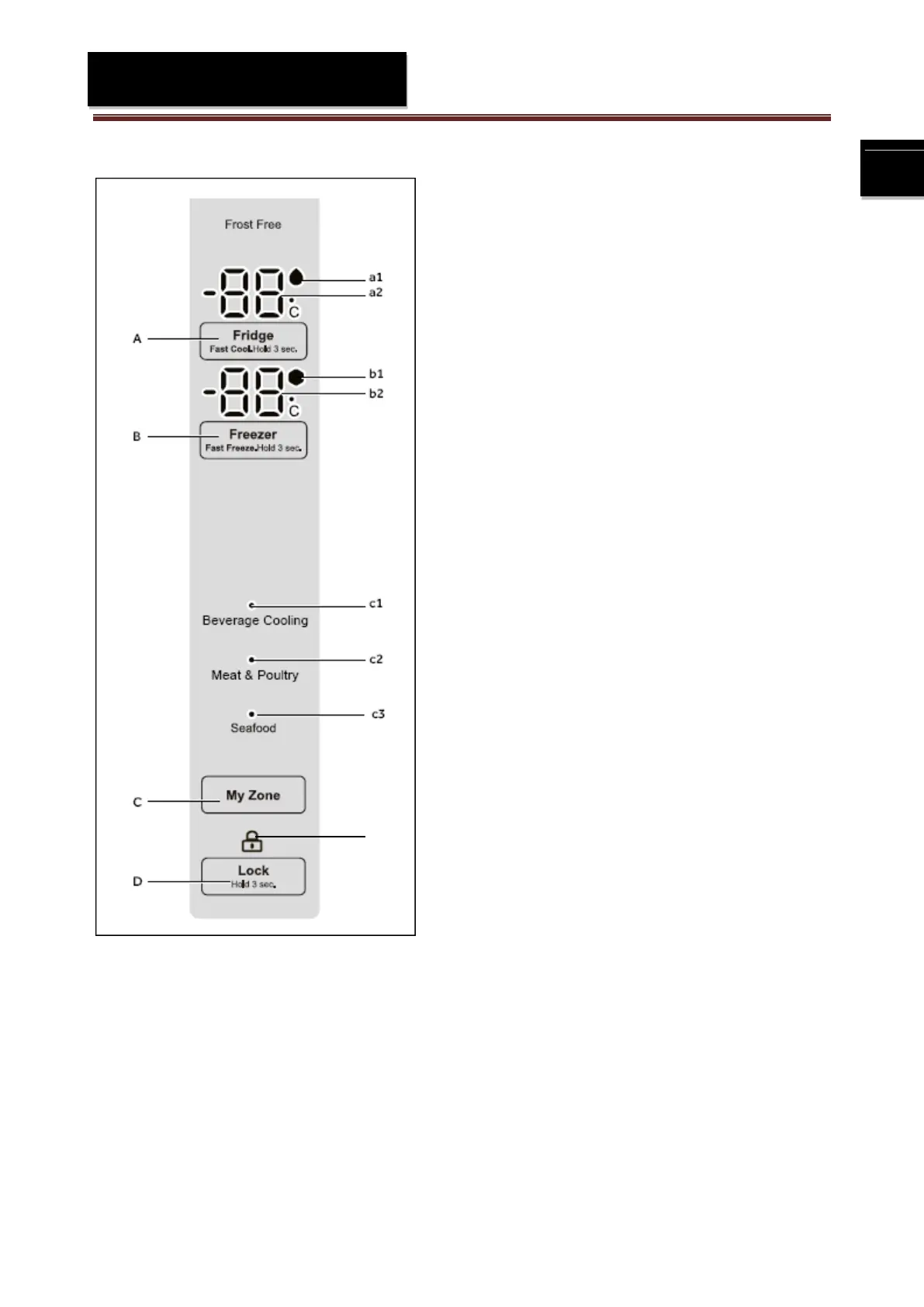

7.1.1 The control panel display part description：
a1：Quick cooling function display icon：
a2：PC temperature display icon
b1：Quick frozen function display icon
b2：FC temperature display icon
c1、c2、c3：my zone temperature display icon
d：lock function icon
7.1.2 Control panel key part description：
d
