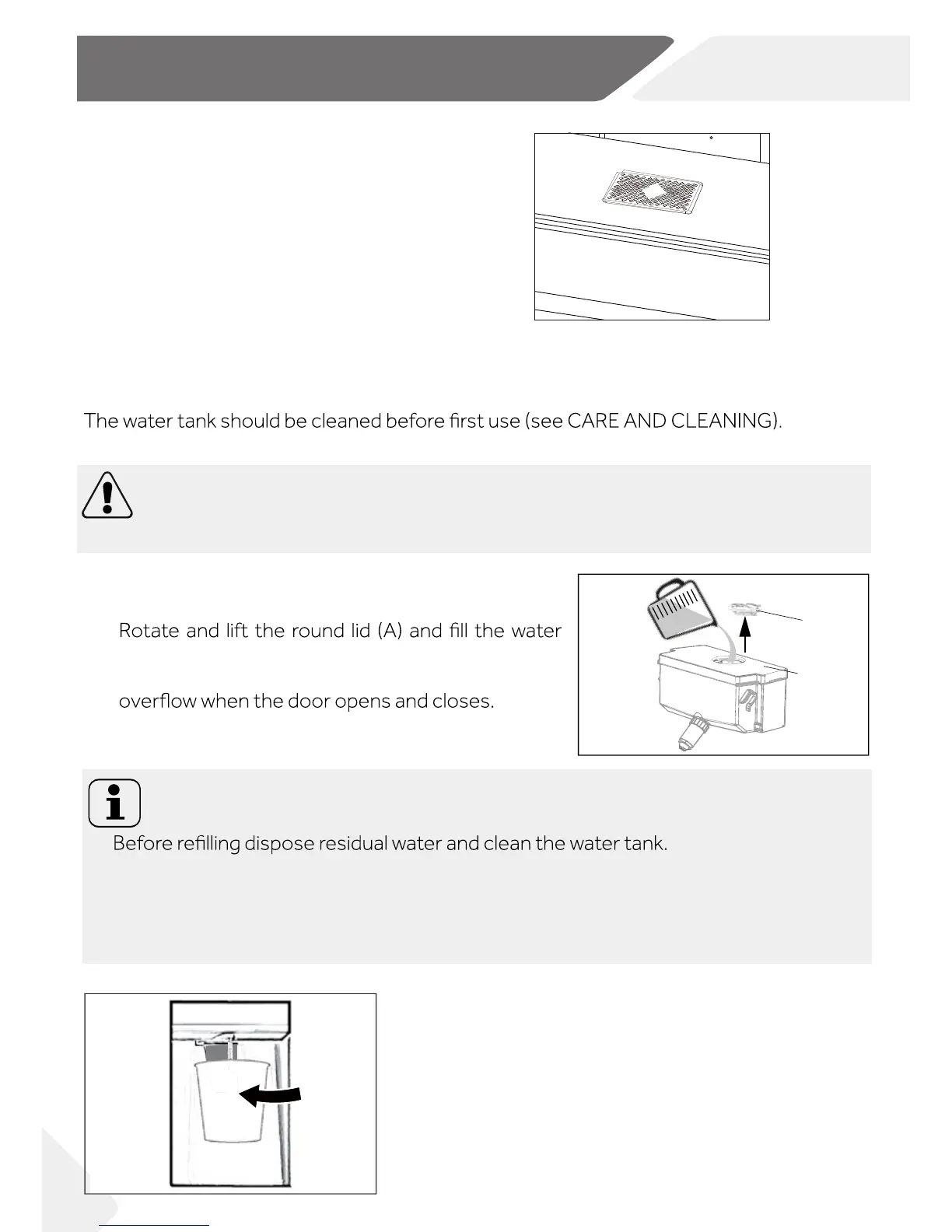

Water dispenser
(Only models with water dispenser)
With the water dispenser. drinking water can be conveniently stored in your tank.
WARNING!
Use drinking water only.
1. Ensure that the water tank is properly inserted
(see EQUIPMENT).
2.
tank up with fresh drinking water.
3. Fill water only up to the mark (2.5L); as it could
4. Close the round lid until it clicks into place.
A
C
Notice
▶
▶ When you don‘t need water for a long time, please empty the water tank and insert
the cleaned tank.
▶ The cover (C) on the water tank is additionally used to save energy. If you do not want
to use water from the water dispenser for a long period, please still install the cover
because of better insulating and saving energy.
Filling the water tan
k
Getting water from the dispenser
1. Place a glass underneath the water outlet.
2. Push gently against the water dispenser lever
with your glass.
Make sure the glass is in line with the dispenser to
prevent the water from splashing out.
WATER DISPENSER
The Fresh Storage drawer is suitable
to store fruits and vegetables. It has a
Humidity Control System (HCS) mo-
dule which automatically controls the
moisture above 85%. It can maintain
this level for several weeks.
HCS
2.5
Fresh storage drawer
