Cooling deviation to zero
Moisture removing deviation to level G
Heating deviation to level F
There will be no DASH operation under trial operation, emergency operation and
silent operation modes.

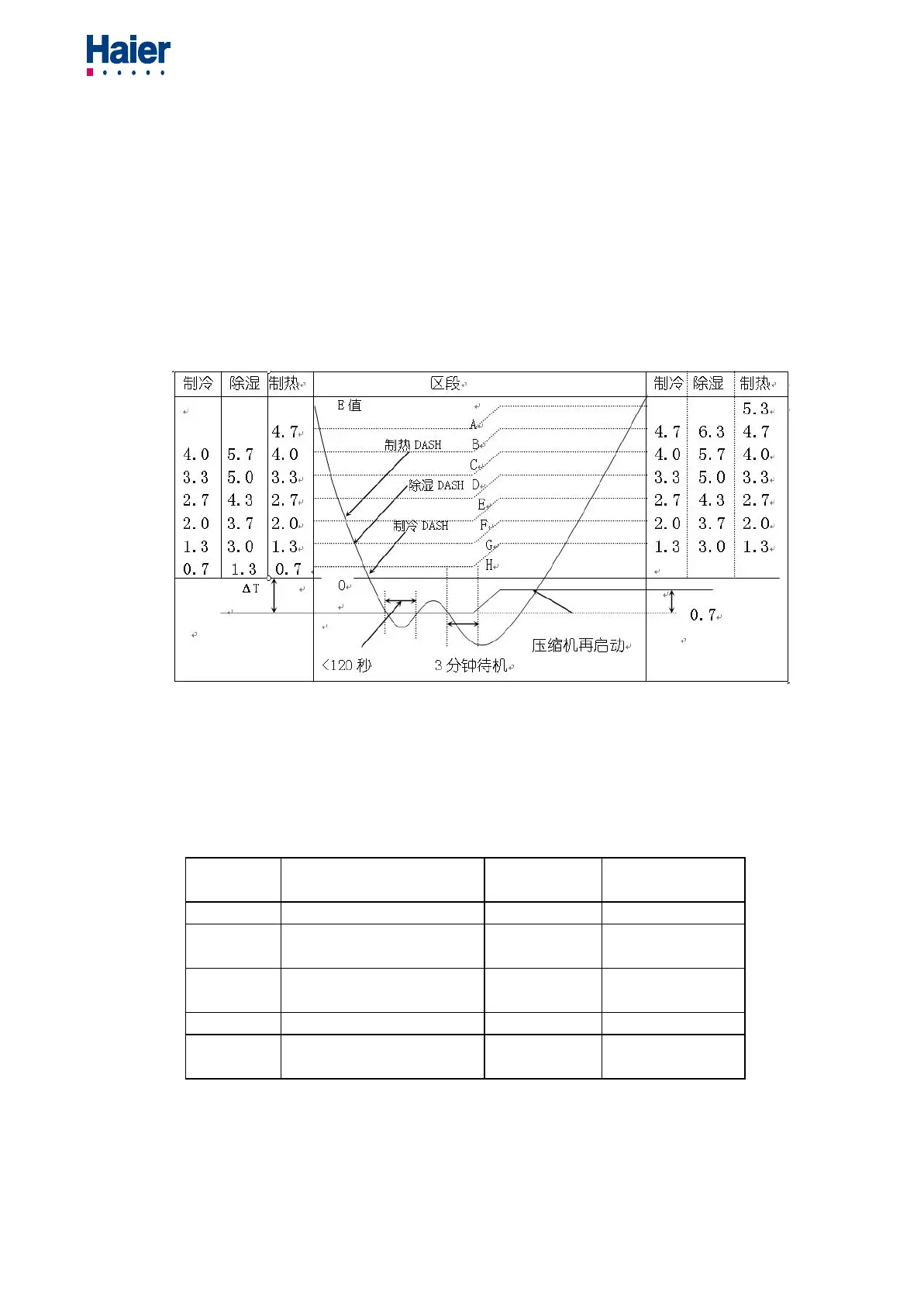

2.4.5 Temperature adjusting of different levels. (DASH operation conditions under
different modes)
cooling
制冷
/ moisture removing
除湿
/heating
制热
/level
区
段/ cooling
制冷
/
moisture removing
除湿
/heating
制热
/Value E E
值
/<120 seconds/ 3-minute idle
mode 3
分钟待机
/compressor resta`1rt
压缩机再启动
2.4.6 Frequencies for different levels
Within different levels, the indicated frequencies are(the frequency the indoor unit
transmits to the outdoor unit) as follows
；
Under the cooling & moisture-removing mode, level A and B have the same
frequency.
Under the silent mode, levels A-E have the same frequency with level F
Indicated frequency Frequency
range
Temperature
change level
Heating FQHOT [0—7] A—H
Silent
heating
FQSHOT [0—2] F—H
Moisture
removing
FQDRY [0—7] B—H
Cooling FQCOOL [0—7] B—H
Silent
cooling
FQSCOOL [0—2] F—H
