10-Installation
25
10.1 Preparation
▶ Take the appliance out of the packaging.
▶ Remove all packaging material including polystyrene base, keep them out of childrens
reach. While opening the package, water drops may be seen on plastic bag and port-
hole. This normal phenomenon results from water tests in the factory.

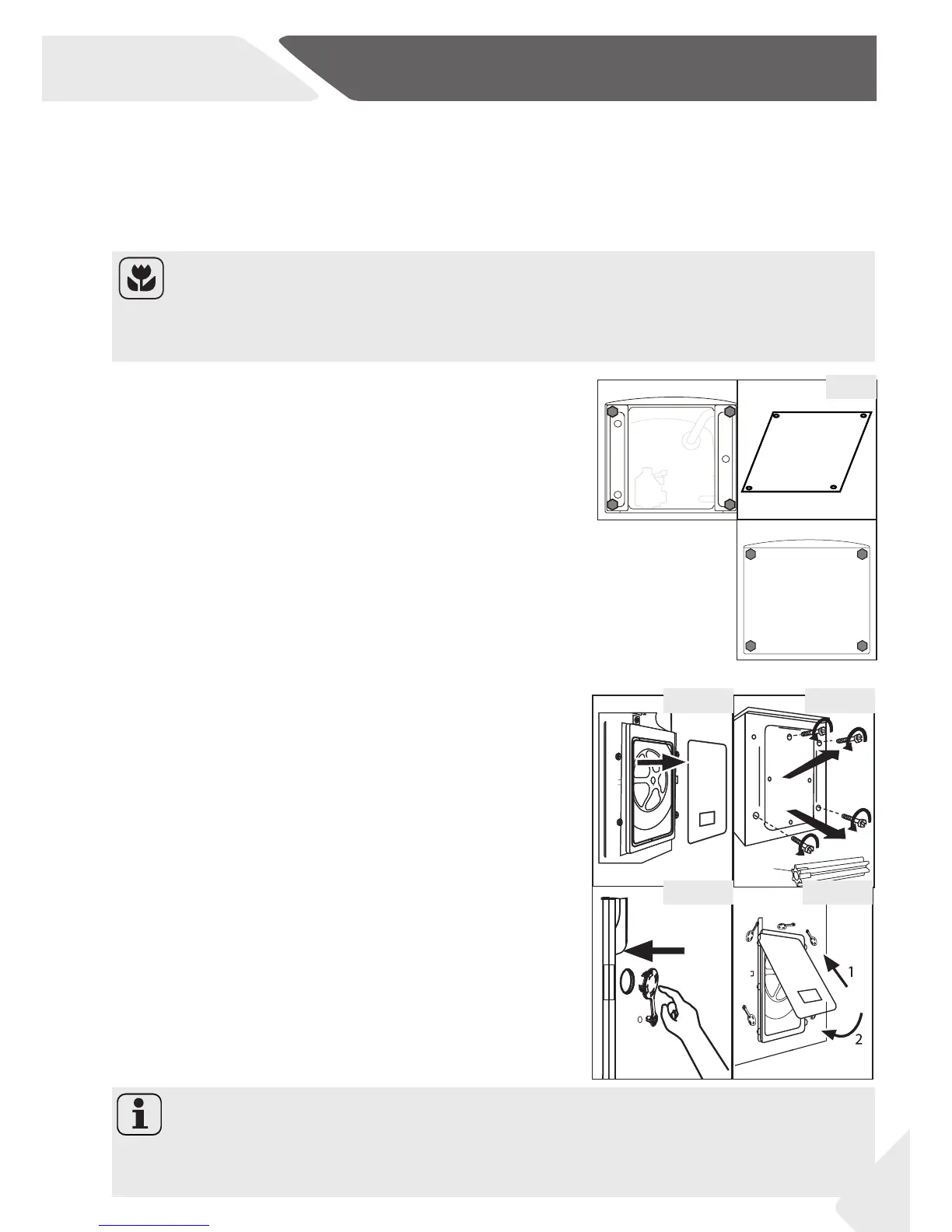

10.3 Dismantle the transportation bolts
The transportation bolts are designed for clamping
anti-vibration components inside the appliance during
transportation to prevent inner damage.
1. Remove the back cover (Fig. 10-3.1).
2. Remove all 4 bolts on the rear side and take out
plastic spacers (A) from inner side of the machine
(Fig. 10-3.2).
3. Replace back cover by inserting it in the two gaps
its convexity is facing out (Fig. 10-3.3).
4. Fill left holes with blanking plugs (Fig. 10-3.4).
A
10-3.1 10-3.2
10-3.4 10-3.3
Note: Packaging disposal
Keep all packaging materials out of children´s reach and dispose them in an environmen-
tally friendly manner.
10.2 Adjusting the bottom cover board
When opening the shrink package, you will nd a cal-
cium-plastic board (Fig. 10-2.1). The board is used for
reducing noise after covering the bottom of the cabi-
net.
1. Lay the washing machine down to its side, port-
hole pointing upwards, bottom side towards op-
erator and screw o the four bolts (Fig. 10-2.2).
2. Place the calcium-plastic board, screw the bolts
through the four holes on the board on to the tub
rmly (Fig. 10-2.3). Finally set the machine upright
again.
1
2
3
10-2
Note: Keep in safe place
Keep the transportation bolts in a safe place for later use. Whenever the appliance is to
be moved at rst reinstall the bolts.
